The list and figure below describe the key components, interfaces, and controls of the ESP-
EYE development board:
3D_PIFA Antenna
A 3D PIFA antenna is used for this module, The antenna gain is 2.98dBi.
ESP32 Chip
A 2.4 GHz Wi-Fi and Bluetooth combo chip
Crystal Oscillator
Provides an external clock for ESP32.
Espressif
Circuit Components

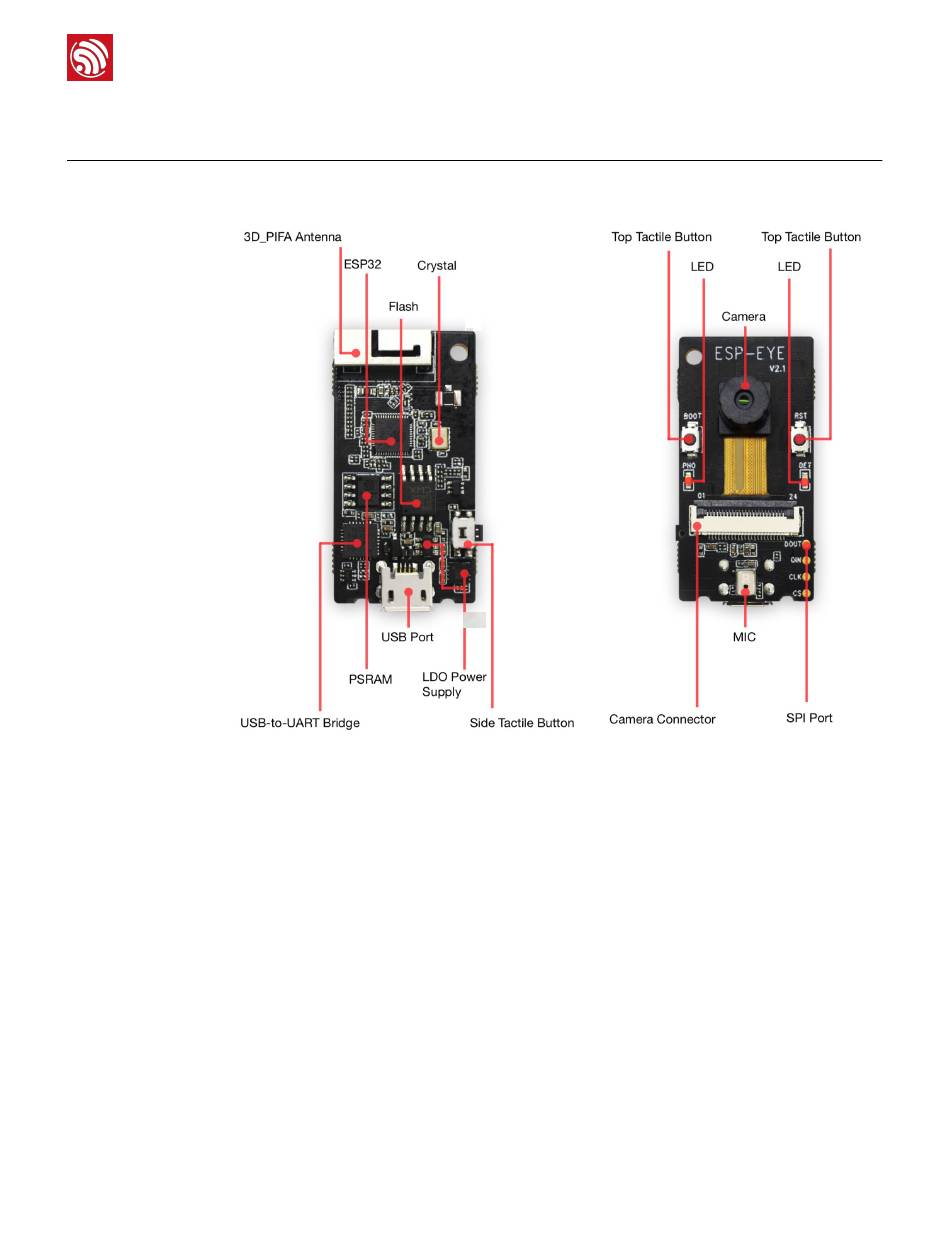

Figure 3-1. ESP-EYE Circuit components
2019.01
