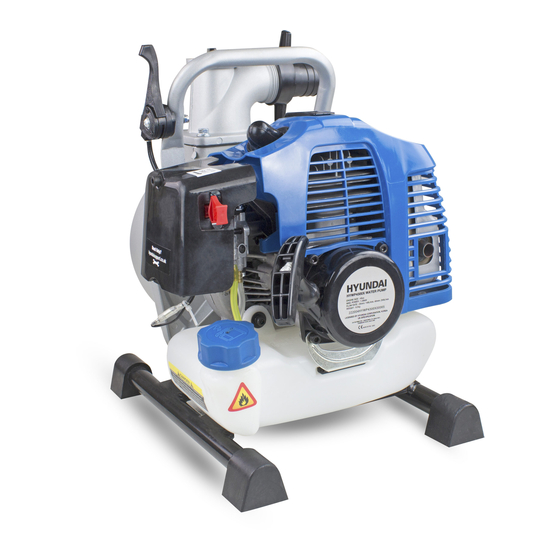

- Page 1 WATER PUMP HYWP4300X USER MANUAL...
- Page 2 Page 2...
-
Page 3: Table Of Contents
CONTENTS 1. SAFETY 4 – 7 2. PART LOCATIONS 3. FUEL 4. SETUP 10 – 11 5. OPERATION 12 – 13 6. MAINTENANCE 13 – 15 7. TROUBLESHOOTING 8. SPECIFICATION 9. STORAGE & TRANSPORTATION 10. CONTACT DETAILS / WARRANTY 11. DECLARATIONS of CONFORMITY Page 3... -
Page 4: Safety
SAFETY 1.1. The operator of the machines; 1.1.1. Responsible for and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. 1.1.2. Should never be left it in a condition which would allow an untrained or unauthorised person/s to operate this machine. - Page 5 1.2.4. To avoid Carbon Monoxide poisoning DO NOT Use Petrol/Diesel powered equipment inside a home or garage even if doors and windows are open. 1.2.5. If you think you or someone around you has been affected by Carbon Monoxide poisoning; •...
- Page 6 1.4.1.1. When defuelingalways use a propriety fuel retriever. 1.4.1.2. Always carry fuel in the correct and clearly marked container. 1.4.2. Additional safety. 1.4.2.1. Intended use is for pumping the water that is not intended for human consumption. Pumping flammable liquids, such as petrol or fuel oils, can result in a fire or explosion, causing serious injury.
- Page 7 1.4.3. Check the General Condition of the Pump 1.4.3.1. Look around and underneath the pump for signs of oil or gasoline leaks. 1.4.3.2. Remove any excessive dirt or debris, especially around the engine muffler, and recoil starter. 1.4.4. Look For Signs Of Damage 1.4.4.1.
-
Page 8: Part Locations
PART LOCATIONS 1 – Carrying handle 2 – Spark plug 3 – Air filter 4 – Choke lever 5 – Recoil handle 6 – Fuel tank 7 – Rubber mount 8 – Throttle 10 – Pump drain plug 9 – Rubber foot 11 –... -
Page 9: Fuel
FUEL Petrol is highly inflammable. Avoid smoking or bringing any source of ignition or naked flame near fuel, this includes tools which can cause sparks such as grinders and drills. Before re- fueling make sure the engine has been stopped and allowed to cool down. -
Page 10: Setup
SETUP 4.1. Pump placement. For best pump performance, place the pump near the water level, and 4.1.1. use hoses that are no longer than necessary. This will enable the pump to produce the greatest output with the least self-priming time. As head (pumping height) increases, pump output decreases. - Page 11 Hose clamp 4.3. Discharge hose installation. 4.3.1. Attach a hose and hose connector to the pump’s discharge port. It is best to use a short, large-diameter hose, because this will reduce fluid friction and improve pump performance. LayFlat hose can be used. 4.3.2.
-
Page 12: Operation
OPERATION DO NOT operate the pump in a dry state. Operating the pump dry will destroy the pump seal. If the pump has been operated dry, stop the engine immediately, and allow the pump to cool before priming. 5.1. Priming the pump. 5.1.1. -
Page 13: Maintenance
5.3. Setting engine speed. 5.3.1. After starting the engine, move the throttle lever (1) clockwise to the HIGH position (2) and check pump output. 5.3.2. Pump output is controlled by adjusting engine speed. Moving the throttle lever in the HIGH direction (2) will increase pump output, and moving the throttle lever (anti- clockwise) in the LOW direction (3) will decrease pump output. - Page 14 6.2. Air filter. Check the air filter monthly. 6.2.1. To remove filter, undo the hex-screw 6.2.2. with an Allen key to reveal filter element. Clean the element in warm 6.2.3. soapy water as necessary. Dry completely before installing. 6.2.4. You must clean more frequently if used under very dusty conditions.
-
Page 15: Troubleshooting
The use of any spark plug other than the one designated may result in the engine failing to run correctly becoming overheated and damaged. 6.4. Fuel filter. A clogged fuel filter can cause lack of power and poor pickup. 6.4.1. Remove thefuel cap (1) and empty the remainingfuel into an approved container. -
Page 16: Specification
SPECIFICATION Page 16... -
Page 17: Storage & Transportation
9. STORAGE & TRANSPORTATION If you do not follow these steps, deposit may arise in the carburettor. This will cause starting difficulties and may cause permanent damage. 9.1. Perform all the general maintenance that the maintenance section of your ‘User Manual’ is recommended. -
Page 18: Contact Details / Warranty
CONTACT DETAILS Genpower Limited, Isaac Way, Pembroke Dock, 10.1. Postal address Pembrokeshire,SA724RW,UK. +44 (0)1646 687880 10.2. Telephone 10.3. Email aftersales@hyundaipowerproducts.co.uk 10.4. Website www.hyundaipowerproducts.co.uk WARRANTY For warranty information, please visit www.hyundaipowerproducts.co.uk Proof of purchase will be required before you make a warranty claim. Page 18... -
Page 19: Declarations Of Conformity
Notified Body for EC Directive 2000/14/EC TÜV Rheinland (Shanghai) Co., Ltd. Product Details Brand : HYUNDAI Model : HYWP4300X Description : Petrol Water Pump Name and address of technical documentation holder and EU distributor: Genpower Ltd, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK. - Page 20 Importer: GENPOWER LTD Isaac Way, London Road Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 E: info@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk Imported/Distributed by GENPOWER LTD for The United Kingdom & Ireland Licensed by Hyundai Corporation, Korea...
