Summary of Contents for Eureka NEC380

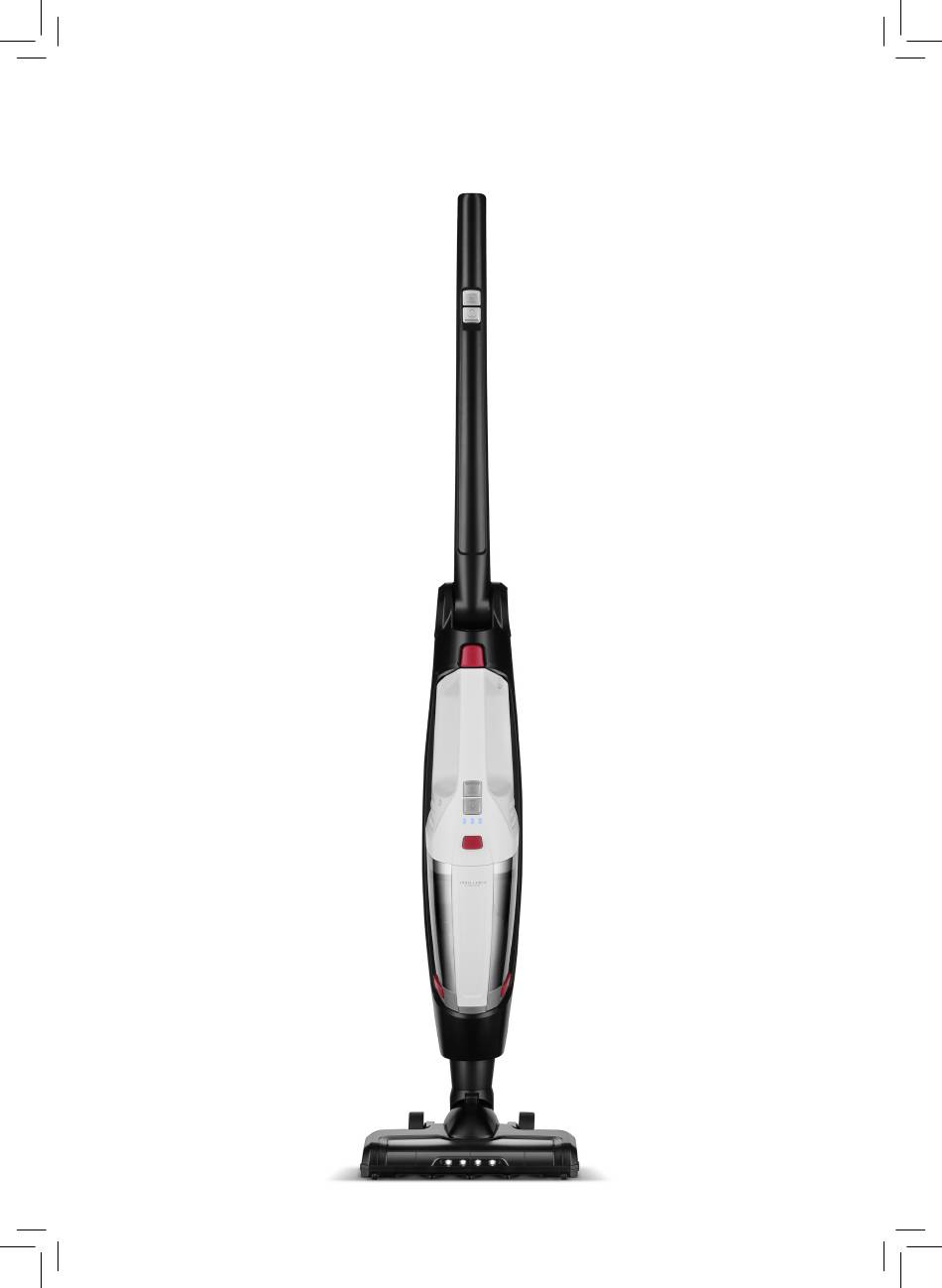

- Page 1 Instruction manual 2 in 1 Cordless vacuum cleaner...
-
Page 2: Important Safety Information
Instruction manual 2-in-1 Cordless vacuum cleaner Important safety information Thank you for purchasing this John Lewis 2-in-1 Cordless vacuum cleaner. Please read the instructions and warnings carefully to ensure a long life for your product and safe usage. This instruction leaflet must be retained with the product for future reference. - Page 3 Instruction manual 2-in-1 Cordless vacuum cleaner Please note that the illustrations in these operating instructions are intended as a guide to correct usage. Some details may deviate from the original product. Electrical safety Never use the appliance if it has been dropped or if any part of it is damaged.
- Page 4 Instruction manual 2-in-1 Cordless vacuum cleaner - Do not immerse the appliance, adapter or power cable in water or other liquids. - Before cleaning the appliance, ensure that it is switched off and disconnected from the mains. - Only charge the battery with the supplied adaptor with charging cable or the appliance’...
- Page 5 Instruction manual 2-in-1 Cordless vacuum cleaner - Do not allow the power brushes to run over cables. - Never insert any objects into the appliance’ s apertures. Do not use the appliance if an aperture is blocked. - Never use the appliance without the dust container and filter.
- Page 6 Instruction manual 2-in-1 Cordless vacuum cleaner CAUTION: Plastic wrapping and bags can be dangerous. To avoid danger of suffocation, keep them away from children and pets. WARNING! Failure to follow these instructions may lead to serious injury or death. CAUTION! Failure to follow these instructions may lead to injury.
-
Page 7: Approved Use
Instruction manual 2-in-1 Cordless vacuum cleaner Approved use Only use the appliance as described in the operating instructions, with its original accessories. All other uses are regarded as improper. The appliance is intended for home use only. It is not suitable for commercial or industrial use. -
Page 8: Parts List
Instruction manual 2-in-1 Cordless vacuum cleaner Parts list Main unit with attached handheld unit Battery Crevice nozzle Motorised power brush 2-in-1 combi brush Adaptor with charging cable These operating instructions cover all available accessories for the appliance. -
Page 9: Handheld Unit
Instruction manual 2-in-1 Cordless vacuum cleaner Handheld unit Handle On/off button Speed button Charging indicator light Dust container release button Battery Dust container Dust container cover release button Filter Pre-filter Microfilter Cyclone filter Dust container Premotor filter... - Page 10 Instruction manual 2-in-1 Cordless vacuum cleaner Attachments 2-in-1 combi brush For vacuuming upholstered furniture and curtains. Only for use with the handheld unit. The brush frame can be moved by pressing the release button. Crevice nozzle For cleaning narrow areas, corners and niches. Only for use with the handheld unit.
- Page 11 Instruction manual 2-in-1 Cordless vacuum cleaner Starting up Assembly Attachment of the motorised power brush Inserting the battery Remove the handheld unit from the main unit. 2. Insert the battery in the designated recess on the reverse side of the handheld unit and press until you hear it click into place.
-
Page 12: Charging The Battery
Instruction manual 2-in-1 Cordless vacuum cleaner Handheld unit Press the release button on the handle to remove the handheld unit. Now you can attach an accessory, such as the crevice nozzle. To replace it in the main unit, remove the accessory and place the lower end of the handheld unit into the designated recess, pressing down on the handle until you hear it click into place. -
Page 13: Using The Appliance
Instruction manual 2-in-1 Cordless vacuum cleaner Using the appliance Switching the appliance on and off On/Off button Press the on/off button. The vacuum cleaner will remain on until you switch it off again. The vacuum cleaner automatically starts up with maximum suction power. To reduce suction power, press the speed button. - Page 14 Instruction manual 2-in-1 Cordless vacuum cleaner Cleaning carpets and hard flooring Note: Test an inconspicuous area of flooring or carpet before using an accessory. Always follow the manufacturer’ s cleaning instructions. Rotating brushes can cause damage to some floors and pilling to some carpets. Before cleaning polished floors (including wood and linoleum), ensure that there are no foreign bodies on the underside of the brush that might scratch flooring. Emptying the dust container Remove any accessories from the handheld unit and separate the handheld from the main unit.
-
Page 15: Cleaning And Maintenance
Instruction manual 2-in-1 Cordless vacuum cleaner Cleaning and maintenance WARNING: To avoid the risk of an electric shock, always switch off and unplug the appliance before cleaning it or performing maintenance. Never immerse any part of the appliance in water or other liquids. Do not use soap or detergent to clean the filter. - Page 16 Instruction manual 2-in-1 Cordless vacuum cleaner Cleaning the motorised power brush Remove the cover by pressing the latch towards the brush. 2. Remove the screw and side cover. 3. Release the brush in the direction indicated by the arrow and clean it. If necessary, use running water. 4.
-
Page 17: Troubleshooting
Instruction manual 2-in-1 Cordless vacuum cleaner Troubleshooting WARNING: Always switch off and unplug the appliance before attempting to resolve a problem. Problem Solution The appliance Check whether the battery is charged and doesn’t work. charge it if necessary. Check whether the brush is blocked and remove any dirt. -
Page 18: Technical Specifications
Instruction manual 2-in-1 Cordless vacuum cleaner Technical specifications Size: (H x W x D) 119 x 25 x 13 cm Power (with power brush): 160 W Battery: 25.2 V Li-ion battery Battery capacity: 2,000 mAh Battery charging time: 4-5 hours Operating time: max. 50 min (in max-mode: 20 min) Dust container capacity: approx. 0.4 l ADAPTER Power supply: IN 100 – 240 V ~50/60 Hz Power supply: OUT 25-29 V, 800 mA Servicing and disposal This product should only be repaired or serviced by an authorised...
