Gronomics MFEGB 24-36 Assembly Instruction

1
Parts Identification
Stack matching pieces in piles. Using the parts list,
locate and count the individual pieces and verify that
you have received the correct number of pieces.
If any pieces are missing or replacement parts are
required, contact Gronomics at 1-855-299-6727.
NOTE: It is recommended to place a protective layer
between the ground and the pieces during assembly.
This will help prevent damage to the pieces.
NOTE: Ground preparation is optional, however we
recommend leveling area under frame of product, or
place product directly on a flat level surface before
filling with soil.
ITEM QTY. PART #
1 4
2 2
3 1
MF2950L
4 1
5 4
6 3
7 2 MF1900N
8 1
9 4
10 8
2
Side Rail w/Cleat Assembly
Stand one 4" x 4" x 31" corner post (Item 1)
upright with slots facing you and slots facing to
the right.
Locate a 29.5" x 8.25" x 1" side rail w/cleat (Item
2). With the cleat located at the bottom and
facing you, install side rail w/cleat into the lower
slot and push inward until the lock pin hole of the
side rail w/cleat is inside the corner post.
Packaged & Inspected by:
WWW.gronomics.com
DESCRIPTION
MF3100 Corner Post, 4" x 4" x 31"
MF2952 Side Rail w/ Cleat, 29.5" x 8.25" x 1"
Side Rail w/ Logo 29.5" x 8.25" x 1"
MF2950 Side Rail, 29.5' x 8.25" x 1"
MF1800 Side Rail, 18" x 8.25" x 1"
MF1900 Bottom Board 19" x 5-3/4" x 3/4"
Corner Notched Bottom Board, 19" x 5-3/4" x 3/4"
FL3652 Fabric Liner
MF4040 Post Cap, 4" x 4" x 1-1/2"
LP1700 Locking Pin 16"-L

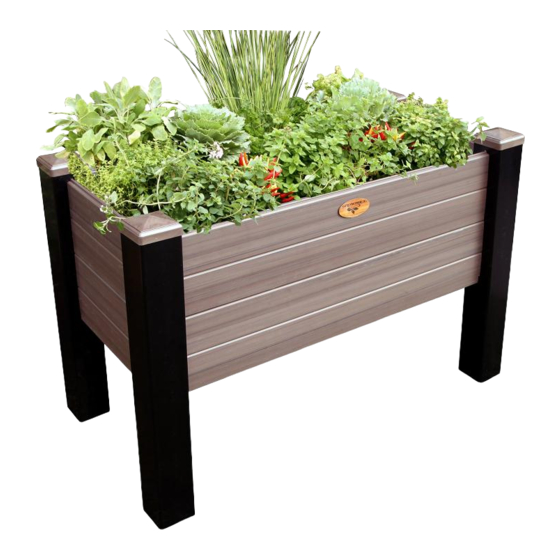

Maintenance Free Elevated Garden Bed
(24" x 36") Assembly Instruction
1
Parts List
Edit 8/30/2016
East Bethel, MN USA
Item #: MFEGB 24-36
2 3 4
6
5
1
Lower Slot
Cleat
Date:
8
9
7
10
2
Continued
763-753-7374
