Gronomics MFRGB 24-48-18 Assembly Instruction

1
Parts Identification
Stack matching pieces in piles. Using the parts list,
locate and count the individual pieces and verify that
you have received the correct number of pieces.
If any pieces are missing or replacement parts are
required, contact Gronomics at 1-855-299-6727.
NOTE: It is recommended to place a protective layer
between the ground and the pieces during assembly.
This will help prevent damage to the pieces.
NOTE: Ground preparation is optional, however we
recommend leveling area under frame of product, or
place product directly on a flat level surface before
filling with soil.
ITEM QTY. PART #
1 4
2 3
3 1
MF4150L
4 4
5 4
6 8
2
Side Rail Assembly
Stand one 4" x 4" x 17.5" corner post (Item 1)
upright with slots facing you and slots facing to
the right.
Install the 41.5" x 8.25" x 1" side rail (Item 2) side
rail into the lower slot and push inward until the
lock pin hole of the side rail w/cleat is inside the
corner post.
Slide the 41.5' x 8.25" x 1" side rail w/Logo (Item
3) into the slot on the corner post until the lock
pin hole of the side rail w/Logo is inside the
corner post. Install locking pin (Item 6) through
the locking pin hole of the side rail w/Logo and
the side rail.
Packaged & Inspected by:
WWW.gronomics.com
DESCRIPTION
MF1750 Corner Post, 4" x 4" x 17.5"
MF4150 Side Rail, 41.5" x 8.25" x 1"
Side Rail w/ Logo 41.5" x 8.25" x 1"
MF1800 Side Rail, 18" x 8.25" x 1"
MF4040 Post Cap, 4" x 4" x 1-1/2"
LP1700 Locking Pin 16"-L

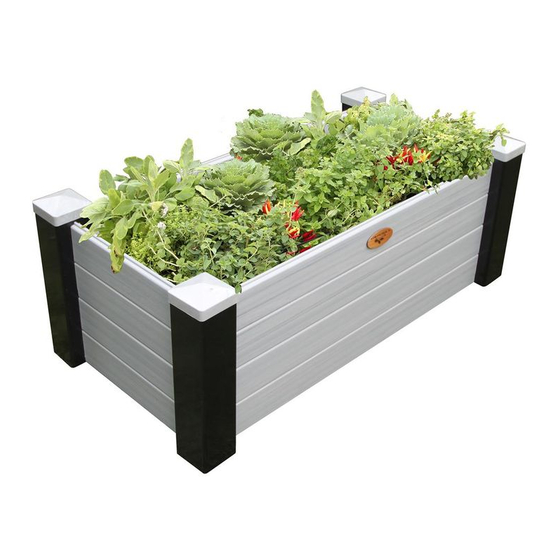

Maintenance Free Raised Garden Bed
(24"x48"x18") Assembly Instruction
1
Parts List
6
Edit 8/30/2016
East Bethel, MN USA
Item #: MFRGB 24-48-18
2
3
4
1
Logo Facing Away
3
Lower Slot
Date:
5
6
2
Continued
763-753-7374
