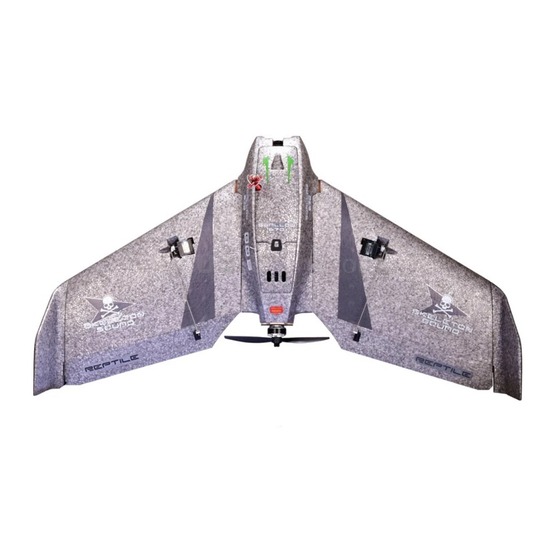

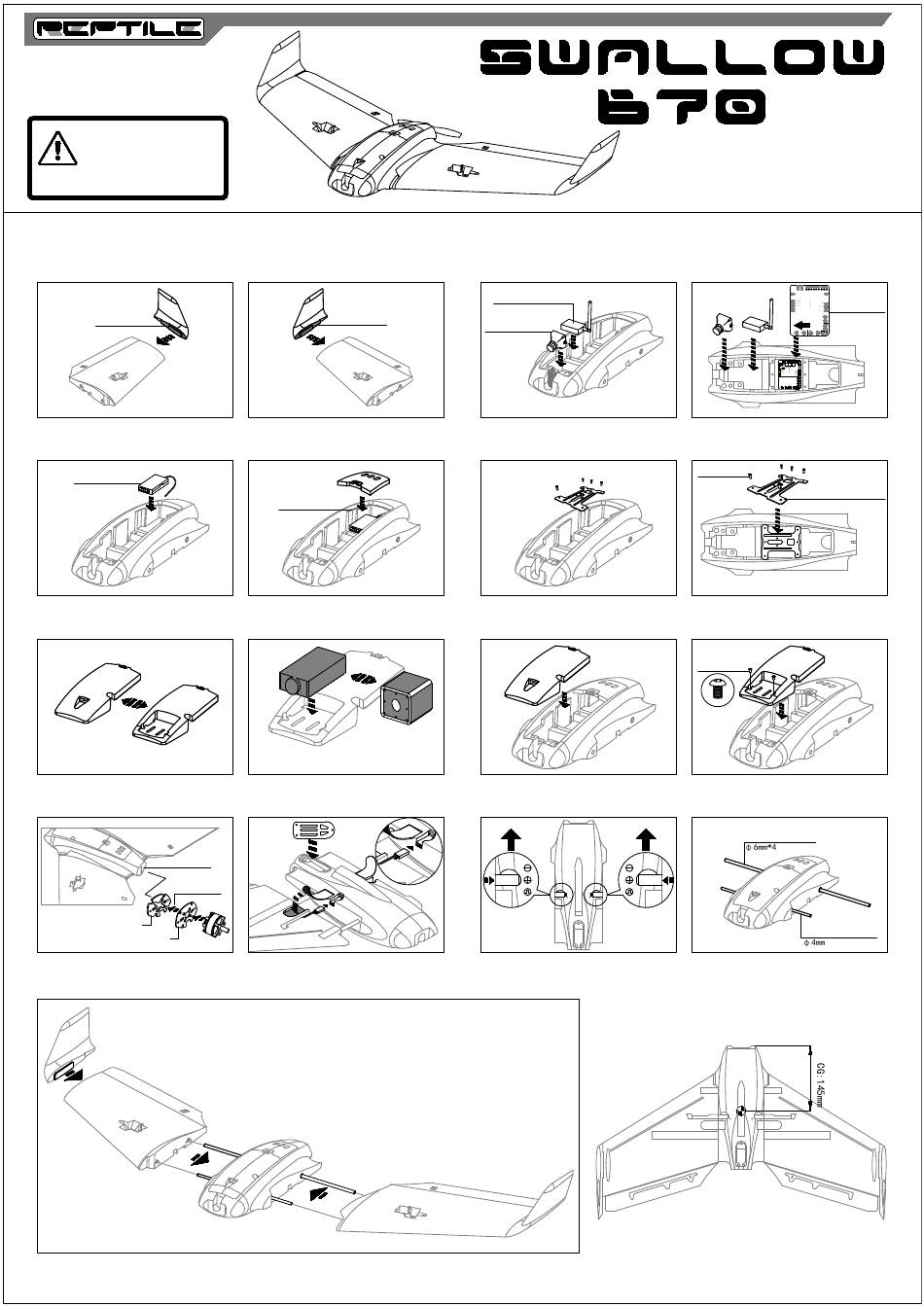

REPTILE SWALLOW 670 Manual

WARNING!
This product is NOT a
toy,Adult supervision
is required for those
under 14 years old.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly
can result in damage to the product, personal property and cause serious injury. This is a sophisticated hobby product. It must be operated with
caution and common sense and requires some basic mechanical ability. Failure to operate this Product in a safe and responsible manner could result
in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision.
Apply glue
The winglet sticky on the wing.
Receiver
Not included
The receiver is fitted into the rear
fuselage compartment.
A
B
The front engine compartment covers
two specifications for interchange
use and can be fitted with video recorders.
Apply glue
Apply glue
Wood motor seat
Carbon fiber motor seat
The carbon fiber motor seat and the
wood motor seat are glued to the
tail of the airframe.
Carbon tube links for airframe and wing.
The airframe and the wing are locked by the Velcro.
Apply glue
Apply glue
The rear cover and the body with glue.
B
The airframe and the wing are locked
by the Velcro.
Video transmitter
Not included
Camera
Not included
Load the camera into the head space
and secure it.
The battery board is mounted in the middle of the fuselage.
A
Installing the A hatch, use a magnet.
Front Front
Schematic diagram of servo line
connection.
Power board
Front
The power supply panel is installed
in the lower equipment compartment of
the middle of the fuselage.
m2*5 Screw
Battery mounting
plate
m3*5 Screw
B
Installing the B hatch, use the M3
screw to reinforce.
Carbon fiber tube
Carbon fiber rod
The front airframe is 4mm carbon
bar strengthened, and the rear
airframe is 6mm carbon tube reinforced.
CG:145mm
