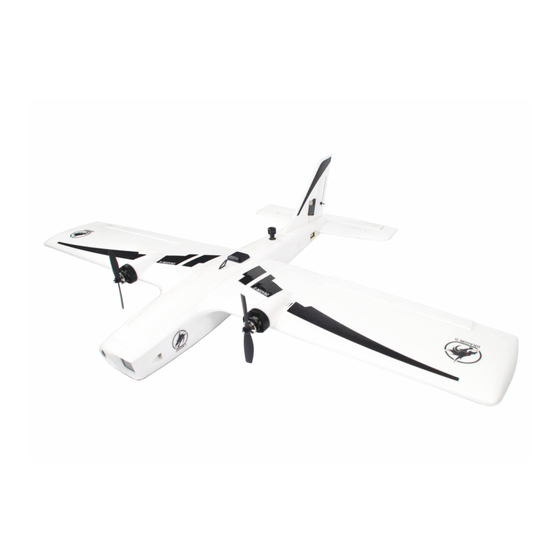

REPTILE DRAGON Instruction Manual

WARNING!
This product is NOT a
toy,Adult supervision
is required for those
under 14 years old.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly
can result in damage to the product, personal property and cause serious injury. This is a sophisticated hobby product. It must be operated with
caution and common sense and requires some basic mechanical ability. Failure to operate this Product in a safe and responsible manner could result
in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision.
16mm
19mm
22**/2300KV

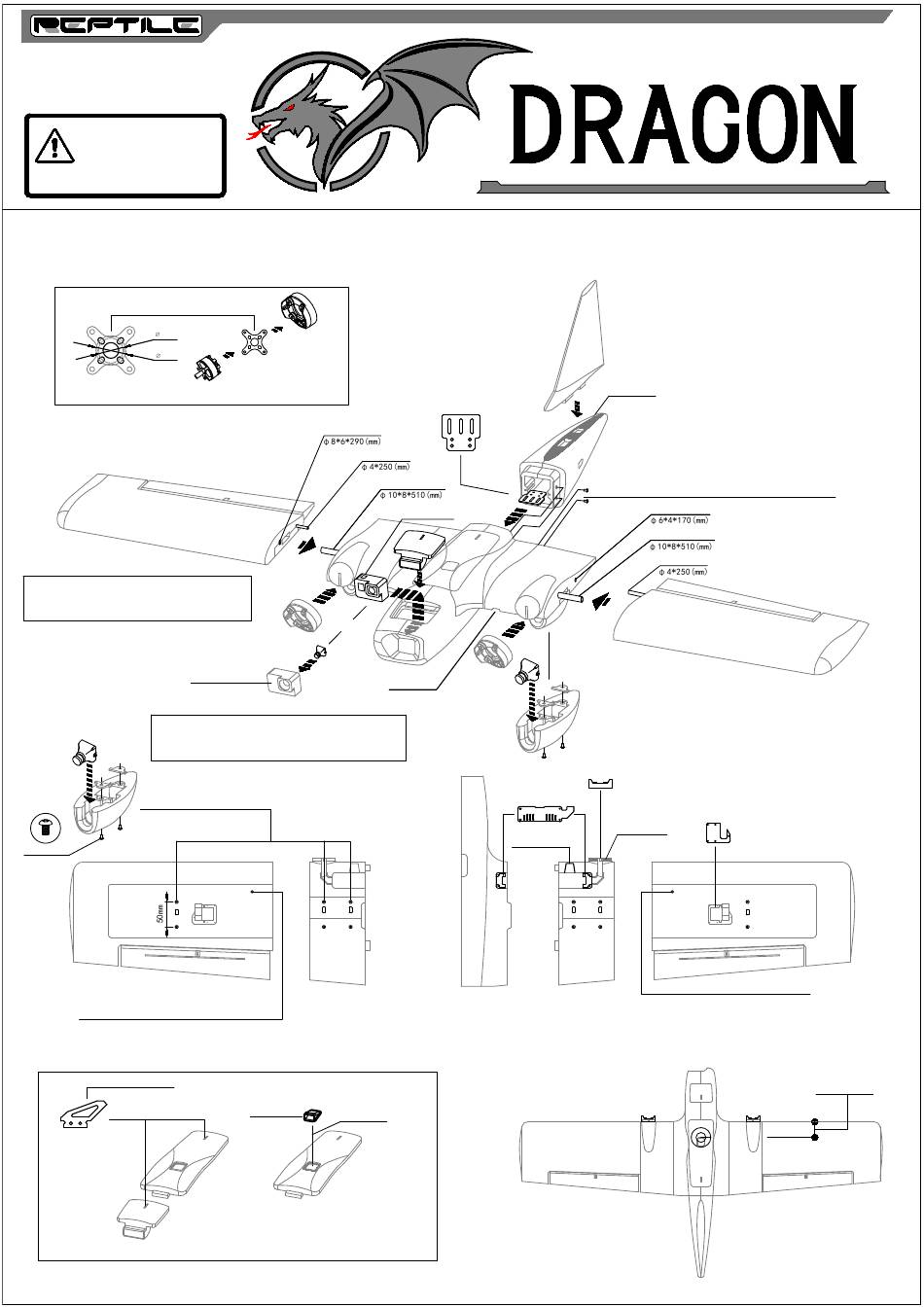

Carbon tube links for airframe and wing.
The airframe and the wing are locked by
the plastic pipe clamp.
EPP Camera seat
The camera has seven locations for placement.
There are six positions under the wing and
one position at the nose.
Optional installation location
Applicable m3*5 screw
m3*5 Screw
After the wing docking is completed,
tighten the screw here and lock the wing
M3 screw
Hatch cover handle
Apply glue
Equipment installation board
Carbon tube
Carbon rod
Carbon tube
GoPro5/6/7
OR
Air inlet
Air inlet
Apply glue Apply glue
Apply glue Apply glue
Two screws on each side (same on the opposite side)
Carbon tube
Carbon tube
Carbon rod
Motor base
ESC cover plate
Servo cover plate
Apply glue
Air inlet
Do not cover
Carbon tube locking (use m3 screws)
48mm BEHIND THE LEADING EDGE OF WING
CG
48mm
