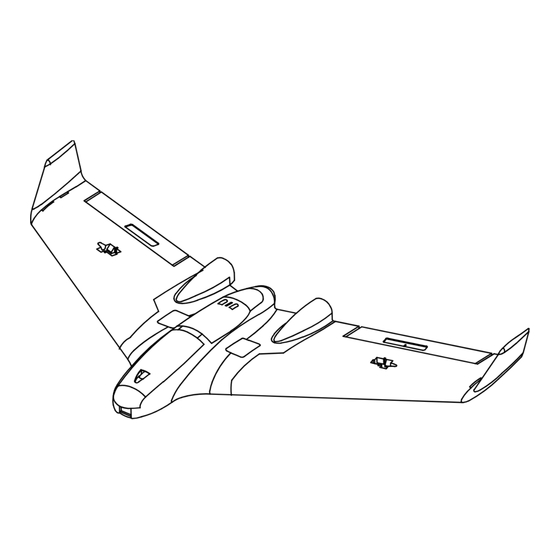

REPTILE HARRIER S1100 Instruction Manual

WARNING!
This product is NOT a
toy,Adult supervision
is required for those
under 14 years old.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly
can result in damage to the product, personal property and cause serious injury. This is a sophisticated hobby product. It must be operated with
caution and common sense and requires some basic mechanical ability. Failure to operate this Product in a safe and responsible manner could result
in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision.
Carbon rod
Apply glue
Apply glue
Coating range of glue(145mm)
Carbon pipe
Installation mode of carbon tube for wing.
Wood strengthening
frame
Wood connector
Installation mode of engine room equipment board.
Apply glue
Wood fixed plate
Carbon pipe
Carbon tube links for airframe and wing.
The airframe and the wing are locked by the plastic pipe clamp.
The installation mode of the aileron carbon sheet.
External equipment cabin
m3*5 Screw
Battery Board
FC Board
Carbon pipe
Apply glue
The winglet sticky on the wing.
Glue to the aircraft with glue
Small motor seat*2
Big motor seat*1
Apply glue
Apply glue
Apply glue
19mm
Apply glue
16mm
Wood motor seat
22**/2300KV
Carbon fiber motor seat
Apply glue 25mm
19mm
Wood motor seat
Carbon fiber motor seat
28**/1100KV
CG
285mm BEHIND THE HEAD
