How to Build pedalSHIELD
This is a 5 steps guide to build pedalSHIELD. With all the materials on hand it takes around 2 hours to
build it successfully.
Step 1 – Prepare the Materials.

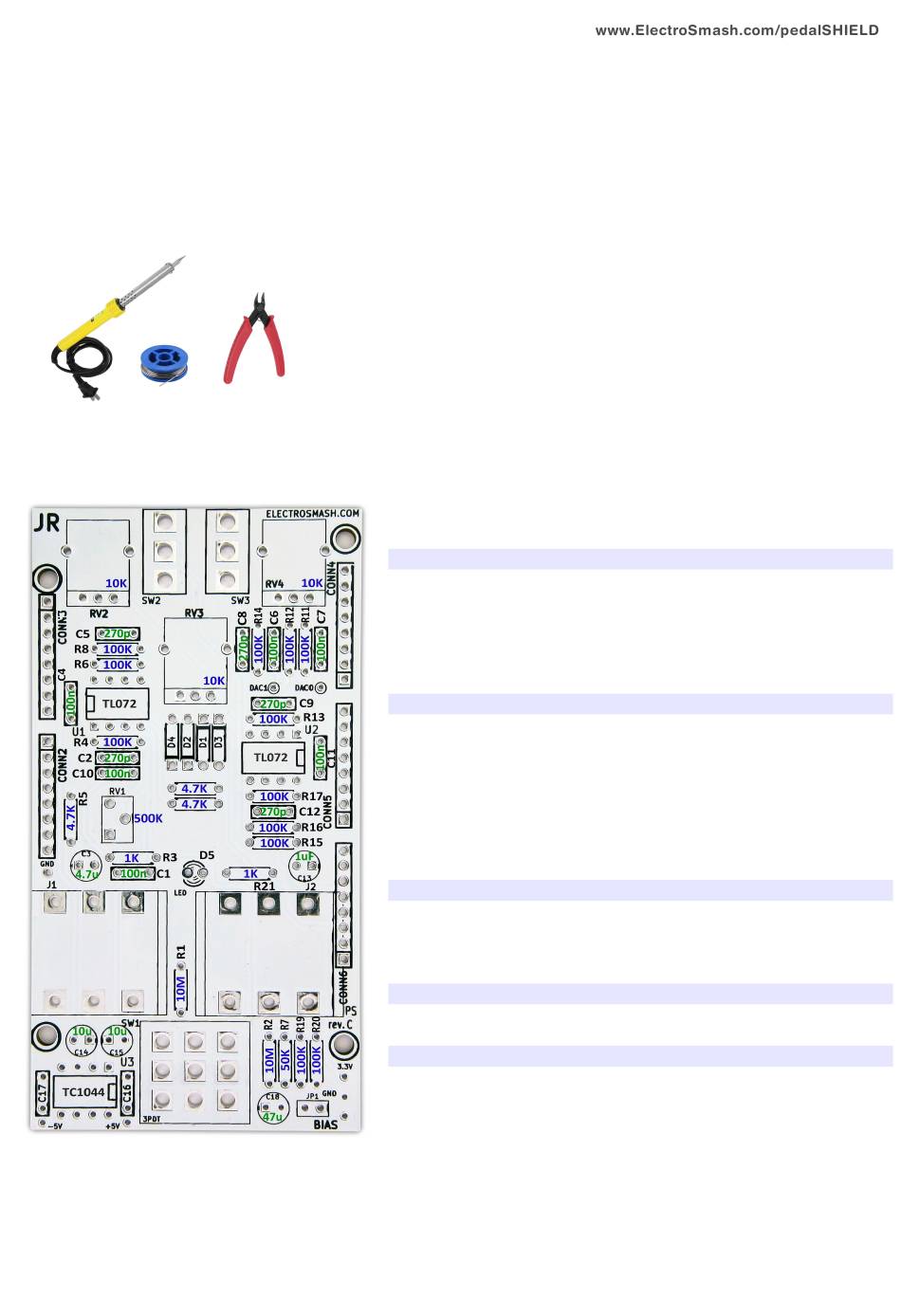

Keep in short hand the PCB plan and the Bill of Materials:
You need a solder iron, lead and cutting pliers. Additionally
cutter, scissors and pliers are convenient.
The PCB has solder mask and plated holes, so it is very easy to
solder with any 15-30W cheap solder iron.
Value
Capacitors
270p
0.1u
1u
4.7u
10u
47uF
Resistors
1K
4.7K
50K
100K
10M
500K
10K
Plastic Knobs
Others
1N5817
LED
SWITCH_3PDT
SWITCH_INV
Connectors
CONN_8pins
JACKS
IC's
TL072
TC1044
8PIN SOCKETS
pedalSHIELD Bill of Materials
Qty
References
5
C2 C5 C8 C9 C12
6
C1 C4 C6 C7 C10 C11
1
C13
1
C3
2
C14 C15
1
C18
2
R3 R21
3
R5 R9 R10
1
R7
12
R4 R6 R8 R11 R12 R13 R14 R15 R16 R17 R19 R20
2
R1 R2
1
RV1
3
RV2 RV3 RV4
3
RV2, RV3, RV4
4
D1 D2 D3 D4
1
D5
1
SW1
2
SW2 SW3
5
CONN2 CONN3 CONN4 CONN5 CONN6
2
JI, J2
2
U1 U2
1
U3
3
U1, U2, U3
Advertisement
Table of Contents
Related Manuals for ElectroSmash pedalSHIELD
Summary of Contents for ElectroSmash pedalSHIELD
- Page 1 How to Build pedalSHIELD This is a 5 steps guide to build pedalSHIELD. With all the materials on hand it takes around 2 hours to build it successfully. Step 1 – Prepare the Materials. You need a solder iron, lead and cutting pliers. Additionally cutter, scissors and pliers are convenient.
- Page 2 Step 2 – Soldering Resistors and Diodes. There are 19 resistors and 4 diodes to be placed. 2.a Solder the 100KΩ resistors (12 units) • 2.b Solder the 4.7KΩ res. (3 units) and the 10MΩ res. (2 units) • 2.c Solder the 15817 diodes (4 units), the 1KΩ res. (2 units) and the 50KΩ res. (1 unit) •...
- Page 3 Step 3 – Soldering the Capacitors. There are 11 film/ceramic and 5 electrolytic caps. 3.a Solder the 100nF capacitors (6 units) • 3.b Solder the 270pF capacitors (5 units) • 3.c Solder the electrolytic capacitors 4.7uF, 1uF, 10uF (2 units) and 47uF. •...
- Page 4 Step 4 – Soldering the Big Components. The last components to be placed are the dip sockets (3), connectors (5), trimmer, potentiometers (3), switches (2), jacks (2) and the footswitch: 4.a Solder the 8pin sockets (3 units), the trimmer res. and the 8pins connectors (5 units) •...
- Page 5 Step 5 – Checking Out the Job Done. After this 5 stages you will have a mounted board exactly like the one shown below: Double check your PCB with the model component by component. Before power it up, check this 3 ticks: ☑...
