How to Build Pedal-Pi
This is a 4 steps guide to assembly Pedal-Pi. With all the materials on hand it takes around 2-3 hours to
build it successfully. Take your time, play your favourite music on the background and enjoy the fine art
of building electronics.
Step 0 – Prepare the Materials.
You need a soldering iron, lead and cutting pliers. Additionally cutter, scissors and pliers are convenient.
The PCB has solder mask and plated holes, so it is easy to solder with any 15-30W solder iron.

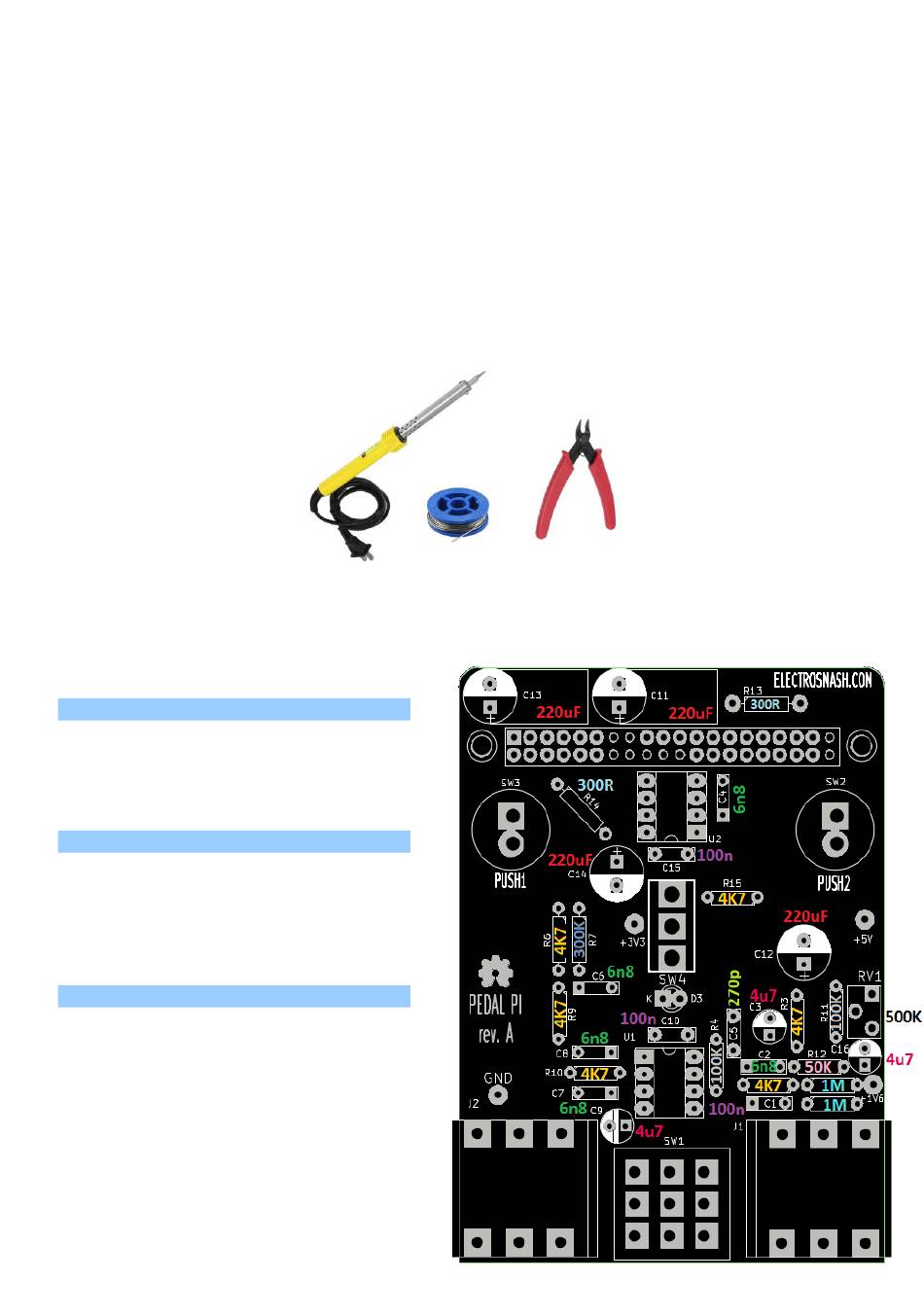

Keep in short hand the PCB plan and the Bill of Materials:
Pedal-Pi Bill of Materials.
Reference
Qty
Capacitors
C2,C4, C6, C7, C8
C1, C10, C15
C3, C9, C16
C5
C11, C12, C13, C14
Resistors
R0, R1
R2,R3,R6,R9,R10,R15
R4, R11
R7
R12
R13, R14
Others
RV1
D3
U1
U2
IC Socket
SW1
SW4
SW2, SW3
Conn1
J1, J2
Value
5
6.8nF
3
100nF
3
4.7uF
1
270pF
4
220uF
2
1MΩ
6
4.7KΩ
2
100KΩ
1
300KΩ
1
50KΩ
2
300Ω
1
500K
1
Led 3mm blue
1
MCP6002
1
MCP3002
2
dip 8 socket
1
3DPT footswitch
1
Toggle switch
Pushbutton
2
1
40 pin header
2
1/4 Jack audio
www.electrosmash.com/pedal-pi
Advertisement
Table of Contents
Related Manuals for ElectroSmash Pedal-Pi
Summary of Contents for ElectroSmash Pedal-Pi
- Page 1 How to Build Pedal-Pi This is a 4 steps guide to assembly Pedal-Pi. With all the materials on hand it takes around 2-3 hours to build it successfully. Take your time, play your favourite music on the background and enjoy the fine art of building electronics.
- Page 2 STEP1 – Soldering Resistors. There are 14 resistors to be placed: These are the resistors to be soldered: 1MΩ resistors (2 units): R0, R1. 4.7KΩ resistors (6 units): R2, R3, R6, R9, R10, R15. 100KΩ resistors (2 units): R4, R11 ...
- Page 3 STEP 2 – Soldering the Capacitors. There are 9 film/ceramic and 7 electrolytic caps. Start soldering first the smaller ceramic caps: 270pF capacitor (1 unit): C5. 6.8nF capacitors (5 units): C2, C4, C6, C7, C8. 100nF capacitors (3 units): C1, C10, C15.
- Page 4 STEP 3 – Big Size Components. The last components to be placed are the dip sockets, resistor trimmer, led, jack, switches, etc: In this step it is important to solder the remaining parts from small to big, the optimum order is: ...
- Page 5 (cathode) it is marked with a “K” on the PCB. The kit is supplied with a male and female connectors that connect Pedal-Pi to the PI ZERO board. The male (40 pins single row) needs to be cut in the middle to create 2x20pins.
- Page 6 ☑ 3. The Op-Amp and ADC are placed right (not upside down) and not swapped with each other. If you need more help there is a topic in the forum called Guide to troubleshoot Pedal-Pi. Finally the plastic cover can be placed, it is kept in placed by the foot-switch nut &...
