- Page 1 ELECTRIC BICYCLE INSTRUCTIONS FOR USE Read this guide as whole carefully before using your electric bicycle.
-
Page 2: Preface
When there is a problem about your vehicle, do not use parts except the original ones presented by authorized service shop. These instructions for use have been prepared mutual for Volta Motor electric bicycles. Used visuals and technical characteristics may not be the same with the vehicle you purchased. - Page 3 These headings have been written in order to present personal accidents and WARNING not to cause possible fatal accidents. ATTENTION - These headings have been written to protect you from important personal injuries and mechanic damages. WARNING - As per the laws of some countries, there might be need for a minimum age for using this product and a driving license.
- Page 4 www.volta.com.tr...
-
Page 5: Table Of Contents
..................14 5. Riding Instructions ....................17 6. Safe Use Instructions ...................18 7. Folding and Transporting ................21 8. Maintenance and Storing ................22 9. Storing Guide for the Vehicle ................24 10. Technical Specs ...................25 11. Authorized Service ················································································26 12. Warranty ·································································································27 www.volta.com.tr www.volta.com.tr... -
Page 6: The Vehicles And Accessories

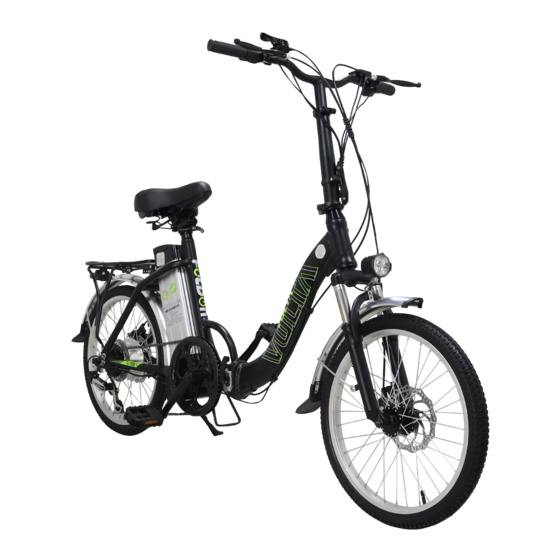

1. Indicator 8. Accumulator Contact 2. Gear Lever 9. Back Carrying Iron 10. Folding Apparatus 3. Start- up Support Assistant 11. Pedal 4. Headlamp 12. Abutment 5. Disc Brake 13. Engine 14. Rider 6. Charge Input 7. Saddle www.volta.com.tr www.volta.com.tr... - Page 7 1. THE VEHICLES AND ACCESSORIES 1. Indicator 8. Accumulator Contact 2. Gear Lever 9. Pedal 3. Start- up Support Assistant 10. Rider 11. Abutment 4. Headlamp 5. Disc Brake 12. Engine 13. Saddle 6. Folding Apparatus 7. Charge Input www.volta.com.tr www.volta.com.tr...
- Page 8 1. THE VEHICLES AND ACCESSORIES 1. Indicator 8. Accumulator Contact 2. Gear Lever 9. Engine 3. Start-up Support Assistant 10. Pedal 4. Headlamp 11. Abutment 5. Brake Mechanism 12. Saddle 6. Rider 13. Back Carrying Iron 7. Charge Input www.volta.com.tr www.volta.com.tr...
-
Page 9: Functions
3- 3- Type of communication: UART You can view all indicator content as follows (it demonstrates all signs 1 sec- ond after opening) EC U KM/H ASSIST MILE TRIP www.volta.com.tr www.volta.com.tr... - Page 10 E-02: Brake, Start-up Support Assistant; E-03: Driver warning; E-04: Brake lever warning; E-05: Low voltage warning; E-06: Communication warning (it means that speedometer cannot take data from rider) E-07: Communication warning (it means that rider cannot take data from speedometer www.volta.com.tr www.volta.com.tr...
- Page 11 2: Power rider + Electric Rider- Electric rider is non-operational P11: Assistant Power Sensitivity 1-24 P12: Assistant Power Intensity 0-5 P13: Number of Magnet 5/8/12pcs P14: Assumed current limit value 12A: Ranger 1-20A www.volta.com.tr www.volta.com.tr...
- Page 12 In order to exit from parameter adjustment interface, press on ON/OFF + MODE button for a long period or wait for 10 seconds and auto- matically exit from mode. Note: The vehicle you purchased, can demonstrate difference comparing to expla- nations indicated in these instructions of use. www.volta.com.tr www.volta.com.tr...
-
Page 13: Assembling The Vehicle
4- Fold handlebar towards 3- When your vehicle’s folding down, fold your vehicle by apparatus and handlebar pushing folding apparatus part folding apparatus are open, toward read wheel. prepare your vehicle and handlebar for folding. www.volta.com.tr www.volta.com.tr... -
Page 14: Charging The Vehicle
When it is on “LOCK ON” position, UNLOCK - You can remove your battery in that position. Start-up Support Assistant Firstly, it begins with 0-6 km/h. It is located on start-up support lever han- dlebar. Speed limit of start-up support lever is 6 km/h www.volta.com.tr www.volta.com.tr... - Page 15 4. CHARGING THE VEHICLE Gear Lever Operating gears is made by using selector figures on the gear. It is used to select rate of required gear. Indicator Its indicator is located handlebar. www.volta.com.tr www.volta.com.tr...
- Page 16 GREEN when it is fully charged. When GREEN light is lid, charging will continue to be applied. Note: When charger is on, do to plug charger cable to a socket. Plug charging cable always when charger is off. www.volta.com.tr www.volta.com.tr...
-
Page 17: Riding Instructions
Speed of your vehicle will increase when you use start-up support assistant. In order to stop your electric bicycle, remove your hand from gas and pull brake lever to yourself slowly. If you pull brake lever, start-up support assistant will stop automatically. www.volta.com.tr www.volta.com.tr... -
Page 18: Safe Use Instructions
Pay attention not to leave it outside at bad weather conditions without enough covering. • Battery capacity is reduced based on usage. Variable factors will deter- mine the distance that can be taken with the help of the engine of your electric bicycle. www.volta.com.tr www.volta.com.tr... - Page 19 Charge battery when it is not in use. Waiting for long period on low battery level, will reduce battery life. • Check all rotating parts and lubricate if it is insufficient. • Check all lighting systems. • Do not increase speed when you go downhill. www.volta.com.tr www.volta.com.tr...
- Page 20 Front and Rear Brake It moves idle for about 10-20 mm distance before seeing left and right brake levers’ functions. This distance is named “free distance”. By tightening nuts or make them free, free distances can be adjusted. www.volta.com.tr www.volta.com.tr...
-
Page 21: Folding And Transporting
Then open folding apparatus on middle section of your electric bicycle and fold your electric bicycle on middle. Transporting You can easily carry your electric bicycle when it is folded. www.volta.com.tr www.volta.com.tr... -
Page 22: Maintenance And Storing
• Never lubricate the brake installation and tyres. • Use oil to clean metal parts of your electric bicycle. • While cleaning painted plastic parts, always use standard cleaning agents. Rinse with a wet fabric after cleaning. www.volta.com.tr www.volta.com.tr... - Page 23 Do not leave your battery above 50°C and below -20°C temperatures. Keep away from fire. High temperatures can cause your battery firing. When it is possible, the vehicle should be charged when battery level is reduced to 20%. www.volta.com.tr www.volta.com.tr...
-
Page 24: Storing Guide For The Vehicle
Maximum carriage capacity of rear carrying iron is 10kg. • Do not carry loads those are not suitable for carrying on your bicycle. Otherwise, these parts will get damaged. • Rear carrying iron was designed only to carry light loads. www.volta.com.tr www.volta.com.tr... -
Page 25: Technical Specs
Output: 54 V/2A Output: 42 V/2A Output: 42 V/2A Characteristics Engine Voltage (V) Characteristics Power (W) 250W 250W 250W Indicator Display Type İnformation display İnformation display İnformation display Mechanic Präsent Präsent Präsent Gear 20” 20” 26” Body Aluminium Aluminium Aluminium www.volta.com.tr www.volta.com.tr... -
Page 26: Authorized Service
AUTHORIZED SERVICE You can reach locations of our authorized service shops by visiting our web page www.volta.com.tr MANUFACTURER COMPANY Volta Motor Sanayi A.Ş. Merkez Mh. Yıldıztepe Cad. No: 10 Gümüşova OSB Gümüşova / DÜZCE Tel : 0850 222 28 65 - 0380 731 25 25 www.volta.com.tr... -
Page 27: Warranty
+90 380 731 25 25 +90 850 222 28 65 +90 380 731 25 35 +90 380 731 25 35 OF THE PRODUCT TYPE Electric Bicycle BRAND Volta MODEL CHASIS NUMBER DELIVERY DATE and PLACE MAXIMUM REPAIR DURATION WARRANTY PERIOD 2 YEARS SELLING COMPANY... - Page 28 - Failures arising as a result of adding part or parts those are not produced or sold by Volta Motor.
