CARRELLO REX
REX TROLLEY
MANUALE D'USO – USER MANUAL
• È necessario segnalare qualsiasi incidente grave verificatosi in relazione al dispositivo medico da noi fornito al
fabbricante e all'autorità competente dello Stato membro in cui si ha sede.
• All serious accidents concerning the medical device supplied by us must be reported to the manufacturer and competent
authority of the member state where your registered office is located.
27439
Gima S.p.A.
Via Marconi, 1 - 20060 Gessate (MI) Italy
gima@gimaitaly.com - export@gimaitaly.com
www.gimaitaly.com
Made in Italy
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gima REX TROLLEY 27439
Summary of Contents for Gima REX TROLLEY 27439
- Page 1 CARRELLO REX REX TROLLEY MANUALE D’USO – USER MANUAL • È necessario segnalare qualsiasi incidente grave verificatosi in relazione al dispositivo medico da noi fornito al fabbricante e all’autorità competente dello Stato membro in cui si ha sede. • All serious accidents concerning the medical device supplied by us must be reported to the manufacturer and competent authority of the member state where your registered office is located. 27439 Gima S.p.A. Via Marconi, 1 - 20060 Gessate (MI) Italy gima@gimaitaly.com - export@gimaitaly.com www.gimaitaly.com Made in Italy...

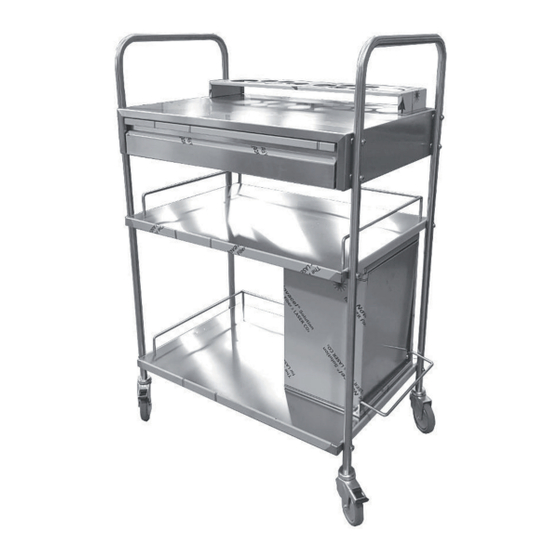

- Page 2 ENGLISH INTRODUCTION In accord with Regulation (EU) 2017/745, this product is part of the CLASS I MEDICAL DEVICES. You should carefully read this manual before using this medical device DESCRIPTION This product is a medication trolley for hospital use, entirely made of stainless steel with 3 shelves equipped with waste basket and bottle holder. Suitable for dressing in hospitals, clinics and doctor’s surgeries. N.2 CURVED LEGS SHELD WITH DRAWER CENTRAL SHELF WITH RAILS WASTE BIN SHELF WITH GUARD RAILS AND HOLES FOR WASTE BIN...
- Page 3 ENGLISH COMPONENTS: N.2 Curved legs N. 2 wheels Ø 100 mm without brakes N. 2 wheels Ø 100 mm with brakes N.1 shelf with drawer and support for bottles N.1 central shelf with guard rails N.1 bottom shelf with guard rails and n.4 holes for waste bin N.1 Waste bin...
- Page 4 ENGLISH ASSEMBLY MATERIAL: 8 TBE 8X35 (shelf with drawer and support for bottles) 8 washers M8 (shelf with drawer and support for bottles) 4 TSPE 6X18 (for waste bin) 4 nut M6 (for waste bin) 4 washers M6 (for waste bin) 1 key M6M10 1 allen key ø 4 1 allen key ø 5 1 allen key ø 8 (for wheels) ASSEMBLY INSTRUCTION Prepare a sufficiently large shelf to work on. Take one leg and the upper shelf with drawer and place it on a work surface. Take a leg and put together a side of the shelf with n. 4 TBE 8x35 screws supplied.
- Page 5 ENGLISH Unscrew the screws that keep the central shelf Restart to fix the central shelf to the leg. to the beam. Unscrew the screws that keep the third shelf to the beam and restart to fix it to the leg. One side is completed, proceed in the same way with the second leg.
- Page 6 ENGLISH By pressing the pedal lever, tilt the basket backwards and remove it. Insert n.4 TSPE 6x18 screws on the bottom of the shelf and keep relative washer and nut to fix the basket to the shelf. Insert the wheels with brake (drawer side) and insert one by one into the leg tube terminal. Finally, take the Allen key and wrench and screw it in until finished.
- Page 7 - Do not use cleaning utensils containing iron. If necessary disinfection only use suitable non-corrosive products. Medical Device compliant Keep away from sunlight with Regulation (EU) Keep in a cool, dry place 2017/745 Product code Consult instructions for use Manufacturer Caution: read instructions Lot number Medical Device (warnings) carefully GIMA WARRANTY TERMS The Gima 12-month standard B2B warranty applies.
