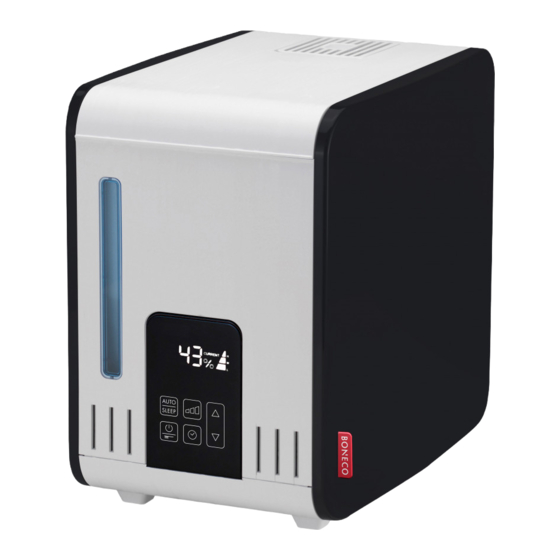

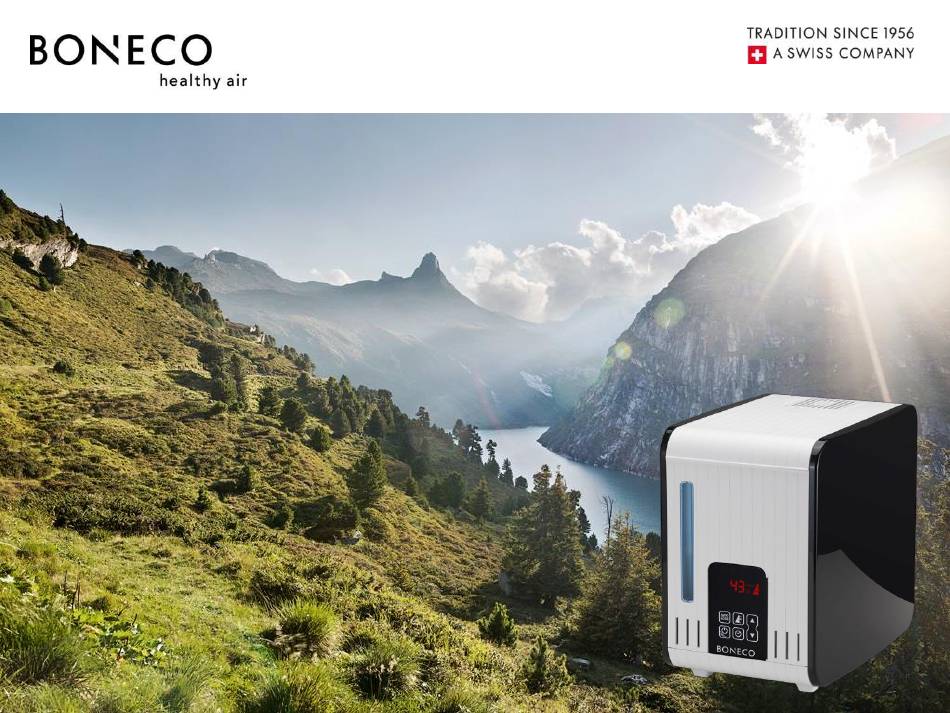

- Page 1 Service-Manual Steamer S450...
-
Page 2: Table Of Contents
Content overview Content On page Safety instructions Technical Data Display and functions Make the delivery status Dismount instructions Exploded view Material list 28. November 2016 / 2... -
Page 3: Safety Instructions
Safety instructions Connect the appliance only to AC – with voltage indicated on the rating label. Using the appliance for a purpose for which it s not intended could pose a serious hazard to health and life. Never use the appliance if there is any damage to the appliance or cable. Only operate the appliance when it is completely assembled. -
Page 4: Technical Data
Technical Data Performance rating Mains voltage 220-230V / 50Hz USA only with particular heater 120V / 60Hz Power consumption( Stufe I / II / III ) 160W / 360W / 480W Power consumption ( Standby) 0.5W Humidity output up 160 / 420 / 550 g/h In the ECON-Mode: Humidity output up to:160 / 420 g/h Suitable for rooms up to... -
Page 5: Display And Functions
Display and functions 28. November 2016 / 5... -
Page 6: Make The Delivery Status
Make the delivery status The device is at 1) Button press 2) Button press 3) Button press 4) Button 5) Buton press Humidity the first plug-in AUTO/ECON L/M/H TIMER perss Icon Icon Icon Icon in TEST-MODE Humidity... -
Page 7: Dismount Instructions
Dismount instructions Steamer S450 Remove the pipe cover Remove the top cover Take the water tank out. Take the steam pipe out. team pipe, watertank, pipe Turn the appliance upside Clamp a thin plastic sheet Slide with the plastic-sheet Remove the left and right side along the side panel until it‘s... - Page 8 Dismount instructions View from above. Lift the holder slightly with a Remove the bottom. Remove the print, float switch Remove the cable protection screwdriver. and fan. cover. Display panel, print cover, loose the screws and CAUTION: Put the fan-cable at the assembling in it‘s print, float switch, fan and remove the heater.
-
Page 9: Exploded View
Exploded view 28. November 2016 / 9... -
Page 10: Material List
Material list Pos. Item Name Middle part S450 white 38316 Float body S450 38317 Cover float body S450 Screw float ring 38321 Gasket heating unit 38319 Heating unit 230V 38320 Heating unit 120V USA Distance ring for heating element Screw heater S450... - Page 11 Material list Pos. Item Name 38325 Print S450 Print cover S450 grey 38326 Fan S450 Bottom part S450 38312 Side panel S450 black 38315 Tank S450 white/transparent 23180 Tank cap S450 38310 Pipe S450 white 38311 Pipe cover S450 38309...
- Page 12 Material list Pos. Item Name without position 38330 Power cord China 38331 Power cord USA 38340 Manual S450 AOS 38341 Manual S450 AOS USA ACC = Accessories N/A = not available, prices see separate price list 28. November 2016 / 12...
