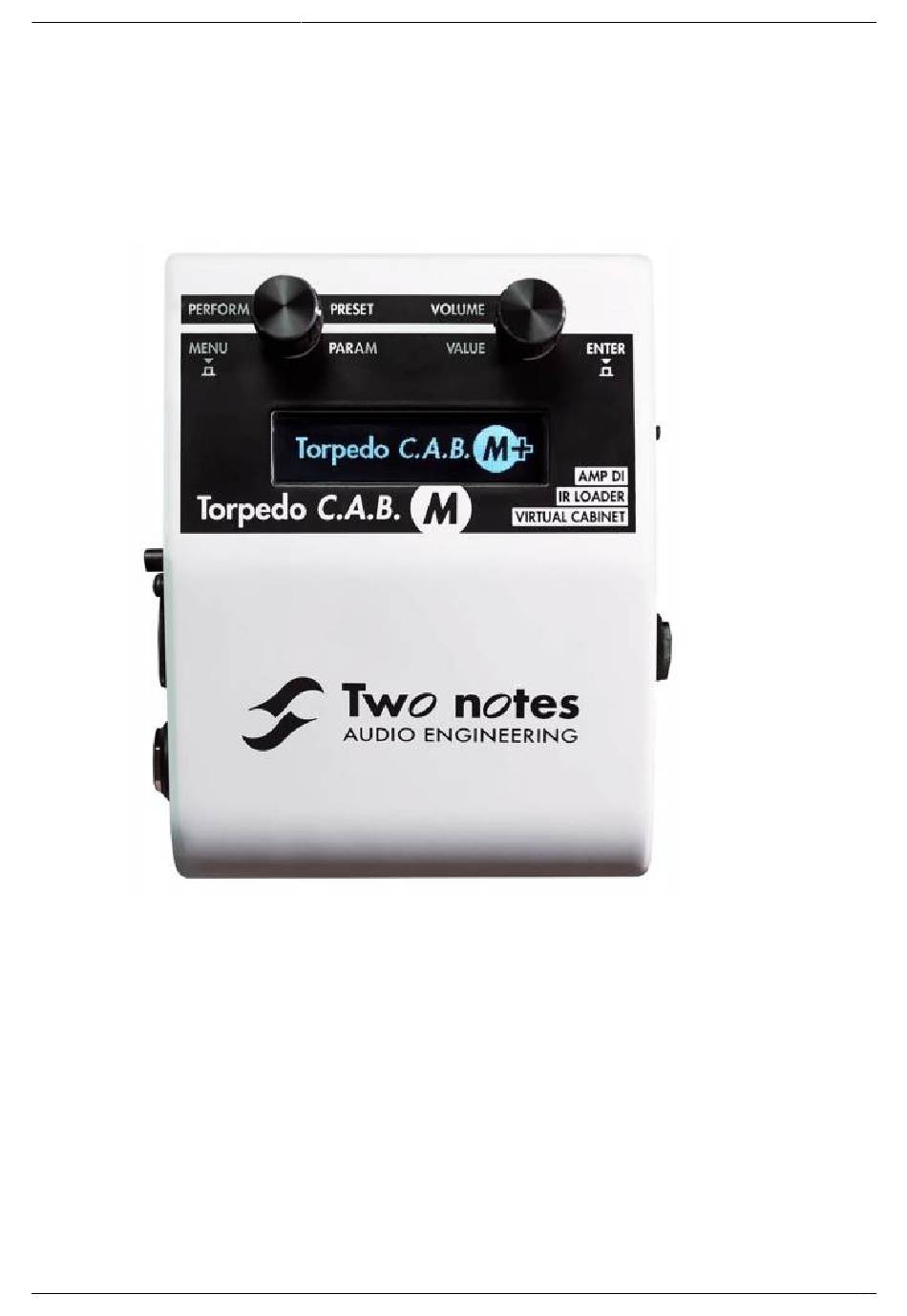

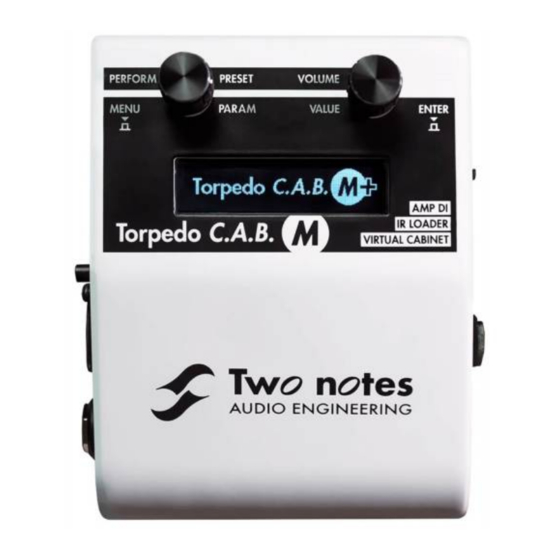

Torpedo C.A.B. M+ User's Manual
Clean pedal platform. Speaker cabinet simulator. Quiet stage solution.
The complete electronic version of this manual, as well as the Two notes Audio Engineering software
and hardware products, are subject to updates. You can download the most recent versions of the
products on the
Two notes Audio Engineering
This manual describes the Torpedo C.A.B. M+ and provides instructions for its operation. It is highly
recommended that you read this document before using the product. The contents of this manual
have been thoroughly verified and it is believed, unless stated otherwise, to accurately describe the
product at the time of shipment from the factory or download from our website.
Two notes Audio Engineering is a registered trademark of:
OROSYS SAS
76 rue de la Mine
User's manuals - https://wiki.two-notes.com/
1/35
website.
Torpedo C.A.B. M+ User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Torpedo C.A.B. M+ and is the answer not in the manual?

Questions and answers

Related Manuals for Two notes Audio Engineering Torpedo C.A.B. M+

Summary of Contents for Two notes Audio Engineering Torpedo C.A.B. M+

  • Page 1 Clean pedal platform. Speaker cabinet simulator. Quiet stage solution. The complete electronic version of this manual, as well as the Two notes Audio Engineering software and hardware products, are subject to updates. You can download the most recent versions of the...

  • Page 2: Safety Instructions

    Last update: torpedo_cab_mplus:torpedo_c.a.b._mplus_user_s_manual https://wiki.two-notes.com/doku.php?id=torpedo_cab_mplus:torpedo_c.a.b._mplus_user_s_manual 2020/06/26 10:48 34980 Saint-Gély-du-Fesc France Tel: +33 (0)484 250 910 Fax: +33 (0)467 595 703 Contact and support: http://support.two-notes.com Website: http://www.two-notes.com This document is the exclusive property of OROSYS SAS. In the interest of product development, OROSYS SAS reserves the right to change technical specifications, modify and/or cease production without prior notice.

  • Page 3: Maintenance

    The complete electronic version of this manual, as well as the Torpedo Remote and Torpedo BlendIR softwares are subject to updates. You can download the most recent versions of these products on Two notes Audio Engineering website. 1.3 Declaration of conformity...

  • Page 4: Disposal Of Waste Equipment By Users In Private Household In The European Union

    1.5 Warranty OROSYS SAS warrants that this TWO NOTES AUDIO ENGINEERING product shall be free of defects in parts and workmanship when used under normal operating conditions for a period of two (2) years from the date of purchase. This warranty shall apply to the original purchaser when purchased from an Authorized TWO NOTES AUDIO ENGINEERING dealer.
  • Page 5 ARISING FROM THE LOSS OF USE OF SAME DUE TO DEFECTS OR AVAILABILITY OF SAME DURING SERVICE. In case you have to send your TWO NOTES AUDIO ENGINEERING product to any other location, it is of vital importance to retain the original packing materials. It is very difficult to avoid damage if shipping the product without these materials.
  • Page 6 Last update: torpedo_cab_mplus:torpedo_c.a.b._mplus_user_s_manual https://wiki.two-notes.com/doku.php?id=torpedo_cab_mplus:torpedo_c.a.b._mplus_user_s_manual 2020/06/26 10:48 Pedals have come a long way in the last 25 years and many players use them to build their tone. With the new clean preamp and a choice of 8 power amps to choose from makes the Torpedo C.A.B. M+ the perfect clean pedal platform.
  • Page 7 2020/06/26 14:07 7/35 Torpedo C.A.B. M+ User's Manual 1- Parameter/Preset Encoder 2- Value/Volume Encoder 3- OLED display screen 4- Amp/Instrument/Line input 5- Speaker Output (Warning! When an amp is connected to the AMP input, the related cabinet/load box has to be connected to the Speaker Output of the pedal!) 6- Input level selector 7- USB for Remote application 8- Mains power adapter connector...

  • Page 8: Tube Stage Output

    Position the microphones inside the virtual studio (Miking window and parameters) Shape the signal (EQ, enhancer and Reverb sections) At each step, Two notes Audio Engineering implements its know-how to offer the most advanced simulations on the market and ensure absolutely realistic quality both for the musician (in terms of playing sensation) and for the listener (in terms of sound quality).
  • Page 9 3rd party IRs in to the Torpedo C.A.B. M+. 2.3.7 Create Your Own IR's Download the free Torpedo BlendIR software from the Two notes Audio Engineering website. With this software you will be able to capture your own cabinet + microphone setup and embed its sound signature into the Torpedo C.A.B.
  • Page 10 Last update: torpedo_cab_mplus:torpedo_c.a.b._mplus_user_s_manual https://wiki.two-notes.com/doku.php?id=torpedo_cab_mplus:torpedo_c.a.b._mplus_user_s_manual 2020/06/26 10:48 3. Connecting the Torpedo C.A.B. M+ The Torpedo C.A.B. M+ finds its place either: on your pedalboard among your usual stompboxes, direct to interface/PA on a silent stage; between the amp and the speaker cabinet as an amp DI; or after a load box, for silent playing/recording of your amplifier at its sweet spot.
  • Page 11 2020/06/26 14:07 11/35 Torpedo C.A.B. M+ User's Manual 3.1 Using the C.A.B. M+ with your pedalboard Plug your Torpedo C.A.B. M+ as the last mono pedal on your pedal board (for example after your distortion pedal). You connect your pedal board to the AMP/INST/LINE IN (item N°4 in the overview diagram above) of the Torpedo C.A.B.
  • Page 12 Last update: torpedo_cab_mplus:torpedo_c.a.b._mplus_user_s_manual https://wiki.two-notes.com/doku.php?id=torpedo_cab_mplus:torpedo_c.a.b._mplus_user_s_manual 2020/06/26 10:48 minimum. This filter is set at 37% by default but you may need to tweak that to find the place that is the right balance for you rig. To create a lightweight rig with a pedal board, place the Torpedo C.A.B. M+ on your pedal board knowing that the best results are achieved by placing it before the time-based and modulation effects (chorus, delay, reverb), which then become brighter and clearer.
  • Page 13 2020/06/26 14:07 13/35 Torpedo C.A.B. M+ User's Manual With a cabinet Insert the C.A.B. M+ between your amp and your load box/cabinet. To do so, connect your amp to the AMP/INST/LINE IN (item N°4 in the overview diagram above) of the C.A.B. M+ with a speaker cable and connect the SPEAKER OUT (item N°5) of the C.A.B.

  • Page 14: Remote Control

    Last update: torpedo_cab_mplus:torpedo_c.a.b._mplus_user_s_manual https://wiki.two-notes.com/doku.php?id=torpedo_cab_mplus:torpedo_c.a.b._mplus_user_s_manual 2020/06/26 10:48 With a load box Connect the speaker output of the amp to the AMP IN of the C.A.B. M+, then connect the SPEAKER OUT of the pedal to the amp/speaker input of a load box (depending on the load box you will use, the input is either described Amp input or Speaker input) such as the Torpedo Captor).

  • Page 15: Stay Connected

    3.4 Stay connected You may have discovered an idea to use the device in some innovative way. Do not hesitate to come and share your experience on the Two notes Audio Engineering Forum or social networks. Please go to the Two notes Audio Engineering website and click on the “Community”...
  • Page 16 Last update: torpedo_cab_mplus:torpedo_c.a.b._mplus_user_s_manual https://wiki.two-notes.com/doku.php?id=torpedo_cab_mplus:torpedo_c.a.b._mplus_user_s_manual 2020/06/26 10:48 3. Virtual Cabinet (VC), IR Loader (I) mode indicator 4. Bargraphs for input and output levels 5. Output level (from Mute to +12dB) In this menu, you can navigate in the presets and set the output volume of the unit. You will be in this menu when playing without editing or modifying any parameter.
  • Page 17 2020/06/26 14:07 17/35 Torpedo C.A.B. M+ User's Manual To enter any section and edit the related parameters, scroll to the relevant section by turning the PARAM encoder and press ENTER to enter. Some sections can be modified directly without entering it, by turning the VALUE encoder.
  • Page 18 Last update: torpedo_cab_mplus:torpedo_c.a.b._mplus_user_s_manual https://wiki.two-notes.com/doku.php?id=torpedo_cab_mplus:torpedo_c.a.b._mplus_user_s_manual 2020/06/26 10:48 a cabinet two microphones and their positions in the room effects settings (Noise Gate, EQ, Enhancer, Reverb) preset level 4.3.1.1 Noise Gate The noise gate is useful if you are using a high gain amp and want to keep your signal quiet when you are not playing, or use vintage style single coil pickups.
  • Page 19 2020/06/26 14:07 19/35 Torpedo C.A.B. M+ User's Manual You have access to 32 different cabinets and each cabinet can be miked with 2 of the 8 available microphones for the given cabinet (Mic A and Mic B). First you choose your cabinet. Then the 2 microphones you will use.

  • Page 20: Preset Level

    Last update: torpedo_cab_mplus:torpedo_c.a.b._mplus_user_s_manual https://wiki.two-notes.com/doku.php?id=torpedo_cab_mplus:torpedo_c.a.b._mplus_user_s_manual 2020/06/26 10:48 LMid: peak, 180 - 720 Hz, +/-20dB Mid: peak, 400 - 1600 Hz, +/-20dB HMid: peak, 1 - 4 kHz, +/-20dB High: peak, 3 - 12kHz, +/-20dB 4.3.1.6 Enhancer The Enhancer is a combination of dynamic and tone- shaping tools especially tailored for your guitar and/or bass.
  • Page 21 2020/06/26 14:07 21/35 Torpedo C.A.B. M+ User's Manual This parameter lets you set the level of the preset. It is independent of the output level (set in the PERFORM environment), which is the same for all presets and acts as a master level. It is also directly accessible in the upper level of the MENU.
  • Page 22 Last update: torpedo_cab_mplus:torpedo_c.a.b._mplus_user_s_manual https://wiki.two-notes.com/doku.php?id=torpedo_cab_mplus:torpedo_c.a.b._mplus_user_s_manual 2020/06/26 10:48 4.3.3 Level This parameter lets you set the level of the preset. It is independent of the output level (set in the PERFORM environment), which is the same for all presets and acts as a master level. 4.3.4 Save This section allows you to save a preset.

  • Page 23: Audio Performance

    2020/06/26 14:07 23/35 Torpedo C.A.B. M+ User's Manual 4.3.6.2 Audio performance This setting combines the resolution of the third-party IRs you are using and the latency it generates. If you choose a low latency setting, your IRs will be truncated at 40ms. Selecting a higher resolution for the IRs (up to 200 ms) will result in more latency.
  • Page 24 Last update: torpedo_cab_mplus:torpedo_c.a.b._mplus_user_s_manual https://wiki.two-notes.com/doku.php?id=torpedo_cab_mplus:torpedo_c.a.b._mplus_user_s_manual 2020/06/26 10:48 4.3.6.7 Brightness This setting determines the brightness level of the display screen. 4.3.6.8 Screensaver You can choose between an animation, a dim of the display, or the screen going into sleep mode (turns off) after a delay period you set from 1 to 60 seconds. The OLED technology used in the screen of the Torpedo C.A.B.

  • Page 25: Torpedo Remote

    2020/06/26 14:07 25/35 Torpedo C.A.B. M+ User's Manual 4.3.8 Which microphone is the right one for that cabinet? You will find a selection of 3 types of microphones with each Two notes cabinet: condenser, ribbon and dynamic. The microphone technology gives an idea of how it will sound, even if, with each technology, you could find microphones that are not sounding as you might expect.

  • Page 26: Saving And Loading Presets

    Last update: torpedo_cab_mplus:torpedo_c.a.b._mplus_user_s_manual https://wiki.two-notes.com/doku.php?id=torpedo_cab_mplus:torpedo_c.a.b._mplus_user_s_manual 2020/06/26 10:48 The Torpedo C.A.B. M+ comes with its internal memory for Virtual Cabinets at full capacity with 32 cabinets already loaded. To import a cabinet that is stored in your computer to the unit, you need to free space by dragging and dropping one or more cabinet from the right panel to the bin.

  • Page 27: Want More Cabs

    “~/Library/Two Notes Audio Engineering/Cabinets” on MAC OSX™ Torpedo Remote automatically downloads and saves the Two notes virtual cabinets in this folder. A “Two Notes Audio Engineering” folder is created in the Documents folder of the user. This folder contains: • a “Presets” folder containing a copy of all default presets installed in the C.A.B.
  • Page 28 Last update: torpedo_cab_mplus:torpedo_c.a.b._mplus_user_s_manual https://wiki.two-notes.com/doku.php?id=torpedo_cab_mplus:torpedo_c.a.b._mplus_user_s_manual 2020/06/26 10:48 You will see 3 types of icons in front of the names of the cabinets : Cabinets which are on your Torpedo unit. Cabinets which are on your licence loaded in your computer Cabinets which you do not own but can preview before buying them on the Two notes Store. When you are previewing a cabinet that is on your computer (which means that you own it and it is in your license stored in your computer), the Remote needs to load the cabinet first so you can edit all the parameters.
  • Page 29 No billing or information on the payment method is stored on the Remote, so as to ensure maximum security. 4.5.2 .tur files .tur are proprietary files created with the Two notes Audio Engineering Torpedo BlendIR software. The software is available for download from the Two notes Audio Engineering website.
  • Page 30 Last update: torpedo_cab_mplus:torpedo_c.a.b._mplus_user_s_manual https://wiki.two-notes.com/doku.php?id=torpedo_cab_mplus:torpedo_c.a.b._mplus_user_s_manual 2020/06/26 10:48 The left panel is the files on your computer. You can browse the folders where you have stored your IRs. The right side represents the IR files that are loaded in the Torpedo C.A.B. M+. You can drag and drop the IRs from the computer (left) to the Torpedo (right).

  • Page 31: Specifications

    2020/06/26 14:07 31/35 Torpedo C.A.B. M+ User's Manual 4.5.3.2 With the memory card If you wish to have more IRs than the 512 slots of the internal memory, use the memory card. The memory card is not seen by Torpedo Remote and is only accessible through the pedal itself. First, the memory card has to be mounted.
  • Page 32 Last update: torpedo_cab_mplus:torpedo_c.a.b._mplus_user_s_manual https://wiki.two-notes.com/doku.php?id=torpedo_cab_mplus:torpedo_c.a.b._mplus_user_s_manual 2020/06/26 10:48 Designation Inspired by RackHero Suhr® CAA 4×12 CB Alien Transformer® 20W Greenback clones BoGreen Bogner® 4×12 Greenbacks G12M25 Reissue in 16ohms Calif StdC Mesa/Boogie® Rectifier® Standard 4×12 Celestion® V30 closed back Calif StdO Mesa/Boogie® Rectifier® Standard 4×12 Celestion® V30 open back Free Rock VHT®...

  • Page 33: Block Diagram

    2020/06/26 14:07 33/35 Torpedo C.A.B. M+ User's Manual Designation Inspired by Dynamic 81 Dynamic microphone Telefunken® M81 Dynamic 421 Dynamic microphone Sennheiser® MD421 Dynamic 906 Dynamic microphone AKG® D112 Dynamic D6 Dynamic microphone Audix® D6 Dynamic I5 Dynamic microphone Audix® I5 Dynamic Bass88 Dynamic microphone BeyerDynamic®...

  • Page 34: Technical Data

    6. Technical support Should you encounter a problem with your product or need help regarding any technical aspects, please note that Two notes Audio Engineering has developed on-line services to provide you with fast and efficient technical support, the Two notes Help Desk.

  • Page 35: Two Notes Website

    Torpedo C.A.B. M+ User's Manual 6.1 Two notes Website On the Two notes Audio Engineering website, you will find: news about the company and the products (news on the homepage), comprehensive information about the Torpedo C.A.B. M+ and its many applications (FAQ), firmware and software updates to download (products/Torpedo C.A.B.
