RHINO 2409 Assembly Manual

Loader mounting kit for new holland tractors
Hide thumbs Also See for 2409:

Advertisement

Quick Links

MODEL
2120 After S/N UV32236
3415
TRACTOR AND MOUNTING KIT GENERAL
INFORMATION
Mounting kit can be installed on tractor using tools
ordinarily available.
IMPORTANT: This mounting kit is compatible with
vertical exhaust only. Mounting kit is not compatible
with front weights. If tractor is equipped with front
weights, they must be removed before mounting
loader. It is not necessary to remove front weight
bracket.
NOTE: If installing optional grille guard (2-6225), install
grille guard and front mounting bracket (1, Figure 1) at
same time.
Check tire clearances when loader installation is
complete and adjust tread width as necessary to
provide adequate clearance.
Shut off tractor engine and engage parking brakes
during installation.
INSTALLING LOADER MOUNTING BRACKETS
(Figure 1)
NOTE: Install all attaching hardware loosely (unless
noted otherwise) until mounting kit is completely
assembled to facilitate assembly and proper alignment.
Tighten all hardware to torques specified in general
torque specifications table.
1. Attach front mounting bracket (1) to sides of tractor
front frame using 1/2 x 2" cap screws (10) and lock
nuts (14).
2. Support tractor auxiliary valve and bracket and
remove four 16mm cap screws which secure valve
bracket (A) to mounting pad on right side of tractor
clutch housing. Support right side of tractor engine
and front frame and remove five 14mm cap screws
from tractor frame and engine casting ahead of
mounting pad.
3. With valve bracket sandwiched between, fasten
right mid mounting bracket (3) to tractor clutch
housing using four 16mm x 50 mm cap screws (8)
and 5/8" lock washers (11), and with tractor front
frame to engine block using five 14mm x 55mm cap
screws (9) and 9/16" lock washers (12).
F-3676
ASSEMBLY MANUAL
Keep with Operator's Manual
LOADER MOUNTING KIT
2409 LOADER
NEW HOLLAND TRACTORS
2WD
X
X
4. Support left side of tractor engine and front frame
5. Fasten left mid mounting bracket (2) and spacer
NOTE: Tighten 16mm cap screws (8) to 130-158 ft.·lbs.
of torque. Tighten 14mm cap screws (9) to 85-103
ft.·lbs. of torque.
MOUNTING LOADER ONTO TRACTOR AND
MOUNTING BRACKETS

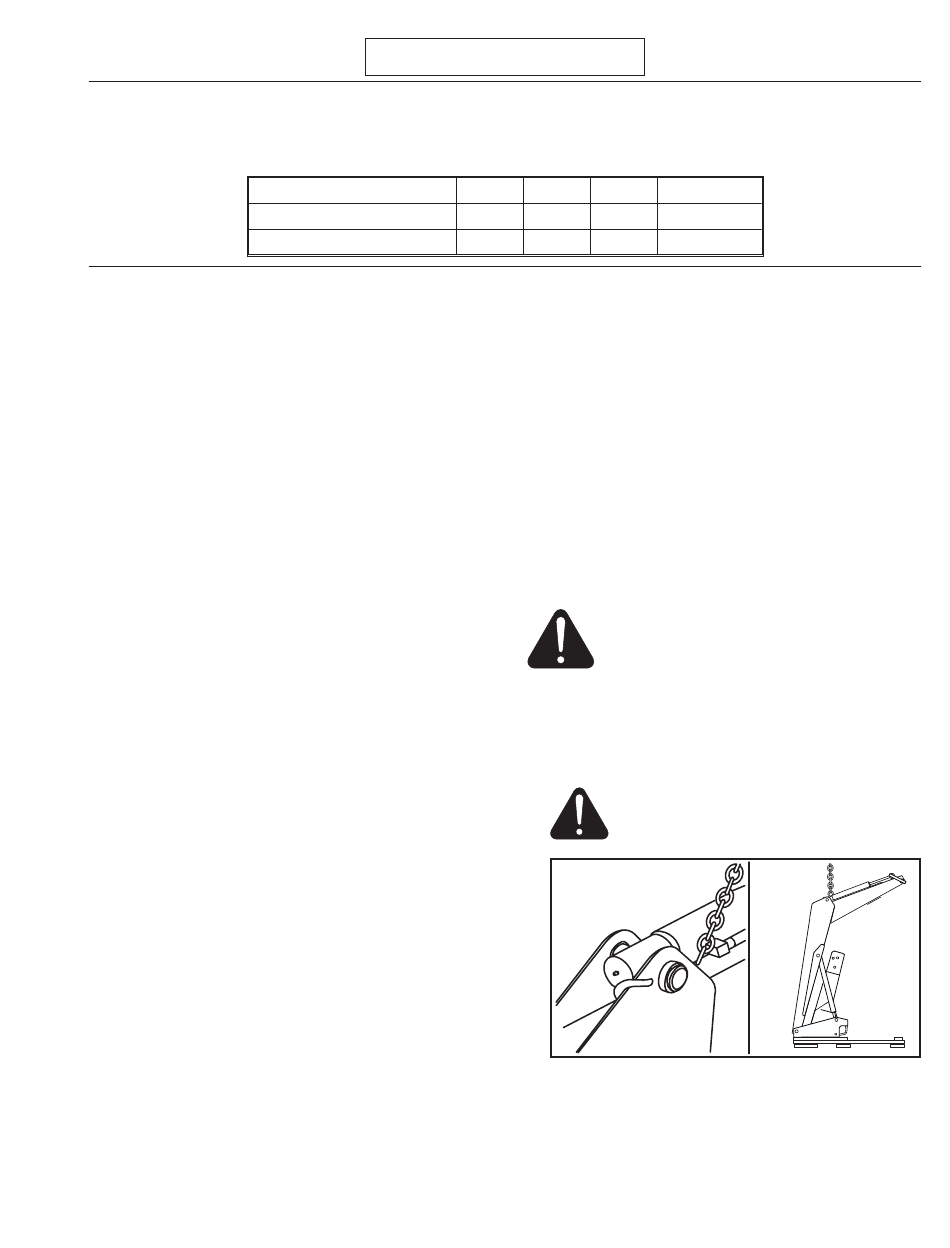

1. Loop chain under each lift cylinder and hook on
2. Using overhead hoist, lower loader from vertical
Page 1 of 4
FWA
ROPS
SOFT CAB
X
X
X
X
X
X
and remove five 14mm cap screws from tractor
frame ahead of mounting pad.
plate (6) to tractor clutch housing using four 16mm
x 50 cap screws (8) and 5/8" lock washers (11) and
with tractor front frame to engine block using five
14mm x 55mm cap screws (9) and 9/16" lock
washers (12).
WARNING:
To
installation of quick attach loader, do not
permit bystanders within ten feet of loader
or tractor.
loader boom arm. Using overhead hoist to support
loader, remove hardware securing loader to pallet.
Lift loader and remove pallet.
CAUTION: Do not damage grease fitting
on end of cylinder. Be sure chain does not
pinch lift cylinder.
shipping position to horizontal position, leaving
enough room to install yoke. (Scraps of cardboard
may be used to protect paint.) Fasten yoke
assembly (4) to loader side frames using 3/4 x 2-
1/2" cap screws (7) and lock nuts (13).
2-7126
avoid
injury
during
1-7-2005
