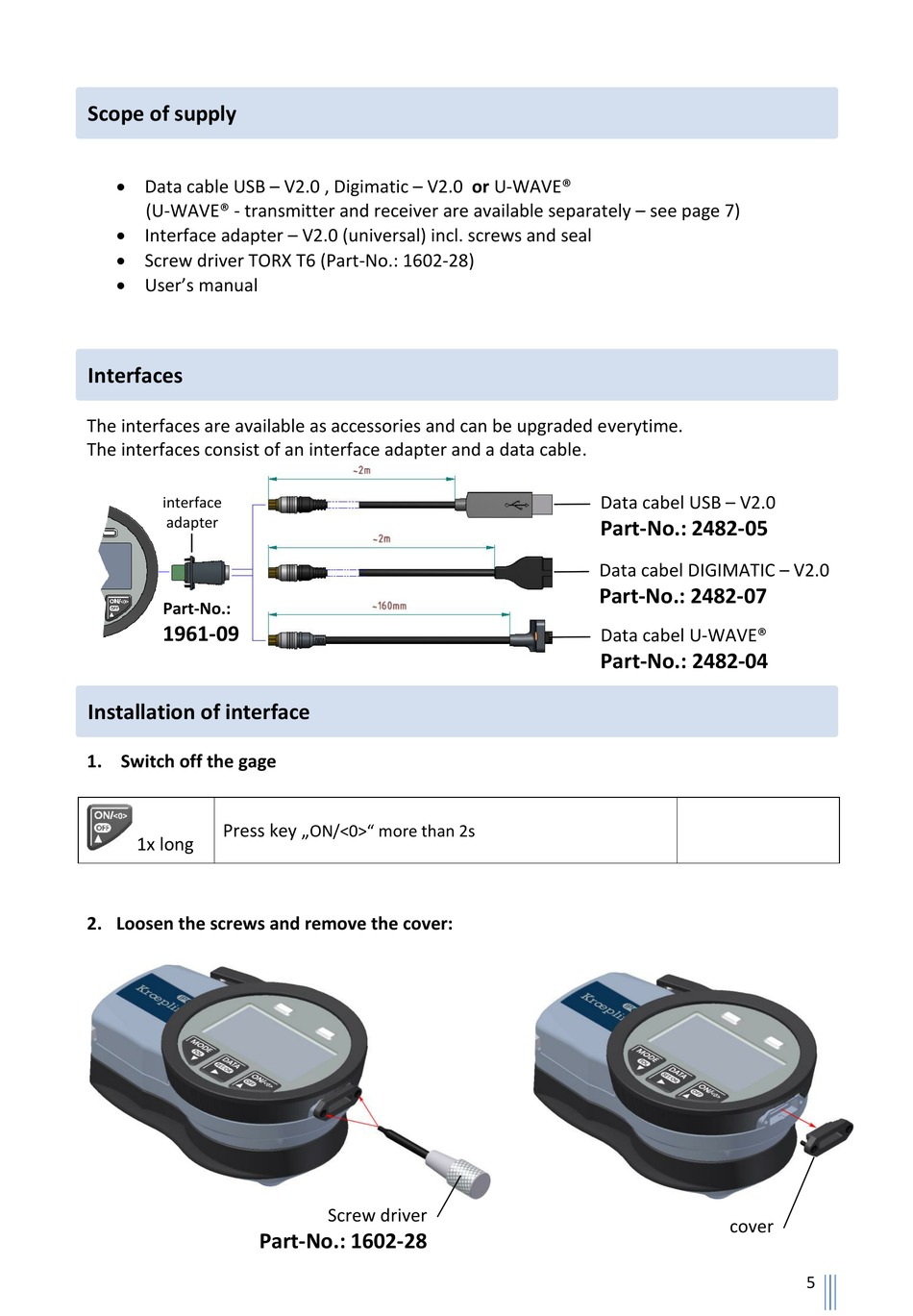

Scope of supply
Data cable USB – V2.0 , Digimatic – V2.0 or U-WAVE®
(U-WAVE® - transmitter and receiver are available separately – see page 7)
Interface adapter – V2.0 (universal) incl. screws and seal
Screw driver TORX T6 (Part-No.: 1602-28)
User's manual
Interfaces
The interfaces are available as accessories and can be upgraded everytime.
The interfaces consist of an interface adapter and a data cable.
interface
adapter
Part-No.:
1961-09
Installation of interface
1. Switch off the gage
Press key „
1x long
2. Loosen the screws and remove the cover:
Part-No.: 1602-28
ON/<0>" more than 2s
Screw driver
Data cabel USB – V2.0
Part-No.: 2482-05
Data cabel DIGIMATIC – V2.0
Part-No.: 2482-07
Data cabel U-WAVE®
Part-No.: 2482-04
cover
5
