NOTE: When replacing filter housing hand tighten only. The filter wrench should only be
used to remove a filter housing.
1
PURPOSE
These instructions cover the installation of the water filtration system (PN CER-1076) used with the
MEDIVATORS brand CER and CLM endoscope reprocessors.
2
WATER SUPPLY
Use a cold water line with a pressure of 40 to 60 PSI that will supply a flow rate of 2.5 to 3 GPM (9.4 LPM to
11.4 LPM) filter system. The cold water supply should not exceed 110°F (43°C).
3
FILTRATION SYSTEM
NOTE: Endoscope manufacturers recommended that endoscopes not be exposed to
temperatures above 130°F (55°C).
NOTE: A water shut-off valve is required before the filter assembly. It should be
accessible to the users.
NOTE: THE WATER SUPPLY IS REQUIRED TO BE TURNED OFF WHEN NOT IN USE.
Gauge #1
To CER water supply
connection
3/4-inch hose
connection
Filter housing
Final Filter
Stainless steel hose
Endoscope reprocessing the way it should be™
WATER FILTRATION SYSTEM
INSTALLATION INSTRUCTIONS

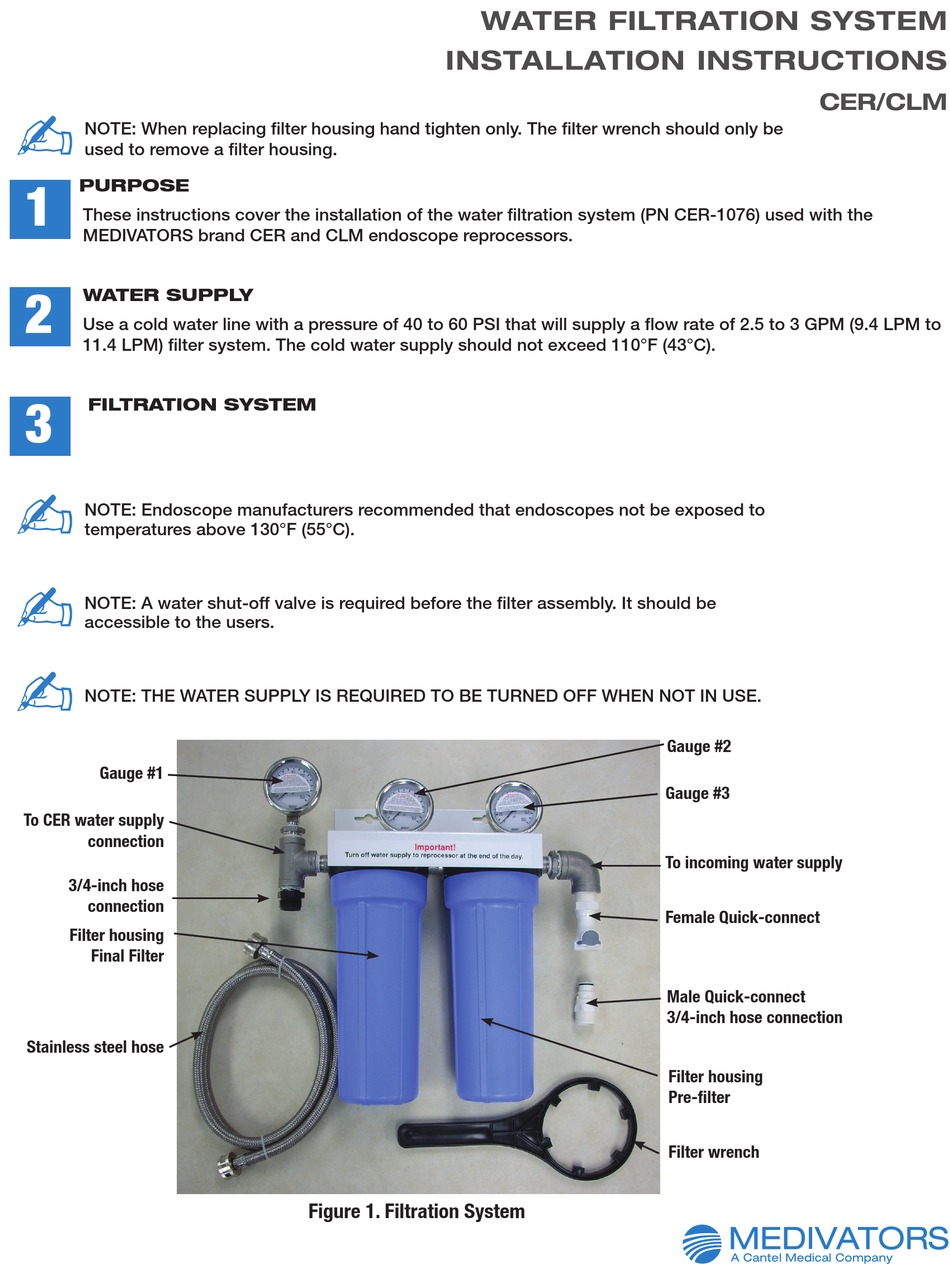

Figure 1. Filtration System
CER/CLM
Gauge #2
Gauge #3
To incoming water supply
Female Quick-connect
Male Quick-connect
3/4-inch hose connection
Filter housing
Pre-filter
Filter wrench
