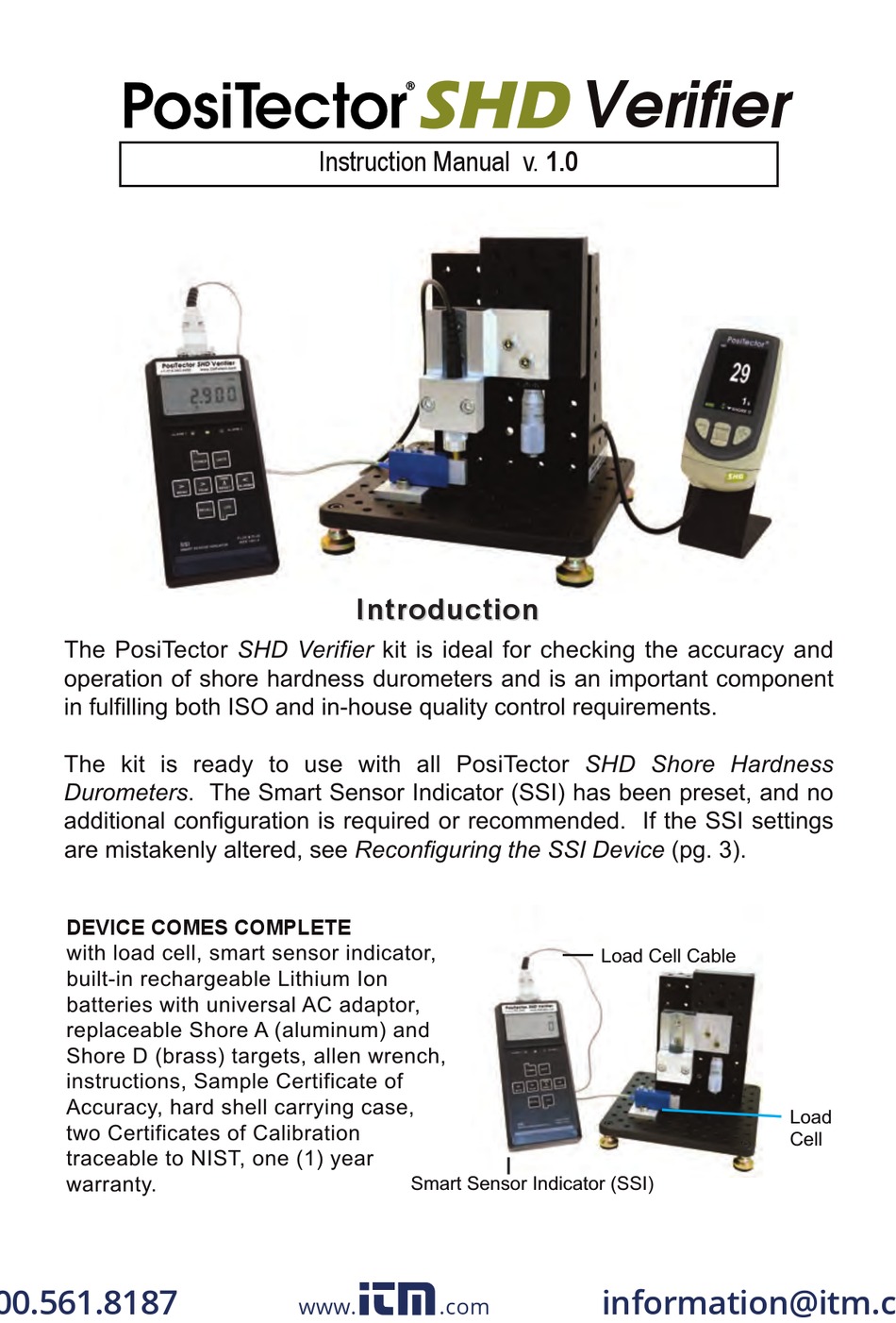

POSITECTOR SHD Verifier Instruction Manual

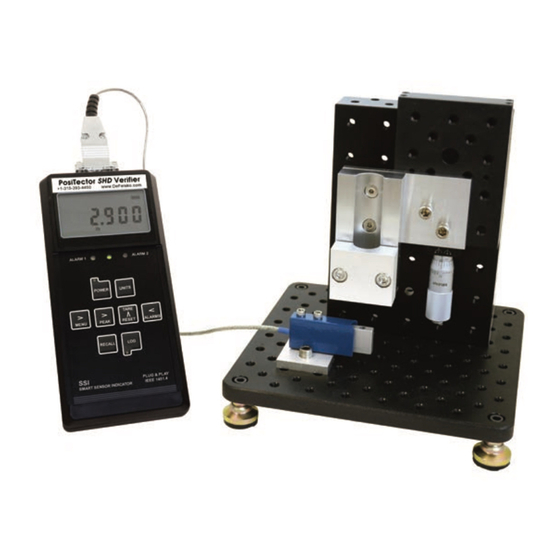

The PosiTector SHD Verifier kit is ideal for checking the accuracy and

operation of shore hardness durometers and is an important component

in fulfilling both ISO and in-house quality control requirements.

The kit is ready to use with all PosiTector SHD Shore Hardness

Durometers. The Smart Sensor Indicator (SSI) has been preset, and no

additional configuration is required or recommended. If the SSI settings

are mistakenly altered, see Reconfiguring the SSI Device (pg. 3).

DEVICE COMES COMPLETE

with load cell, smart sensor indicator,

built-in rechargeable Lithium Ion

batteries with universal AC adaptor,

replaceable Shore A (aluminum) and

Shore D (brass) targets, allen wrench,

instructions, Sample Certificate of

Accuracy, hard shell carrying case,

two Certificates of Calibration

traceable to NIST, one (1) year

warranty.

00.561.8187

Instruction Manual v. 1.0

Introduction

Smart Sensor Indicator (SSI)

www.

.com

Verifier

Load Cell Cable

information@itm.co

Load

Cell

Table of Contents

Do you have a question about the SHD Verifier and is the answer not in the manual?

Page 1 Instruction Manual v. 1.0 Introduction Introduction The PosiTector SHD Verifier kit is ideal for checking the accuracy and operation of shore hardness durometers and is an important component in fulfilling both ISO and in-house quality control requirements. The kit is ready to use with all PosiTector SHD Shore Hardness Durometers.
Page 2 Select a SHD A (aluminum) or SHD D (brass) target and insert it into the load cell as shown. Note: Inspect the targets before installing. To prevent damage to the PosiTector SHD D probe tip, the SHD D (brass) target is designed to be dented during testing and will periodically need to be replaced.
Page 3 SHD Verifier corresponding to the Shore A or Shore D verification points illustrated below. 4.7 Verify that the PosiTector SHD is reading within + 1 Shore value of the corresponding load. Repeat steps 4.6 – 4.7 for each verification point.
Page 4 Returning for Service Returning for Service If you need to return the PosiTector SHD Verifier for service, describe the problem fully and include reading results, if any. Be sure to include contact information including your company name, company contact, telephone...
