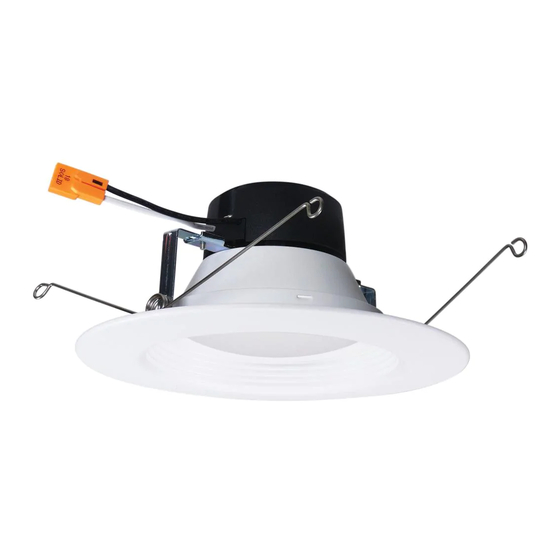

5"/6" led downlight retrofit

Advertisement

5"/6" LED
DOWNLIGHT RETROFIT
Model: S11801
INSTALLATION AND SAFETY INSTRUCTIONS
WARNING:
Risk of Fire or Electric Shock
• TURN OFF the electrical power before proceeding.
• Install this kit only in luminaires that have the construction features and dimensions shown in
exceed the input rating of the luminaire.
• To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal or other
sharp objects.
• Do not make or alter any open holes in an enclosure of wiring or electrical components during
kit installation.
combination shall be determined by authorities having jurisdiction. (Sold to Canada only.)
• This device is not intended for use with emergency exits.

WARRANTY

:
This product is guaranteed for a 5 year warranty. Any quality issue in normal
use within the warranty period, will be repaired or replaced according to the situation and under
dimmer compatibility information.
NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.

NOTE 2:

could void the user's authority to operate the equipment.

INSTALLATION:

INSTALLATION:
1
Turn off power prior to installation.
Remove the diffuser and existing bulb
if necessary. Remove the existing trim.
4
Connect LED downlight trim to
the Edison base adaptor.
© Copyright 2019 Satco Products, Inc. 6/19
2
2700K
3000K
3500K
4000K
5000K
Before installation, select your preferred
CCT by moving the switch to either
2700K, 3000K, 3500K, 4000K or 5000K.
5
Gently squeeze together the torsion
springs of the LED trim and insert into
the recessed housing.
Dimensions:
5.2
3
Screw adaptor into socket in recessed
housing.
6
Gently push up the LED downlight until
wires are exposed. Turn on power.
Satco Products, Inc.
Brentwood, NY 11717
