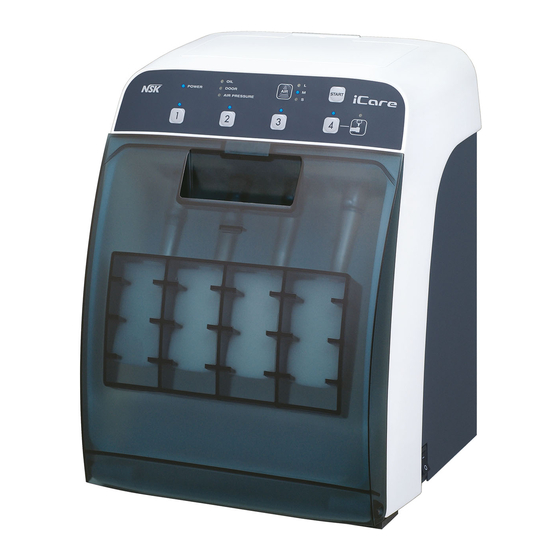

NSK iCare Quick Operation Manual

Be sure to prime iCare with the Maintenance Oil when using the product for the first time.
Be sure to prime iCare with the Maintenance Oil when using the product for the first time or after draining the oil from
the oil tank in accordance with Operation Manual "6. Oil priming". Lack of oil priming may reduce the performance of the product.
Attaching Handpiece
Air Turbine
When connecting Air Turbine
① Remove the bur from the handpiece.
② Open the iCare Door, insert the adaptor (option) to the shape of the air turbine joint,
and tighten the nut securely.
③ Insert the air turbine into the adaptor (Fig. 1).
④ Push and pull the handpiece to be sure that it is securely attached.
⑤ Point the bur insertion hole toward the door and close the door securely.
*When connecting a Midwest 4 Hole air turbine, insert the air turbine to the shape
of the air turbine joint, and tighten the nut securely.
Tighten
For Contra Angle and Air Turbine Handpieces point the Bur
Insertion Hole towards the door and close the door (Fig. 4).
Mist Filters absorb the oil coming out of the handpiece.
iCare Quick Operation Guide
Air Turbine Joint
Nut
Adaptor
Fig.1
E Type handpiece
When connecting Contra Angle Handpiece
① Remove the bur from the handpiece.
*When connecting Straight Handpiece, insert the supplied Test Bur into the handpiece
and lock the chuck by turning the Bur Lock Ring (Fig.2).
② Open the iCare door and attach the handpiece to the E-Type handpiece joint until
it locks (Fig. 3).
③ Push and pull the handpiece to be sure that it is securely attached.
④ Point the bur insertion hole toward the door and close the door securely.
Bur Lock Ring Test bur
Fig.2
Fig.4
E-Type
handpiece Joint
Fig.3
