Summary of Contents for NSK iCare
-
Page 2: Table Of Contents

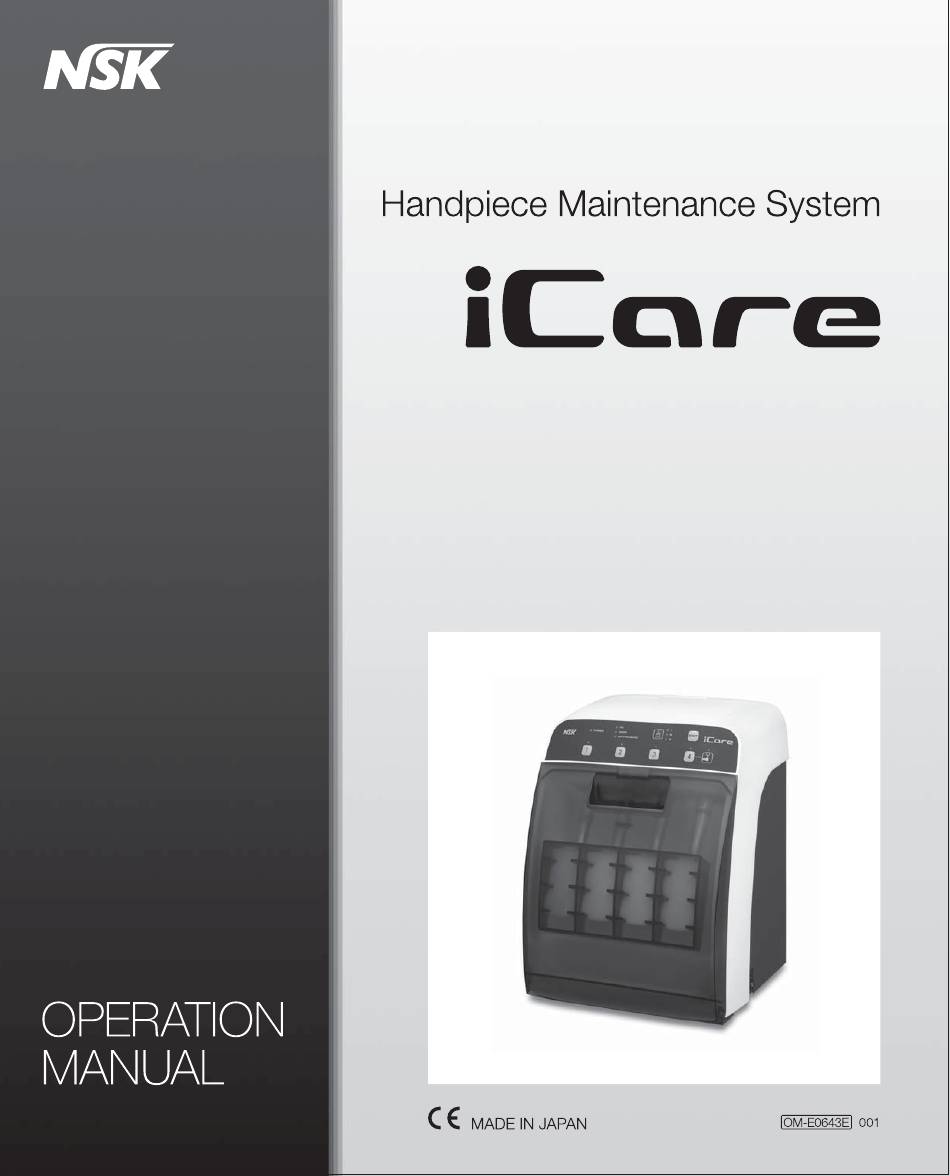

English Thank you for purchasing the NSK iCare. Please read this Operation Manual carefully before use to become familiar with operation instructions and care & maintenance. Keep this Operation Manual for future reference. - Contents - 1. Intended Use ................... 1 2. - Page 3 • Do not store the Maintenance Oil in contact with halogen, strong acid, alkali, and oxidizing substance or in the same place as these substances. • Use only consumable parts such as maintenance oil, and accessories such as an AC power cord specified by NSK. Other than what we specify may cause product failure due to insufficient lubrication.
-
Page 4: Package Contents
Package Contents Part Name Quantity iCare Unit AC Power cord Maintenance Oil for iCare Oil Filling Nozzle 1set Mist Filter Set (Pack of 12) Air Tube 1set Oil Absorber Sheet (Pack of 10) Chuck Cleaning Nozzle 1set O-ring Set (Pack of 3) Test Bur (CS5) iCare-EN_140507.indd... -
Page 5: Part Names

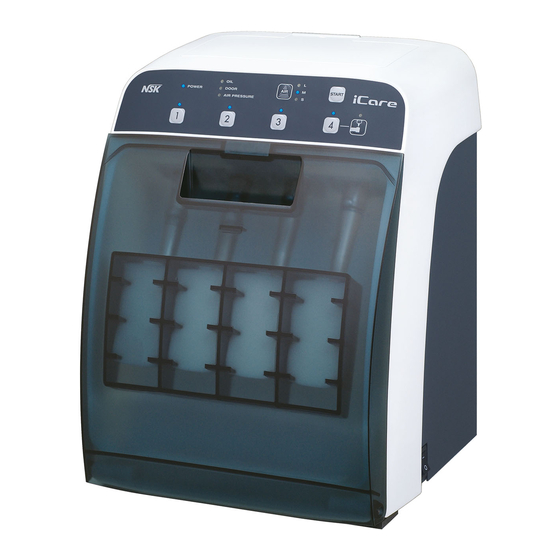

Part names iCare Unit Cover Control Panel Joint Air Filter Fuse Box Power Switch Inlet Door Control Panel (E) Error LED (Air Pressure) (3) Air Select Button (D) Error LED (Door) (F) Air LED (S/M/L) (A) Power LED (C) Error LED (Oil) -
Page 6: Checking And How To Connect Each Part
• Do not twist or bend the Air Tube. • If you have difficulty connecting the Air Tube, contact your Authorized NSK Dealer. • Drain water from the Air Compressor and Air Filter at least once a week as required. Moisture from the tank could mix with the Maintenance Oil. - Page 7 DANGER • Do not overfill Maintenance Oil in order to avoid accidental oil leaks. Pour slowly. • Use only the NSK Maintenance Oil for iCare. Use of oil other than NSK Maintenance Oil for iCare may cause a failure and result CAUTION in insufficient product lubrication.
-
Page 8: Oil Priming
Close the Door then turn ON the Power Switch (I side) while pressing the Air Select Button. Oil priming Be sure to prime iCare with the Maintenance Oil when using the product for the first time or after draining the oil from the oil tank. Lack of oil priming may reduce the performance of the product. -
Page 9: Check Before Use
When connecting a Midwest 4 Hole air turbine (According to ISO 9168) 1) Remove the bur from the handpiece. 2) Open the iCare Door, insert the air turbine to the shape of the air turbine joint, and tighten the nut securely (Fig. 11). To 4) When connecting another type of air turbine 1) Remove the bur from the handpiece. - Page 10 1) Insert the supplied Test Bur into the handpiece and lock the chuck by turning the Bur Lock Bur Lock Ring Ring (Fig. 15). 2) Open the iCare door and attach the handpiece to the E-Type handpiece joint until it locks (Fig. 16). 3) Push and pull the handpiece to be sure that it is securely attached.
- Page 11 8-2 Lubrication and internal cleaning NOTICE • iCare has preset lubrication modes optimal for various handpiece types. Lubricate and clean handpieces by following the instruction below. 1) Turn on (I side) the Power Switch. 2) Press the Joint Select Button to select the joint to which handpiece is attached. The relevant LED light will illuminate.
-
Page 12: Maintenance Of Icare
Chuck Cleaning Nozzle *C2 Type Fig. 20 Fig. 21 • Do not clean the chuck of NSK Straight Handpieces as this may cause handpiece malfunction. CAUTION NOTICE • Only Joint "4" is available for chuck cleaning. • Clean the chuck at least once a week. - Page 13 Unit as shown in Fig. 26. • Replace immediately with a new Oil Absorber Sheet when signs of debris appear. CAUTION • Dispose of used Oil Absorber Sheets as medical waste according to the laws and regulations in your country. Fig. 26 (CS5) iCare-EN_140507.indd 2014/05/22 9:03:00...
- Page 14 * For replacement Fuse, refer to the Spare Parts List. Fig. 30 • Use only the fuse which NSK specifies. • If you cannot identify the cause for the blowout of the fuse, be sure to contact your Authorized NSK Dealer for an inspection. CAUTION NOTICE • When it is difficult to pull out the fuse holder, pull it out while pushing the ratchet with a hard-tipped object.
- Page 15 13) Attach the two screws in the reverse order of "3)". 14) Insert the air tube into the air filter connector. Screw Air Tube Connector Ring Fig. 31 Fig. 32 Case Supporter Lock Button Fig. 33 Fig. 34 (CS5) iCare-EN_140507.indd 2014/05/22 9:03:02...
-
Page 16: Periodical Maintenance Checks
• When installing and removing the air filter, apply Maintenance Oil onto the O-ring of the case. CAUTION Periodical Maintenance Checks Perform periodical maintenance checks every three months, referring to the check sheet below. If any abnormalities are found, contact your Authorized NSK Dealer. Points to check Details Connection of AC power cord Confirm whether the AC power cord is completely inserted all the way into the inlet. -
Page 17: Error Led
When a problem is detected, check the following again before requesting service. If none of these are applicable or if the trouble is not remedied even after an action has been taken, a failure of this product is suspected. Contact your Authorized NSK Dealer. -
Page 18: Specification
Warranty is voided should the product be not used correctly or for the intended purpose or has been tampered with by unqualified personnel or has had non NSK parts installed. Replacement parts are available for seven years beyond discontinuation of the model. -
Page 19: Option Parts List
Z280042 For Endo MateTC2/TC, TASKAL Wizard head Handpiece Head Filter U1120118 Pack of 200 * Some adaptors cannot be mounted depending on the type of air turbine. Please consult your Authorized NSK Dealer. Spare Parts List Model Order Code Remarks... - Page 20 If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the product. b: Over the frequency range 150kHz to 80MHz, the field strength should be less than 3V/m. (CS5) iCare-EN_140507.indd 2014/05/22...
- Page 21 'P ' is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer. NOTE1: At 80MHz and 800MHz, the higher frequency range applies. NOTE2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. (CS5) iCare-EN_140507.indd 2014/05/22 9:03:04...
