Installation, start up and operating manual –
Radio control BRICK and PAIL
CORRECT INSTALLATION OF THE
EQUIPMENT
The installation of the radio control unit must only be undertaken by
qualified competent persons who have been authorised to carry out its
correct installation according to the instructions and who will assume
total responsibility for any possible injury to persons or damaged to
things caused by errors in the wiring of the receiver, of any non
observance of safety regulations, use of unsuitable materials for the
installation of the receiver and the lack of or incomplete testing of the
equipment following installation.
Wiring of the RxDIN-CL receiver unit
Model with sealed casing for external installation at the machinery's
electric panel.
Receiver
CL Rubybox

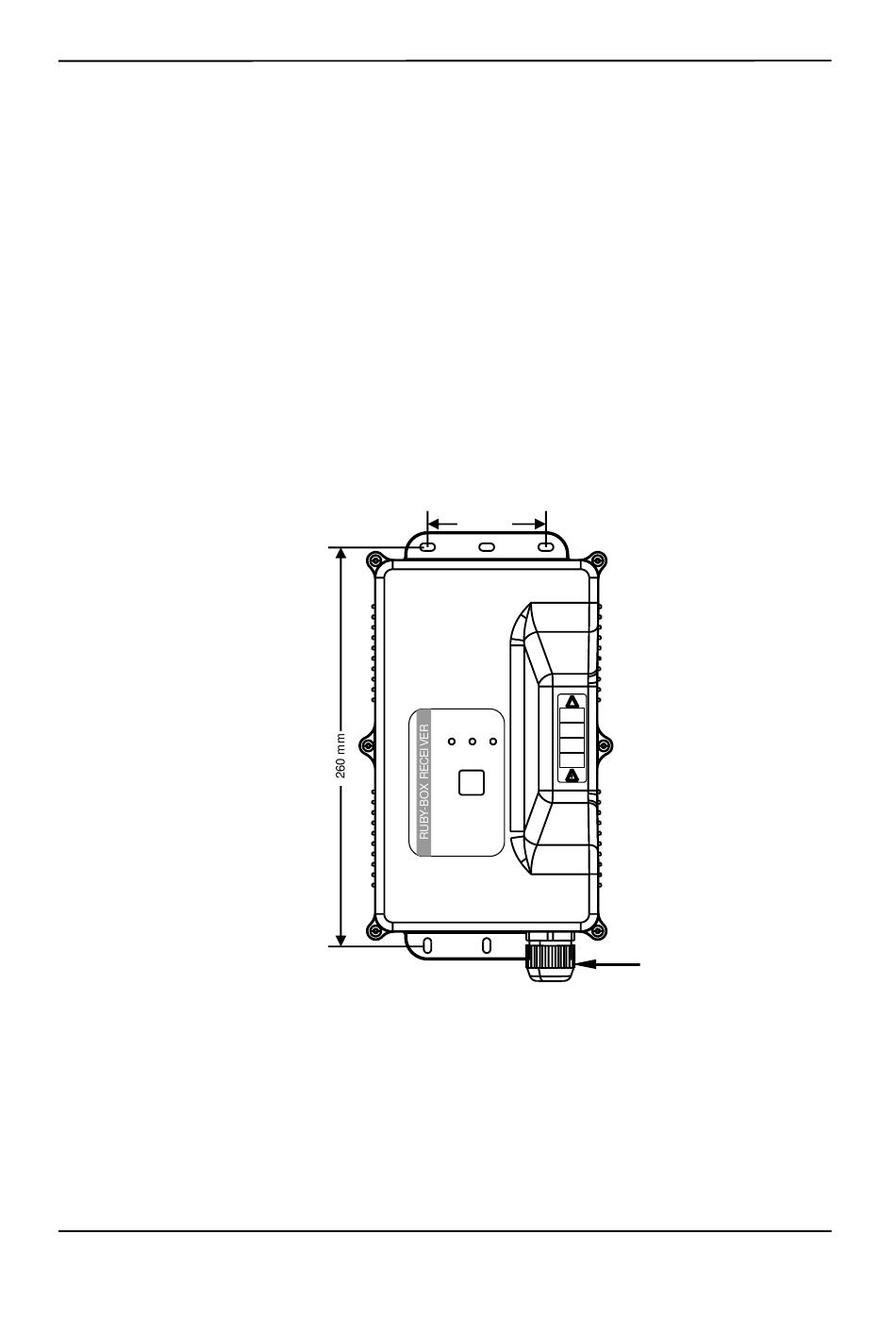

Figure 5
The casing containing the receiver module must be fixed in a position
easily accessible for maintenance and repair.
Do not position the receiver within metallic structures that could shield or
compromise the reception of the radio signals (ie: boxes, cupboards,
girders, tubing, wire fencing, etc).
The sealed casing containing the receiver module must be installed with
the multipolar cable inlet pointing downwards to stop any water getting
into the unit (see Fig. 5).
