- Page 1 EPOC X User Manual 19/02/2020 EMOTIV EPOC X User Manual - Release 19/02/2020...
-
Page 2: Table Of Contents
Introduction Contents Technical Specification Safety Precautions Regulatory compliance Getting Started Get to know your headset User Interface USB Dongle Troubleshooting Further Saline Solution Storage... -
Page 3: Introduction

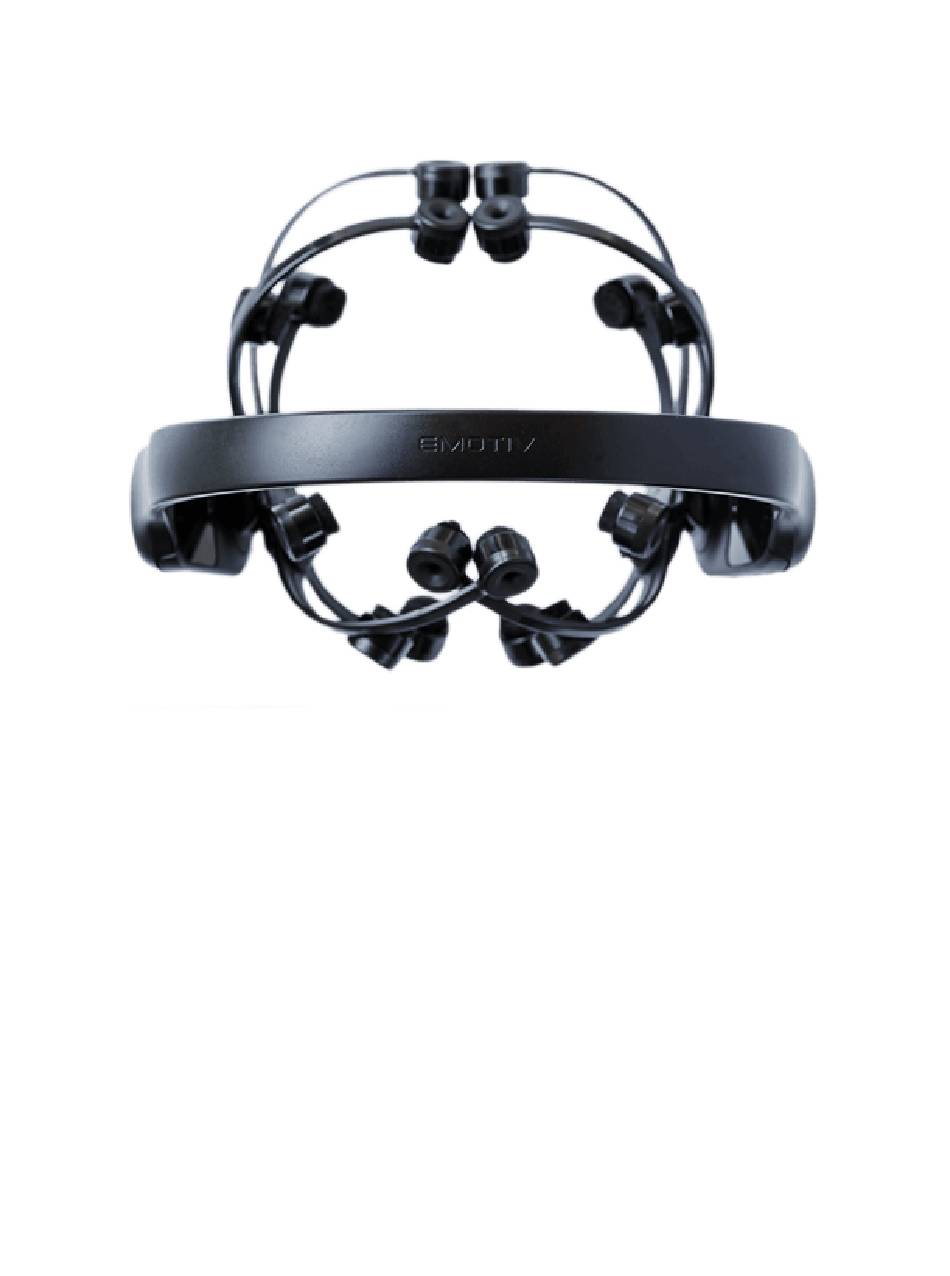

EMOTIV designs consumer Brainwear headsets which allow researchers, commercial companies or quantified selfers learn more about their brains. EPOC X is the latest iteration of the award winning EPOC brand. It is a 14 channel headset with saline soaked felt electrode designed to replace the current EPOC+ and address issues faced by our customers. -
Page 5: Contents
Reversible charge cable 6. Felt Pack - 80pcs a. EMOTIV has replaced the existing hydrator packs with standard a standard felt pack which contains 80pcs of felts that fit EPOC X and EPOC Flex. These are presented in a custom ziplock bag. -
Page 6: Technical Specification
Technical Specification Number of Channels 14 (plus CMS/DRL references, P3/P4 locations 10-20 positions AF3, F7, F3, FC5, T7, P7, O1, O2, P8, T8, FC6, F4, F8, AF4 Sampling Method Sequential sampling. Single ADC Sampling Rate 128 SPS / 256 SPS (2048 Hz internal) EEG Resolution 14 bits 1 LSB = 0.51μV (16 bit ADC, 2 bits instrumental noise floor is discarded), settings... -
Page 7: Safety Precautions
Safety Precautions ● EPOC X is a consumer product; it is not intended to use for in-patient healthcare or in hazardous environments. ● EPOC X is designed for use at room temperature; rapid changes in temperature will affect the performance of the amplifiers and increase the noise floor. -
Page 8: Regulatory Compliance
Regulatory compliance EMOTIV products are intended to be used for research applications and personal use only. Our products are not sold as Medical Devices as defined in EU directive 93/42/EEC. Our products are not designed or intended to be used for diagnosis or treatment of disease. - Page 9 Tested for safety and EMC/RF by Bay Area Compliance Laboratories (BACL) a registered NRTL. EPOC X is fully compliant with the relevant standards for Europe / North America and Australia and has been tested to the following standards: ● SAFETY ○...
-
Page 10: Getting Started
Getting Started EMOTIV provides a quick start guide here. h ttps://www.emotiv.com/setup/epoc-x/... -
Page 11: Get To Know Your Headset
(P3 / P4). The EPOC X is designed to provide good coverage of the frontal and prefrontal lobes and also provides coverage of the temporal, parietal and occipital lobes. The images shown above are the sensor locations for the EPOC+ using the international 10-20 system. - Page 12 you can insert your felts. The arms now have decals marking their location if the primary reference location isn’t working for you, please try CMS2 (M2) / DRL2 (M1) to put the references at the mastoid.
-
Page 13: User Interface
Lithium Polymer cell and can take up to two hours. If the power LED does not glow white when you turn it O N , your EPOC X requires charging. Please plug-in the provided USB-C cable into the headset. -
Page 14: Usb Dongle
USB Dongle The universal USB receiver (dongle) uses a proprietary 2.4 GHz protocol to stream data from the headset. We recommend using this to connect to your headset on a PC or Laptop; once connected it remembers the serial number of the headset pairs to allow easy reconnection. The dongle pairing also allows multiple headsets to co-exist and provides a reliable high speed connection over Bluetooth Low Energy (BLE). -
Page 15: Troubleshooting
Troubleshooting If a sensor is not in green, please check that it is making a good contact with the scalp and the sensor is wet. If the subject has thick hair, try to work the sensor under the hair and add additional fluid using the refill opening from the rear. -
Page 16: Storage
Storage When the EPOC X is not in use, it is best to remove all the felt pads and leave them to dry. To keep the headset in optimum condition please rinse the sensors with sterile water after use to remove excess salt.
