Extreme Max Boat Lift Boss Installation Instructions

For beach king, daka, dockrite, extreme max, feighner, lakeshore lorenze, lund, newmans, pier pleasure, ridgeline short-mate, shoremaster, starr, walk on water boat lifts

Advertisement

Quick Links

Before installation, read and understand all instructions and warnings.
All 120 Volt units MUST have electrical ground fault interrupter protection.
WARNING:
Hazardous voltage. Contact may cause electrical shock and injury. Disconnect before servicing.
• Misuse of this product can result in bodily injury, death, or property damage.
• Do not overload the capacity of the lift or drive system. When lifting, do not let the cradle or pulleys make contact with the
lift frame. Serious injury or damage could occur.
• When lowering the lift, go down just far enough so the boat will come off of the lift. Running the system too long in the
down cycle will wind the cable backwards and lift the boat, which could cause serious injury or damage.
• To prevent serious personal injuries or death, do not allow children, swimmers or pets on or near the boat or lift while it is
in operation as they may become caught under the boat and suffer pinch, amputation or other serious injuries.
• In the event of unintentional or erratic operation, permanently unplug unit from power source to disable the system and
contact the Extreme Max service department at 651-357-1874.
120 Volt Models
120-Volt Boat Lift Boss models must only be used on an electrical circuit that has ground fault interrupter protection. The
interrupter and its supply circuit MUST be installed to all applicable electrical codes. Any necessary electrical work should
be done by a licensed electrician. Boat Lift Boss should only be connected to power source by a marine-rated, 3-prong
grounded cord. Cord should be inspected regularly to insure good condition. Improper wiring or lack of a properly installed
ground fault interrupter poses a high risk of injury or death.
CAUTION:
120 Volt Models
If the unit will be left unattended, disconnect the unit from power source to prevent damage from lightning and electrical
surges.
12/24 Volt Models
If the unit will be left unattended, disconnect the unit from the power source or move the power switch to the "OFF"
position to prevent damage.
Remote Control Models
Never attempt to use the key switch and the remote control at the same time. Do not have the key in the control box when
you plan to use the remote control to prevent property damage.
*View an installation demonstration on the Extreme Max Products
YouTube channel at: www.youtube.com/extrememaxproducts

INSTRUCTIONS

• Read all instructions and warnings prior to installation and use.
• For use by adults over age 18.
• Wait for the motor to come to a complete stop before
changing directions.
• Do not lift anything other than your boat.
• Put one of the two keys on a floating key chain and the
spare key in a safe place.
Remote Control Models
• Remote range will vary depending upon land topography
and ground clutter (trees, buildings, etc.).
• Do not use remote more than 15 feet (4.5m) from the lift.
This will prevent accidentally exceeding the travel limits
of the boat lift. Never operate the remote out of visual
contact.
Customer Service: 651-357-1862 | service@extrememax.com | www.extrememax.com
Boat Lift Boss™ Installation Instructions
For Beach King
®
, Daka
®
, Dockrite
Pleasure
®
, Ridgeline
®
Short-Mate

IMPORTANT INFORMATION

®
, Extreme Max
®
, Feighner
®
, Lakeshore
®
, ShoreMaster
®
, Starr
®
, Walk on Water

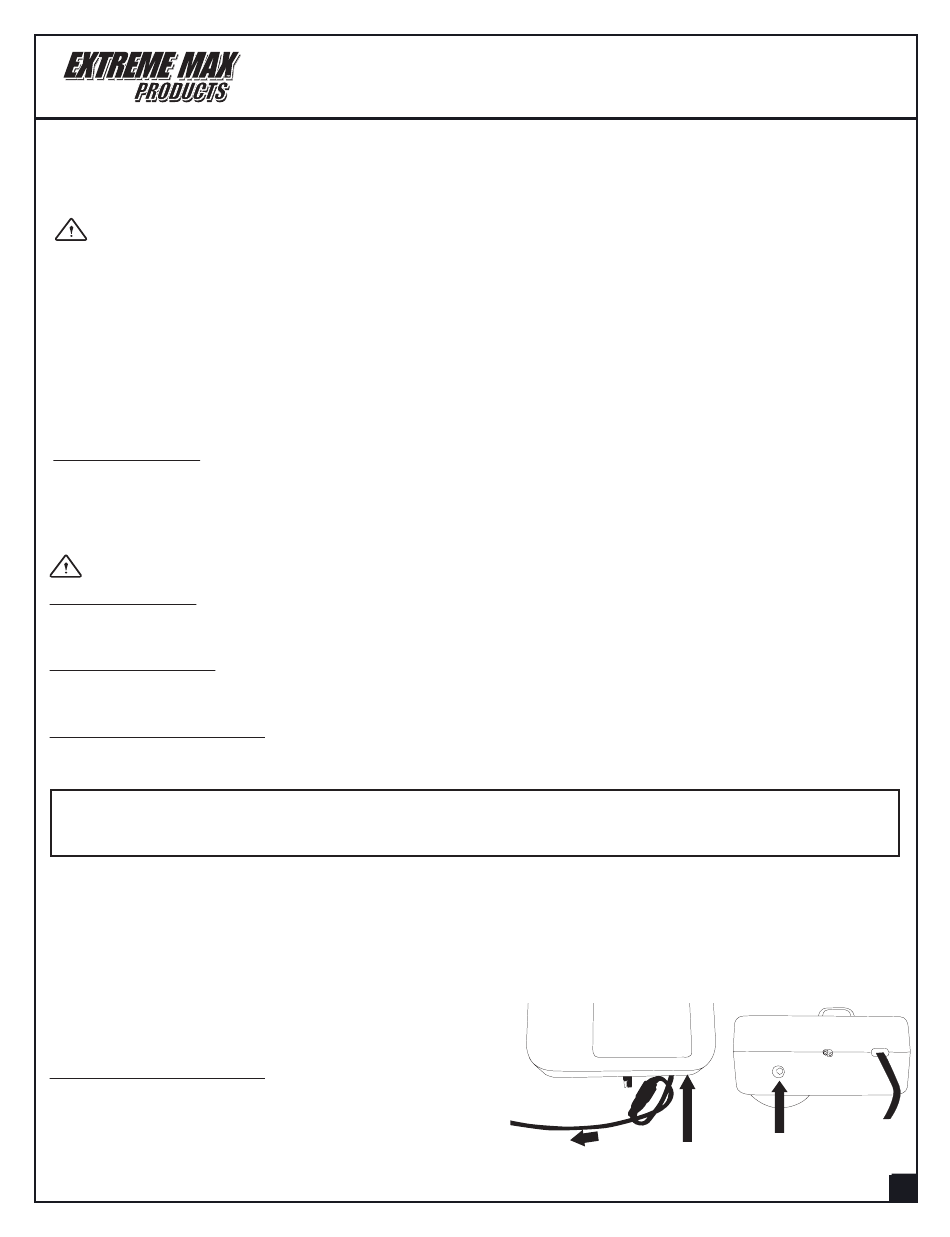

Loop the electrical cord connection as shown to help
secure connection.
To Ground Fault
Protected Circuit
®
Lorenze
®
, Lund
®
, Newmans
®
, Pier
®
Boat Lifts (Kit 3005.7204)
Opening
1
1
3151ex0618

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Boat Lift Boss and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Extreme Max Boat Lift Boss

  • Page 1 120 Volt Models 120-Volt Boat Lift Boss models must only be used on an electrical circuit that has ground fault interrupter protection. The interrupter and its supply circuit MUST be installed to all applicable electrical codes. Any necessary electrical work should be done by a licensed electrician.
  • Page 2 Important: The Puller Bolt is not used for installation. It is required for uninstalling your Boat Lift Boss. Please put the Puller Bolt in a safe place. Instructions can be found on the Boat Lift Boss™ Maintenance & Service sheet in the motor packaging box.
  • Page 3 (2.76 kgF) (Do not over tighten.) Replace black rubber plug. Step 4 - Final Connections & Adjustments Install torque arm to Boat Lift Boss™ bracket and lower right corner of the lift box and fasten as shown. Note: On some models, a 3/8” (0.95cm) hole may need to be drilled to fasten the bottom of the arm.
  • Page 4 4) Use a ratchet with a 15/16” socket to install puller bolt into the threads located behind the black plug. 5) Hand tighten the threaded bolt. With the socket wrench, tighten 1/4 to 1/2 turn or until Boat Lift Boss™ separates from the boat lift.
  • Page 5 12 Volt Battery LIMITED WARRANTY Extreme Max™ Boat Lift Boss™ Direct Drive Systems are conditionally warranted for consumer use for 2 years after the date of retail purchase. Warranty valid only in the USA and Canada. Extreme Max™ Boat Lift Boss Direct Drive Systems are conditionally warranted to the original retail purchaser to be free from defects in material and workmanship, ordinary wear and tear expected.
