Bell System Practices Plant Series Adjustments page 25
Transmitter-distributor units
Hide thumbs
Also See for Plant Series:
- Adjustments (150 pages) ,
- Installation, operation and maintenance manual (22 pages) ,
- Identification, installation, connections, and maintenance (16 pages)
Advertisement
SENSING BAIL
ISS 3, SECTION 573-127-700

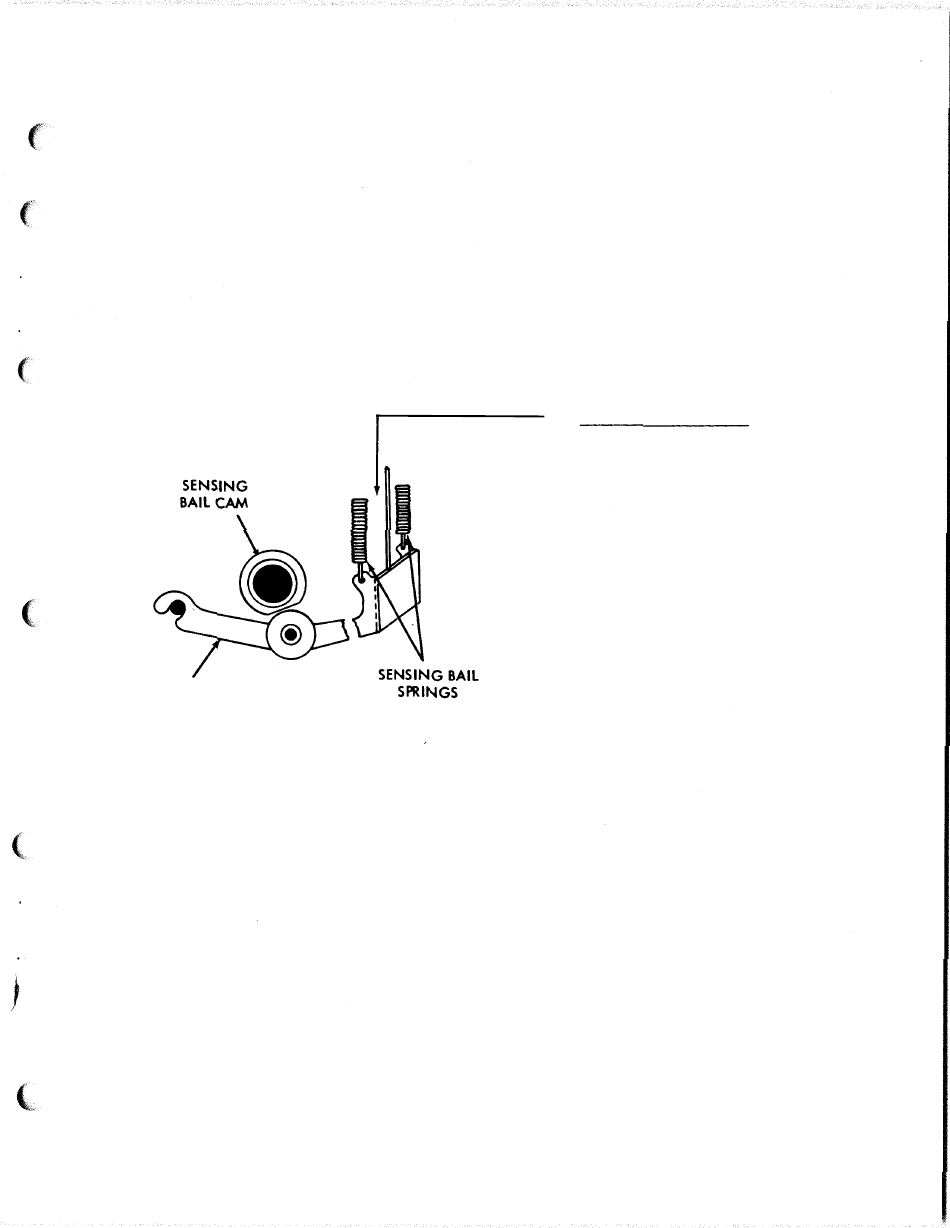

SENSING BAIL SPRINGS
TO CHECK
WITH BLANK TAPE UNDER TAPE LID, TRIP
CLUTCH MAGNET AND MANUALLY ROTATE
SHAFT UNTIL SENSING BAIL IS IN UPPER
MOST POSITION. APPLY SCALE TO BAIL
BETWEEN SPRINGS.
REQUIREMENT
MIN.
l/4 OZ.
MAX.
OZ.
2
TO START SENSING BAIL MOVING.
Page 25
