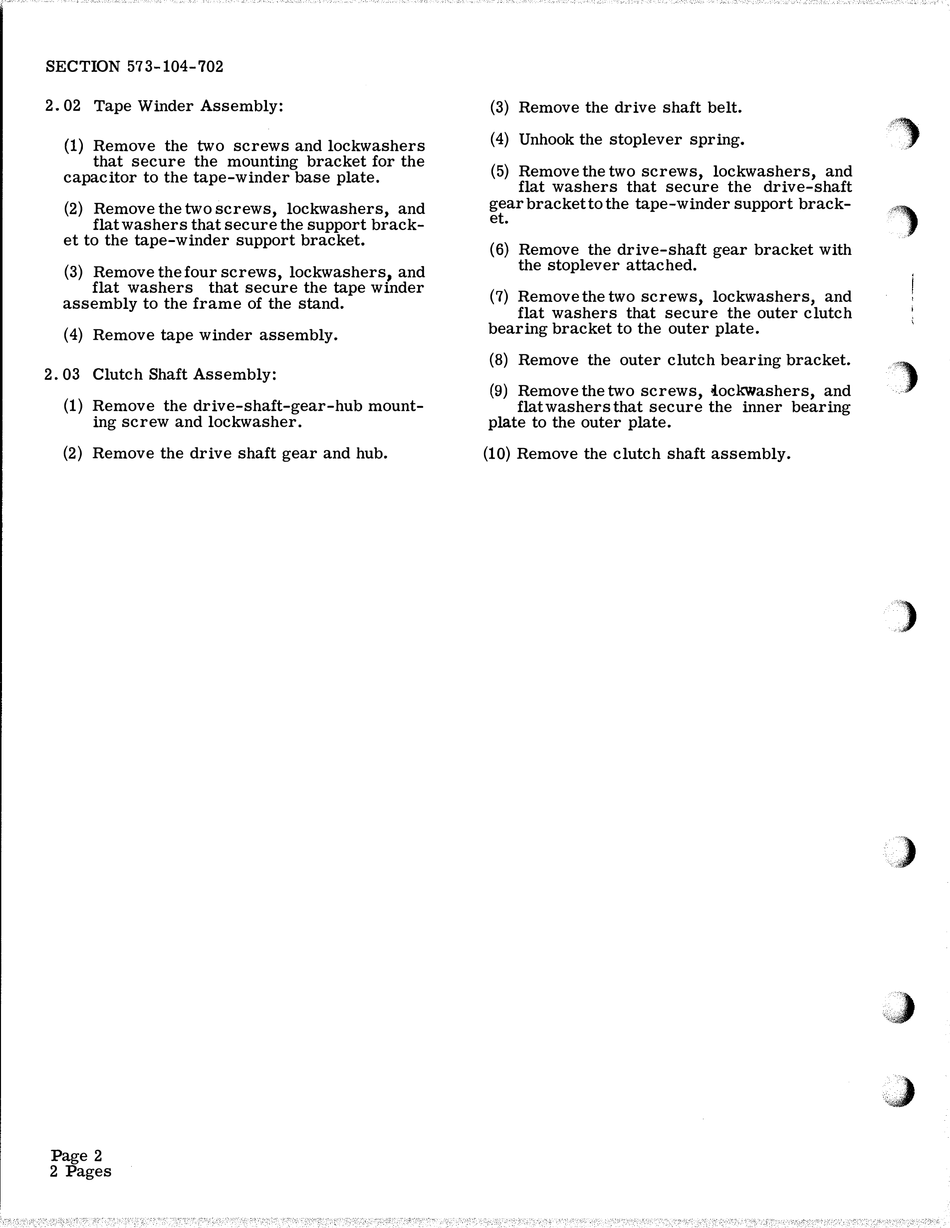

Bell System Practices Plant Series Disassembly And Reassembly page 2

573-104-702
SECTION
2. 02
Tape Winder Assembly:
(1)
Remove the two screws and lockwashers
that secure the mounting bracket for the
capacitor to the tape-winder base plate.
(2)
Remove the two screws, lockwashers, and
flat washers that secure the support brack­
et to the tape-winder support bracket.
(3)
Remove the four screws, lockwashers, and
flat washers that secure the tape winder
assembly to the frame of the stand.
( 4)
Remove tape winder assembly.
2. 03
Clutch Shaft Assembly:
(1)
Remove the drive-shaft-gear-hub mount­
ing screw and lockwasher.
(2)
Remove the drive shaft gear and hub.
2
Page
2
Pages
(3)
Remove the drive shaft belt.
( 4)
Unhook the stoplever spring.
(5)
Remove the two screws, lockwashers, and
flat washers that secure the drive-shaft
gear bracket to the tape-winder support brack­
et .
(6)
Remove the drive-shaft gear bracket with
the stoplever attached.
(7)
Remove the two screws, lockwashers, and
flat washers that secure the outer clutch
bearing bracket to the outer plate.
(8)
Remove the outer clutch bearing bracket.
(9)
Remove thetwo screws, iockwashers, and
flat washers that secure the inner bearing
plate to the outer plate.
(10)
Remove the clutch shaft assembly.
