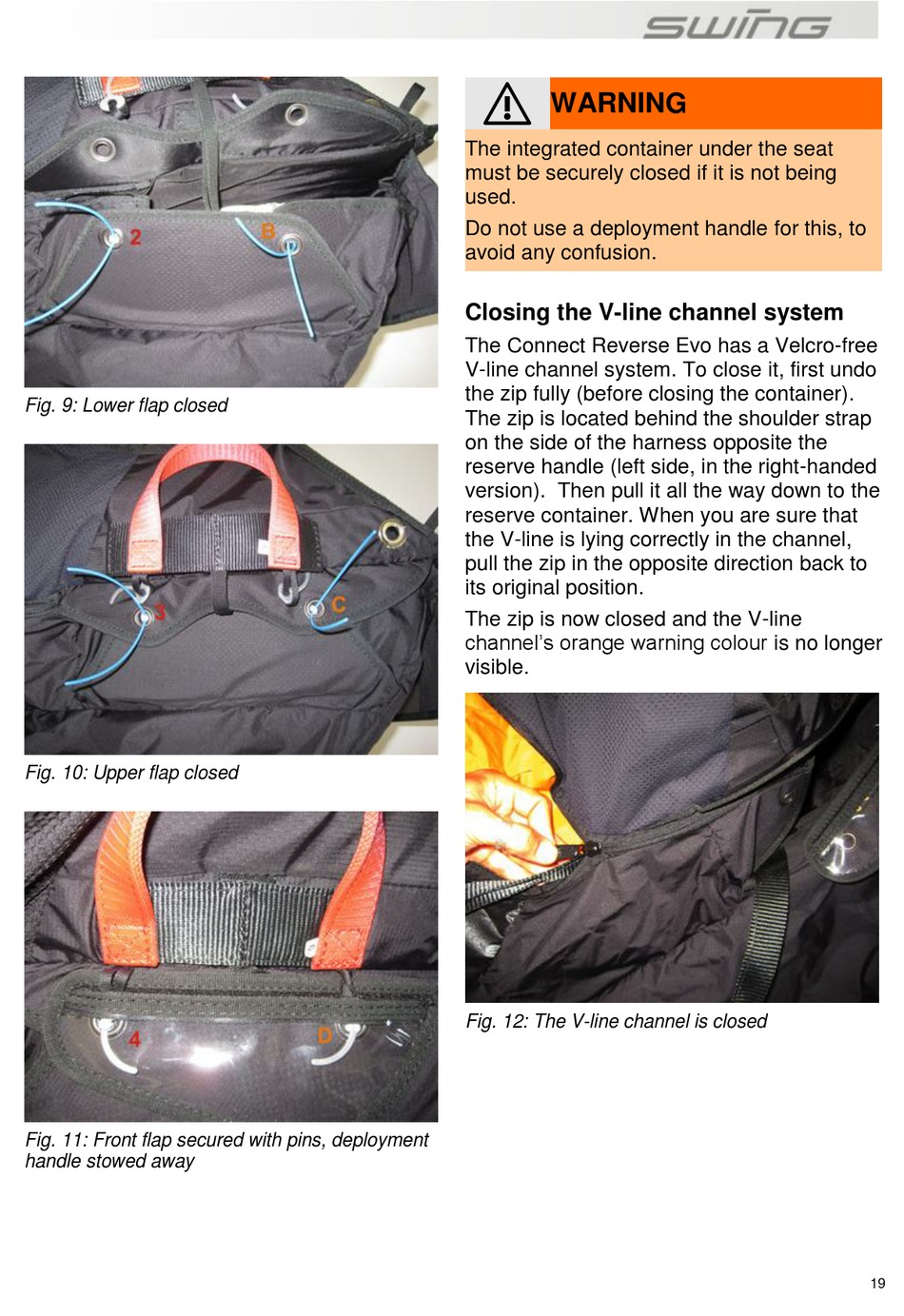

Fig. 9: Lower flap closed
Fig. 10: Upper flap closed
Fig. 11: Front flap secured with pins, deployment
handle stowed away
⚠
WARNING
The integrated container under the seat
must be securely closed if it is not being
used.
Do not use a deployment handle for this, to
avoid any confusion.

Closing the V-line channel system

The Connect Reverse Evo has a Velcro-free
V-line channel system. To close it, first undo
the zip fully (before closing the container).
The zip is located behind the shoulder strap
on the side of the harness opposite the
reserve handle (left side, in the right-handed
version). Then pull it all the way down to the
reserve container. When you are sure that
the V-line is lying correctly in the channel,
pull the zip in the opposite direction back to
its original position.
The zip is now closed and the V-line
channel's orange warning colour is no longer
visible.
Fig. 12: The V-line channel is closed
19
