Instructions: how to attach the Mistral 5 paramotor risers
In this guide we describe how to set up your Mistral 5 with paramotor risers.
Please take extreme care when you are doing this and double-check everything one final
time when you have finished.
Caution: After you have finished attaching the paramotor risers, it is essential that
you inflate your glider before you next fly it and check that everything is in
order
1. Preliminary

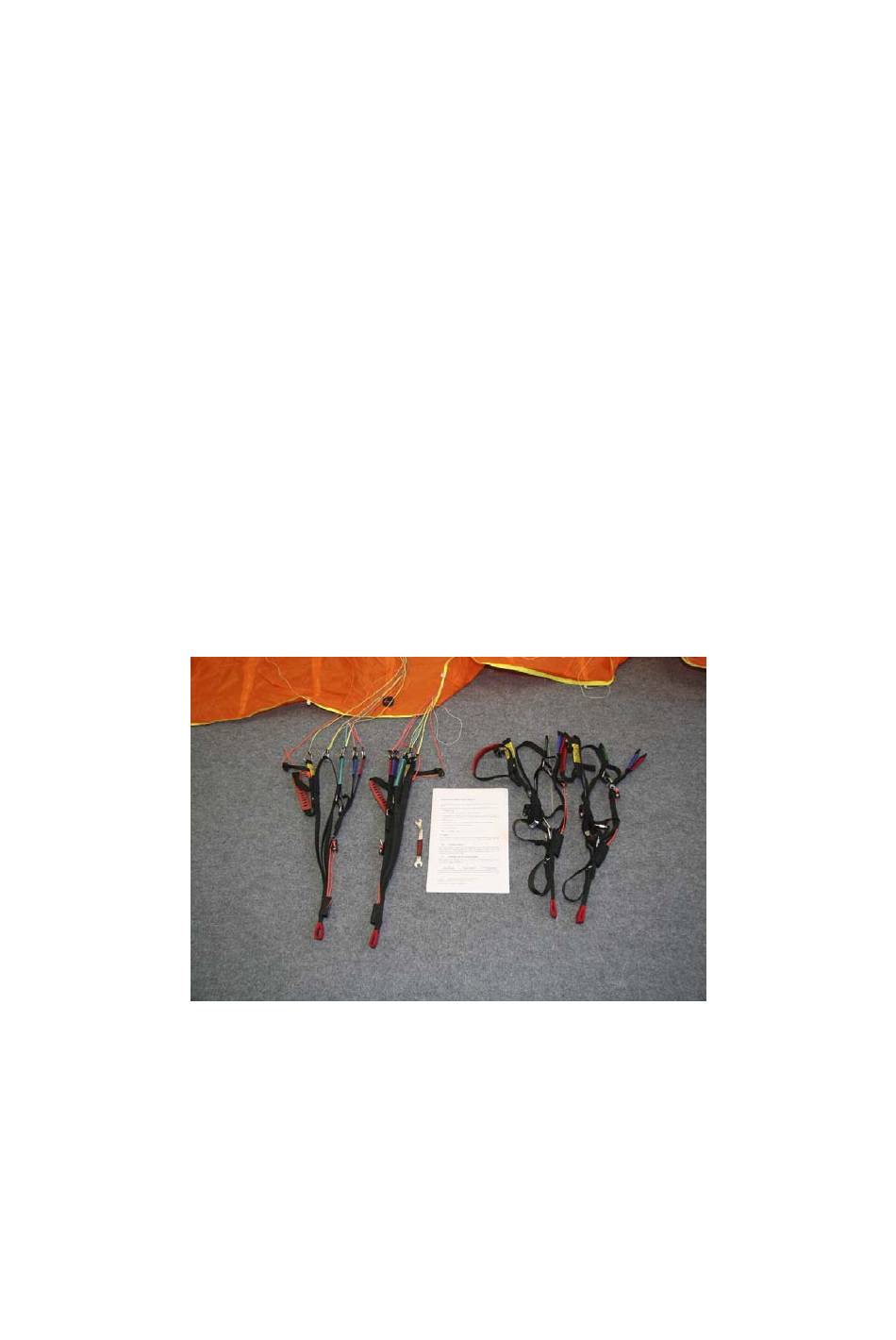

You will need the following items to set up your Mistral 5 with paramotor risers (Fig. 1):
1. Paramotor risers for Mistral 5. We have developed paramotor risers specifically for the
Mistral 5. These are very different from paramotor risers for other models of paraglider. A
quick-link with an O-ring is attached to the right-hand B-riser. This should make it easier
for you to change the risers and will be left over once you have finished.
2. Your Mistral 5
3. A small spanner (7mm wide) to open the quick links
4. A place to hang up the risers
5. These instructions
2. How to change over the risers
We recommend that you hang up the risers in pairs beside one another when you change
them over i.e. the two right-hand risers together and then the two left-hand risers together
(see Fig. 2).
Fig. 1:
Items required

Advertisement

loading
Need help?

Need help?

Do you have a question about the Mistral 5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Swing Mistral 5

  • Page 1 1. Preliminary You will need the following items to set up your Mistral 5 with paramotor risers (Fig. 1): 1. Paramotor risers for Mistral 5. We have developed paramotor risers specifically for the Mistral 5. These are very different from paramotor risers for other models of paraglider. A quick-link with an O-ring is attached to the right-hand B-riser.
  • Page 2 Fig. 2: risers hanging up Check that you have the correct pairs of riser hanging up together before you start to change them over. You have done this correctly if the brake pulleys are facing in the same direction (Fig. 3). Standard riser with Paramotor riser with lines...
  • Page 3 2.1. Transferring the A quick links Start with the lines on the A1 riser. Open the quick link (Fig. 4), remove it from the riser (Fig. 5) and hang it on the A1 riser of the paramotor riser, facing in the same direction (Fig. 6). Fig.
  • Page 4 Fig. 8: B-quick link open and showing O- Fig. 9: Paramotor riser with B-quick link ring undone (to the right-hand side) Now take the shackle with the stabiliser lines and connect it to the C1 strap on the paramotor riser (Fig. 11). Fig.
  • Page 5 2.3. Transferring the C2 quick link The C2 quick link is transferred in the same way to the A quick link. When you have swapped over the C2 quick link, all of the rigging lines will be on the paramotor riser. Only the brake line will still be on the standard riser (Fig.
  • Page 6 Fig. 16: Brake line in upper pulley Then make a loose knot in the brake line at the mark (behind the pulley, see Fig. 17). Now attach the brake handle to the brake line again. To do this, feed the brake line through the loop on the brake handle until just before the knot (Fig.
  • Page 7 When making the knot, take care that the brake line is the same length as it was before. The brake line must not be shortened. You have now changed over the first riser. All of the lines should now be on the paramotor riser, none of them twisted and all of the quick link openings should be facing inwards (away from the brake pulley).
  • Page 8 4. Final words We hope that you have many memorable flights with your Mistral 5, whether you are flying in the mountains, on winch or with a motor.
