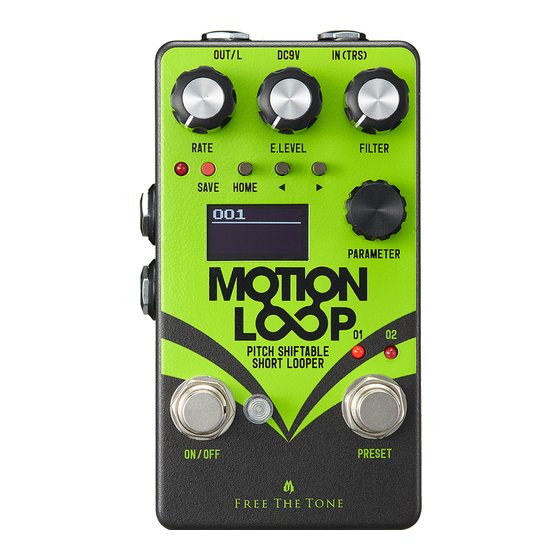

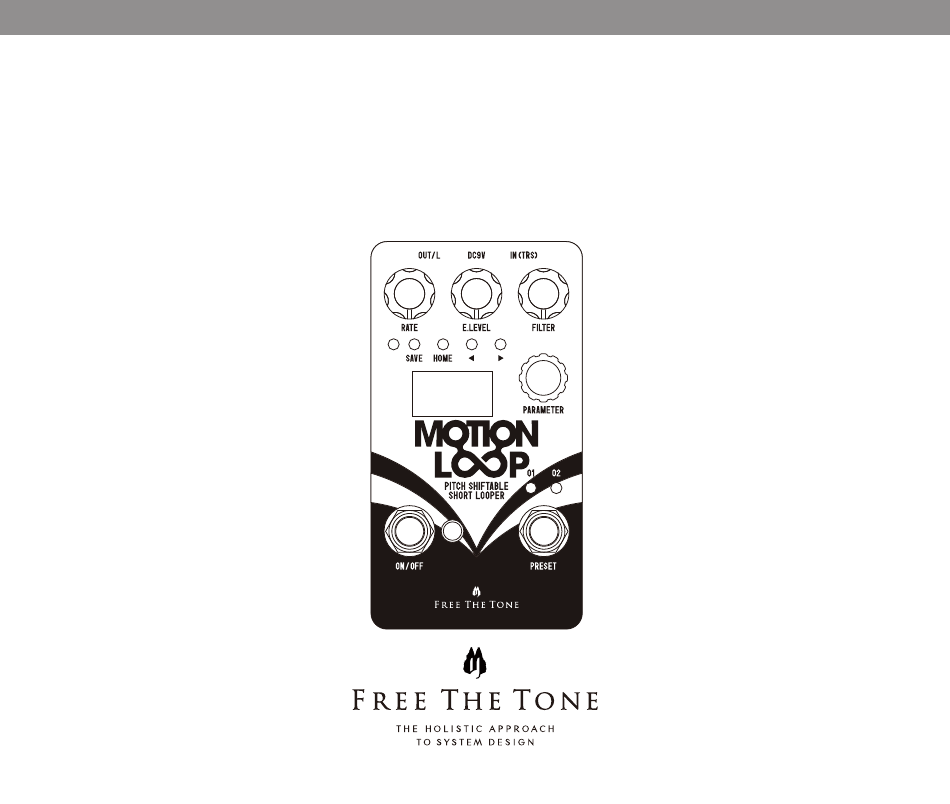

- Page 1 MOTION LOOP PITCH SHIFTABLE SHORT LOOPER Owner’s Manual Ver 1.0...
-
Page 2: Table Of Contents
Welcome to the world of MOTION LOOP .............. - Page 3 Safety Precautions ........................24 Handling Precautions • Never connect or disconnect plugs to/from the input/output terminals on the MOTION LOOP when the external device that drives speakers is powered. Doing so can cause noises and damage the speakers.
-
Page 4: Controls And Indicators
Controls and Indicators Front Panel RATE Knob / KNOB-L E.LEVEL Knob / KNOB-C FILTER Knob / KNOB-R Adjusts the sampling duration for Adjusts the balance between the original Adjusts the filter operation. loop operation. sound and effect level. Turning the knob clockwise increases the effect level. -
Page 5: Top Panel
NOTE In addition to the AC adapter, the MOTION LOOP can be powered by a 006P (9 V) alkaline battery. Battery life for continuous use is about 2 hours (this depends on the type and usage condition of the battery). Please note that a manganese dry cell cannot be used due to its short life. -
Page 6: Display Contents
HOME screen and Function Assignment screen. the SETUP screen. 1. HOME screen: Indicates a preset number and preset name. 3. SETUP screen: Displayed when the MOTION LOOP’s Global functions such as MIDI channel setting are set. Preset Number Shows that there is a next page... -
Page 7: Welcome To The World Of Motion Loop
RATE knob. If there is no sampled input signal when the effect is turned on, the MOTION LOOP waits for the input signal while keeping the effect in ready status and starts the loop operation as soon as it receives the input signal. If the input signal level is lower than about -40 dBm, then the MOTION LOOP assumes that there is no input signal. -
Page 8: Rate Knob And Grid Mode
RATE Knob and Grid Mode When the MOTION LOOP performs the loop process, the length (in time) of the sampled sound to be looped depends on the duration set by the RATE knob. When there is no BPM setting (i.e. OFF), the RATE knob operates with BPM 60 as its reference. If the knob is set to the center position, a sampled sound about 250 ms in length is looped. -
Page 9: Basic Operations
If Filter mode is set to ENVELOPE, SYNC BMP, or SYNC SPEED in the Edit menu, this knob is deactivated. Recalling Presets 128 presets provided by the MOTION LOOP can be recalled in various ways. Use PRESET Footswitch to Switch between Presets 1 and 2 Press the PRESET footswitch to switch the presets. -
Page 10: Recall Desired Preset From 128 Presets
The MOTION LOOP’s presets are switched by receiving a program change number MIDI signal from an external MIDI device. The MIDI channel of the device that sends the program change number has to be the same as the MIDI channel of the MOTION LOOP. -
Page 11: Edit Menu
Edit Menu The effects unit’s parameters in each preset and the function of each knob, PARAMETER encoder, or footswitch, etc. are changed in Edit mode. How to Confirm Parameter Changes or Settings 1. Press the HOME switch to show the HOME or Assignment Display screen. 2. -
Page 12: Effect Settings
Effect Settings Effect sounds of the MOTION LOOP are created in the following workflow: ➔ ➔ ➔ PITCH SETTING LOOP SETTING WAVEFORM SETTING DELAY SETTING PITCH SETTING 1) OCTAVE UP/DOWN: Setting for whether to change the pitch of the sampled sound. -
Page 13: Loop Setting
LOOP SETTING 1) LOOP LEVEL: Sets whether to increase/decrease the signal level at every loop repeat. Parameter: -100 to -001: The signal level decreases at every loop repeat. 000: Loops are repeated at the same level. (Default) 001 to 100: The signal level increases at every loop repeat. 2) RESET LEVEL: Sets whether to reset the level set by LOOP LEVEL. -
Page 14: Waveform Setting
NARROW: Narrow filter range. WIDE: Wide filter range. (Default) 3) FILTER MODE: In addition to manual use, the MOTION LOOP’s filter operation can respond to some external conditions. Parameter: MANUAL: Filter operation is manipulated by turning the knobs by hand. (Default) ENV: Filter operation responds to input waveform envelope. -
Page 15: Delay Setting
DELAY SETTING 1) SUBDIVISION: Sets the delay length according to the current tempo. Parameter: OFF: Turns off the delay effect. (Default) 1: The length of the delay sound is equal to a whole note (semibreve). 1/2: The length of the delay sound is equal to a half note (minim). 1/4: The length of the delay sound is equal to a quarter note (crotchet). -
Page 16: Knob&Exp Assign - Assigning Second Function To Knobs, Encoder Or Exp/Cv/Fs Terminal
KNOB&EXP ASSIGN - Assigning Second Function to Knobs, Encoder or EXP/CV/FS Terminal A second function can be assigned to each knob or PARAMETER encoder. By pressing the HOME switch until the display shows the Assignment Display screen, the function of each knob/PARAMETER encoder is switched to its assigned ones. 1) KNOB-L ASSIGN, KNOB-C ASSIGN, KNOB-R ASSIGN (common) For functions assignable to each knob, please refer to the List of Assignable Functions. -
Page 17: Preset Name - Naming Presets
PRESET NAME - Naming Presets Each preset can be named. A character can be inserted at the cursor position (inverted display). Press the ◀/▶ cursor key to move the insertion point. Turn the PARAMETER encoder to select the desired character. To delete a character, press the PRESET footswitch once: the character at the cursor position is deleted and the entire label is shifted leftward. -
Page 18: Exp Calb - Calibration Of Expression Pedal
EXP CALB - Calibration of Expression Pedal An expression pedal connected to the EXP/CV/FS terminal can be used to adjust a MOTION LOOP’s parameter in real time. Since expression pedals have various operating characteristics, the MOTION LOOP can calibrate the expression pedal to be used. Use an expression pedal with variable resistance from 10kΩ... -
Page 19: Encoder - Setting For Parameter Encoder
ENCODER - Setting for PARAMETER Encoder Selects the function of the PARAMETER encoder. 1. Select the ENCODER screen. 2. Press the SAVE switch. 3. Turn the PARAMETER encoder to select the desired function. 4. Press the SAVE switch to save the setting. Parameter: PS SEL: Preset Select (Default) PITC MD: Pitch Mode... -
Page 20: Usage Of Exp/Cv/Fs Terminal
3. This completes the initialization. FIRMWARE - Firmware Update Users can update the MOTION LOOP’s firmware to the latest one. For the latest firmware, instructions for update and connection, please visit the product page or support page in our website. -
Page 21: List Of Parameters And Corresponding Midi Cc Numbers
List of Parameters and Corresponding MIDI CC Numbers The MOTION LOOP can switch presets or change all of the parameters via MIDI signals. The table below shows the MIDI signal assignments. Functions MIDI CC Numbers Value Ranges OCTAVE UP/DOWN 0: NONE, 1: UP1, 2: UP2, 3: DOWN1, 4: DOWN2... -
Page 22: List Of Assignable Functions
List of Assignable Functions Title Default Parameter Function NONE PIT VAL PITCH VALUE PIT SPD PITCH SPEED KNOB-L DLY FB DELAY FEEDBACK ASSIGN DLY MIX DELAY MIX SFT CLP SOFT CLIPPING LP LVL LOOP LEVEL NONE PIT VAL PITCH VALUE PIT SPD PITCH SPEED ... -
Page 23: Main Specifications And Ratings
Title Default Parameter Function FLT MOD FILTER MODE SUBDIV SUBDIVISION ENCODER ASSIGN DLY TRL DELAY TRAIL DRY SET DRY SETUP ONOF FS ON/OFF FOOTSWITCH ONOF EP ON/OFF EXP PEDAL DRY ONOF DRY ON/OFF LP RATE LOOP RATE PIT VAL PITCH VALUE EXPRESSION PEDAL/ FOOTSWITCH ASSIGN... -
Page 24: Safety Precautions
Turn off the unit and unplug the AC adapter from the outlet and contact injury may result. your local dealer or Free The Tone for repair in the case of any of the following: Do not use solvents (such as benzine, paint thinner) on the unit, since •...
