John Lewis
Thank you for purchasing this Match tall storage unit. Please read the instructions carefully before use to
ensure safe and satisfactory operation of this product.
PRE-ASSEMBLY PREPARATION
Please ensure instructions are read in full before attempting to assemble this product.
Necessary Tools
Please check the pack contents before attempting to assemble this product.A full checklist of compo-
nents is given in this leaflet. If any components are missing, please contact the John Lewis Helpline.
This product is HEAVY, it should be assembled as near as possible to the point of use. TAKE CARE
WHEN LIFTING to avoid personal injury and (or) damage to the product.
This product takes approximately 60 MINUTES to assemble with 2 PEOPLE.
The fittings pack contains SMALL ITEMS which should be KEPT AWAY FROM YOUNG CHILDREN.
Read this leaflet in full before commencing assembly.
If you are missing some fittings please contact our spare parts helpline on 0330 005 9435.
Opening hours are 9am - 5pm Monday to Friday.

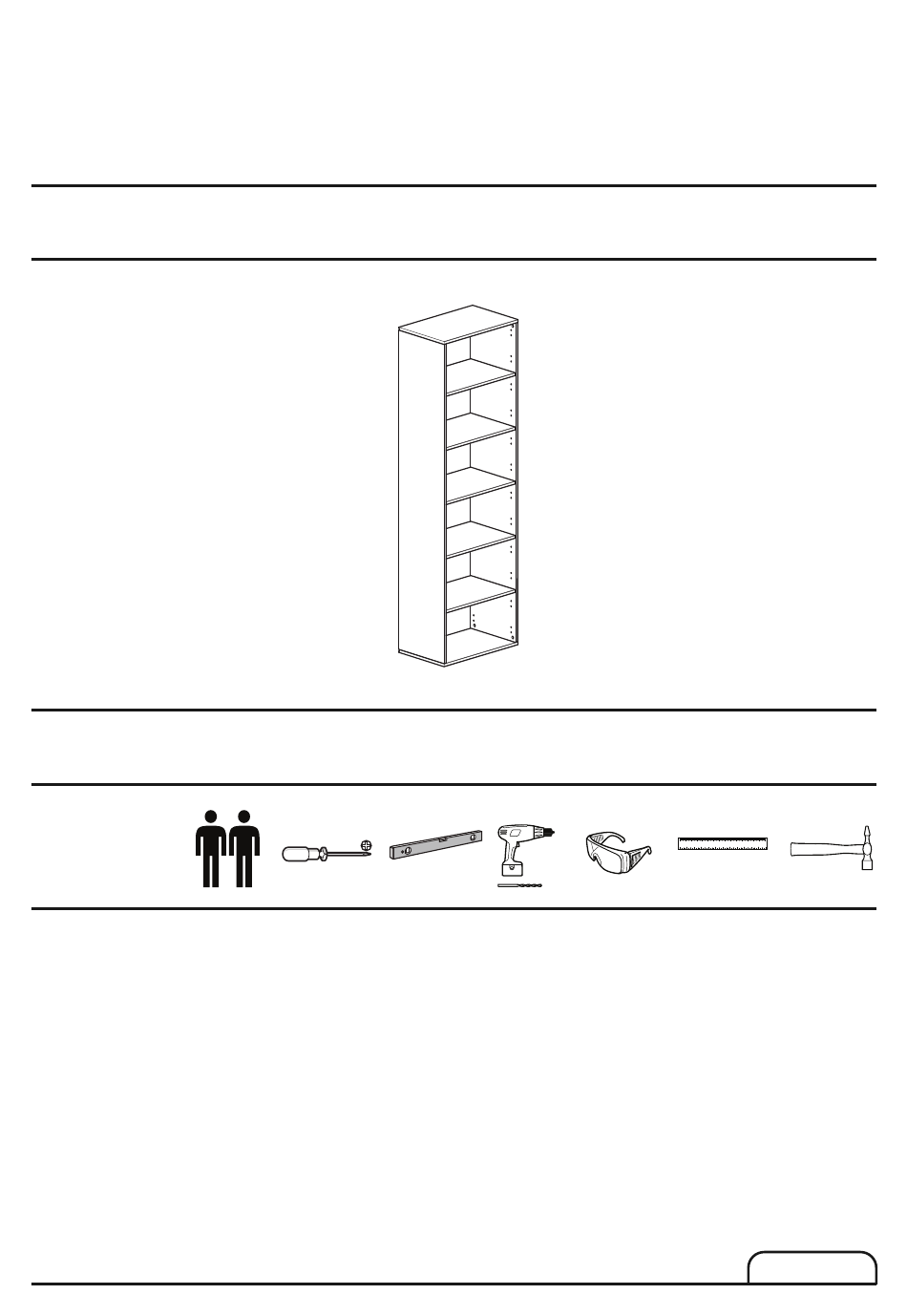

Match tall storage unit
Stock Code: 81610115 - 81610114 - 81610113
Screwdriver
Spirit level
Drill
0
0
20
30
40
50
60
70
80
90
00
0
20
0
2
3
4
Ruler/tape
Eye protection
measure
MAT 01/14 rev. 02 - 02/10/14
30
40
50
5
6
Small hammer
Page 1
Advertisement
Related Manuals for John Lewis Match 81610115
Summary of Contents for John Lewis Match 81610115
- Page 1 Please check the pack contents before attempting to assemble this product.A full checklist of compo- nents is given in this leaflet. If any components are missing, please contact the John Lewis Helpline. This product is HEAVY, it should be assembled as near as possible to the point of use. TAKE CARE WHEN LIFTING to avoid personal injury and (or) damage to the product.
- Page 2 Fittings checklist 30mm Metal dowel x 8 Cam lock x 8 Wooden dowel x 8 Wedge x housing x 20 Wedge x dowel x 20 25mm Nail x 30 Nail guide x 1 Levelling Wedge x 2 Support foot x 4 27mm Connector x 2 4MAx15 Connect.
-
Page 3: Parts Checklist
Parts checklist Page 3 MAT 01/14 rev. 02 - 02/10/14... - Page 4 Step by step assembly instructions Step One ttach 4x metal dowels ( ) into the pre-drilled holes on top/bottom panels (1) as shown. Use a screwdriver to turn fitting ( ) clockwise to fix. Step Two ttach 4x wedgefix housing (D) into the pre-drilled holes on shelves(3) as shown. Page 4 MAT 01/14 rev.
- Page 5 Step by step assembly instructions Step Three Place 8x cam lock (B) into the holes on side panels (2) as shown, arrow pointing towards the bolt. ttach 8x wooden dowels (C) into the pre-drilled holes on side panels (2) as shown. ttach 20x shelf support (D) into the holes on side panels (2) as shown.
- Page 6 Step by step assembly instructions Step Four ttach side panels (2) to top/bottom panels (1) as shown. Ensure metal dowels ( ) and wooden dowels (C) are aligned correctly with the holes of matching parts before attaching. Secure side panels (2) to top/bottom panels (1) using a screwdriver to turn fitting (B) clockwise to fix. Step Five Position back panel (4) as shown, back panel holes indicate upper part.
- Page 7 Step by step assembly instructions Step Six ttach back panel (4) onto back side of the unit using 30x nails (F), with the help of the nail guide (G). Important: The cabinet MUST be ‘square’ when the back is attached. Step Seven ttach 4x support foot (L) to bottom with 8x screw(M).
- Page 8 Step by step assembly instructions Step Eight With help of an assistant, carefully stand up the unit upright. Step Nine Use 2x levelling wedge (GI) to level the unit. Step Ten Fittings have been supplied in order to join units together. Place units together in their final positon.
- Page 9 Step by step assembly instructions Step Eleven To prevent possible overbalancing we recommend that this unit is secured to a suitable wall by use of two ‘L’ Brackets (P) fitted to the top side of the unit. ttach the 2x brackets (P) onto the top side of the unit using 4x euroscrew (O). Pre-fix brackets (P) to wall, Wall plug and screw not included.
- Page 10 Step by step assembly instructions Step Twelve Position the shelves (3) on the shelf support (E) as shown. Page 10 MAT 01/14 rev. 02 - 02/10/14...
-
Page 11: Care And Maintenance
Wall fixing - if in doubt seek professional advice Wood Brick or Masonry Cavity wall If xing to wood Use an appropriate Special toggle make sure that it wall plug provided you wall plugs are is not chipboard as are sure your wall is needed. -
Page 12: Safety Instructions
It must under no circumstances be used free-standing.No liability will be accepted for damage or injury caused by inadequate fixing or use without fixing. PLEASE KEEPTHESE INSTRUCTIONS FOR FUTURE REFERENCE John Lewis Partnership 171Victoria Street London SWIE 5NN www.johnlewis.com Page 12...
