Instruction Manual
John Lewis

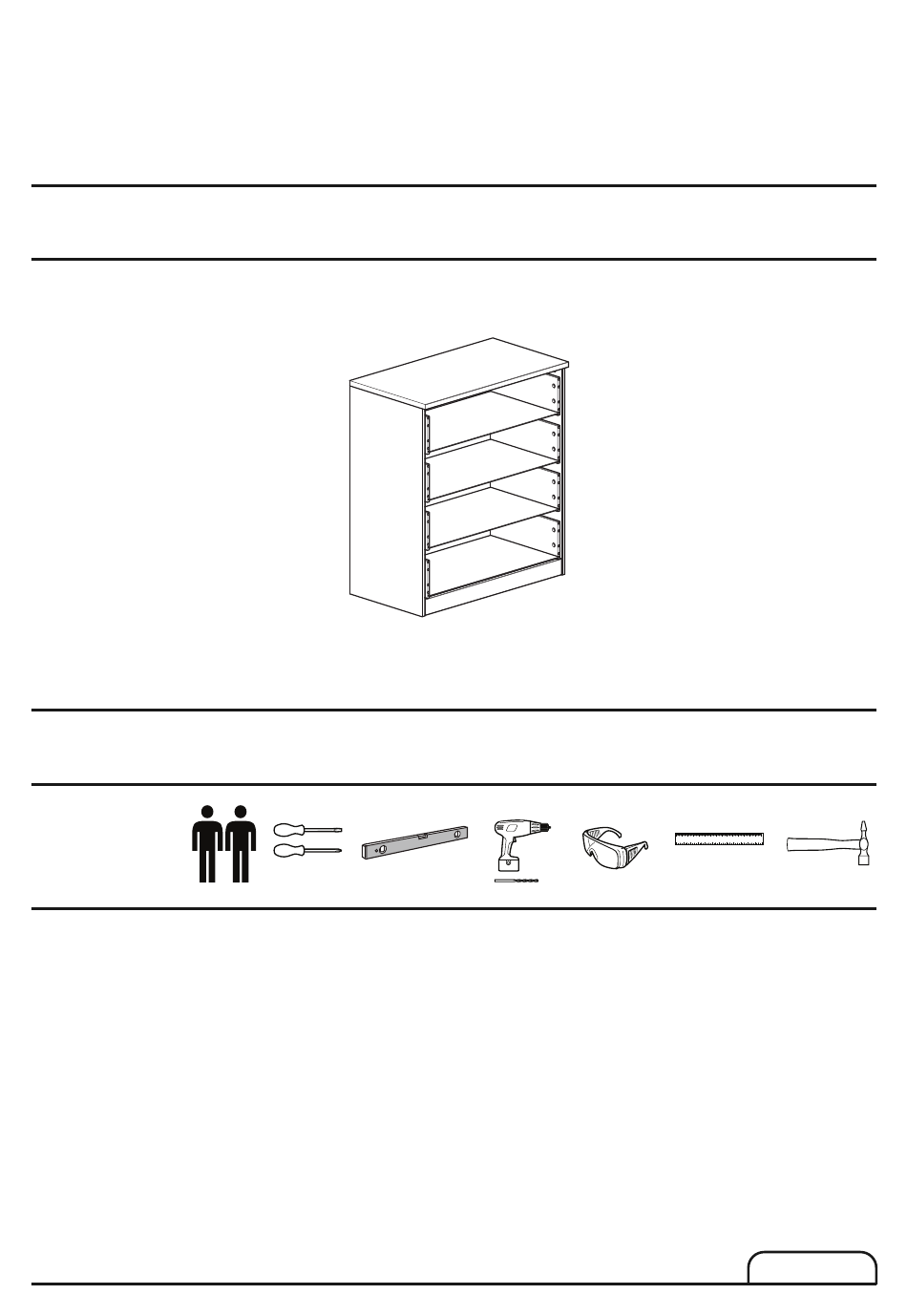

Thank you for purchasing this Mixit chest 4 drawers. Please read the instructions carefully before use to
ensure safe and satisfactory operation of this product.
PRE-ASSEMBLY PREPARATION
Please ensure instructions are read in full before attempting to assemble this product.
Necessary Tools
Please check the pack contents before attempting to assemble this product.A full checklist of compo-
nents is given in this leaflet. If any components are missing, please contact your the John Lewis Helpline.
This product is HEAVY, it should be assembled as near as possible to the point of use. TAKE CARE
WHEN LIFTING to avoid personal injury and (or) damage to the product.
This product takes approximately 70 MINUTES to assemble with 2 PEOPLE.
The fittings pack contains SMALL ITEMS which should be KEPT AWAY FROM YOUNG CHILDREN.
Read this leaflet in full before commencing assembly.
If you are missing some fittings please contact our spare parts helpline on 0330 005 9435.
Opening hours are 9am - 5pm Monday to Friday.
Mixit chest 4 drawers
Stock Code: 80319002 - 80319102 - 80319202
Spirit level
Screwdriver
0
0
20
30
40
0
Ruler/tape
Drill
Eye protection
measure
50
60
70
80
90
00
0
20
30
40
50
2
3
4
5
6
Small hammer
Page 1
MXT 04/13
Advertisement
Related Manuals for John Lewis Mixit
Summary of Contents for John Lewis Mixit
- Page 1 John Lewis Mixit chest 4 drawers Stock Code: 80319002 - 80319102 - 80319202 Thank you for purchasing this Mixit chest 4 drawers. Please read the instructions carefully before use to ensure safe and satisfactory operation of this product. PRE-ASSEMBLY PREPARATION Please ensure instructions are read in full before attempting to assemble this product.
- Page 2 Fittings checklist 30mm Metal dowel x 24 Long cam lock x 8 Wooden dowel x 24 Short cam lock x 16 30mm Screw x 16 Support foot x 4 Strap x 1 11mm Euroscrew x 16 15mm Screw x 25 25mm Nail x 30 Bumper x 8 Levelling Wedge x 2...
-
Page 3: Parts Checklist
Parts checklist Page 3 MXT 04/13... - Page 4 Step by step assembly instructions Step One ttach 4x metal dowels ( ) into the pre-drilled holes on top panel (1) as shown. Use a screwdriver to turn fitting ( ) clockwise to fix. Step Two ttach 4x wooden dowels (C) into the pre-drilled holes on rails (5) (6) as shown. Place the cam lock (B) into the holes on rails (5) (6) as shown, arrow pointing towards the bolt.
- Page 5 Step by step assembly instructions Step Three ttach 4x metal dowels ( ) into the pre-drilled holes on side panels (2) (3) as shown. Use a screwdriver to turn fitting ( ) clockwise to fix. ttach 4x support foot (F) into pre-drilled holes on side panels (2) (3) as shown. Fix 8x runner parts (Z1) to the side panels (2) (3) through holes shown in the detail view using 16x euroscrews (H) and 8x screws (I).
- Page 6 Step by step assembly instructions Step Four ttach side panels (2) (3) to rails (5) (6) as shown. Ensure metal dowels ( ) and wooden dowels (C) are aligned correctly with the holes of matching parts before attaching. Secure side panels (2) (3) to rails (5) (6) using a screwdriver to turn fitting (B) clockwise to fix. Step Five ttach top panel (1) onto sides (2) (3) as shown.
- Page 7 Step by step assembly instructions Step Six Position back panel (4) as shown. Step Seven ttach back panel (4) onto back side of the unit using 30x nails (L), with the help of nail guide (P1). Important: The cabinet MUST be ‘square’...
- Page 8 Step by step assembly instructions Step Eight With help of an assistance, carefully stand up the unit upright. Step Nine Use 2x levelling wedge (N) to level the unit. Page 8 MXT 04/13...
- Page 9 Step by step assembly instructions Step Ten Fittings have been supplied in order to join units together. Place units together in their final positon. Decide position where to drill through using a Ø5 mm bit. Push the Connector (O) into the hole and then screw Bolt (P) in from the other side, tighten with a screwdriver.
- Page 10 Step by step assembly instructions Step Eleven To prevent possible overbalancing we recommend that this unit is secured to a suitable wall by use of wall strap (G) fitted to the Top of the unit. Secure one end of the wall strap (G) to the wall. Thread the other end of the wall strap (G) through the gap between the top (1) of the chest and the back panel (4).
- Page 11 Step by step assembly instructions Step Twelve ttach 4x wooden dowels (C) into the pre-drilled holes on drawer sides (9) (10) as shown, repeat for all drawers. Place the cam lock (D) into the holes on drawer sides (9) (10) as shown, arrow pointing towards the bolt, repeat for all drawers.
- Page 12 Step by step assembly instructions Step Fourteen Slide drawer bottom panel (8) into the drawer box grooves. Position drawer front (7) onto drawer box, turn locking nuts (D) clockwise to lock. repeat for all drawers Step Fifteen Fix runner part (Z2) onto the drawer using 4x screws (I) repeat for all drawers.
- Page 13 Step by step assembly instructions Step Sixteen Tilt the drawer as shown. Slide the drawer box along the runner parts until the stop. Wheels and runner parts have to be correctly matched as shown. Page 13 MXT 04/13...
-
Page 14: Care And Maintenance
Wall fixing - if in doubt seek professional advice Wood Brick or Masonry Cavity wall If xing to wood Use an appropriate Special toggle make su re that it wall plug provided you wall plugs are isn't chipboard as are sure your wall is needed. -
Page 15: Safety Instructions
It must under no circumstances be used free-standing.No liability will be accepted for damage or injury caused by inadequate fixing or use without fixing. PLEASE KEEPTHESE INSTRUCTIONS FOR FUTURE REFERENCE John Lewis Partnership 171Victoria Street London SWIE 5NN www.johnlewis.com Page 15...
