Summary of Contents for Alphacool Eisblock XPX

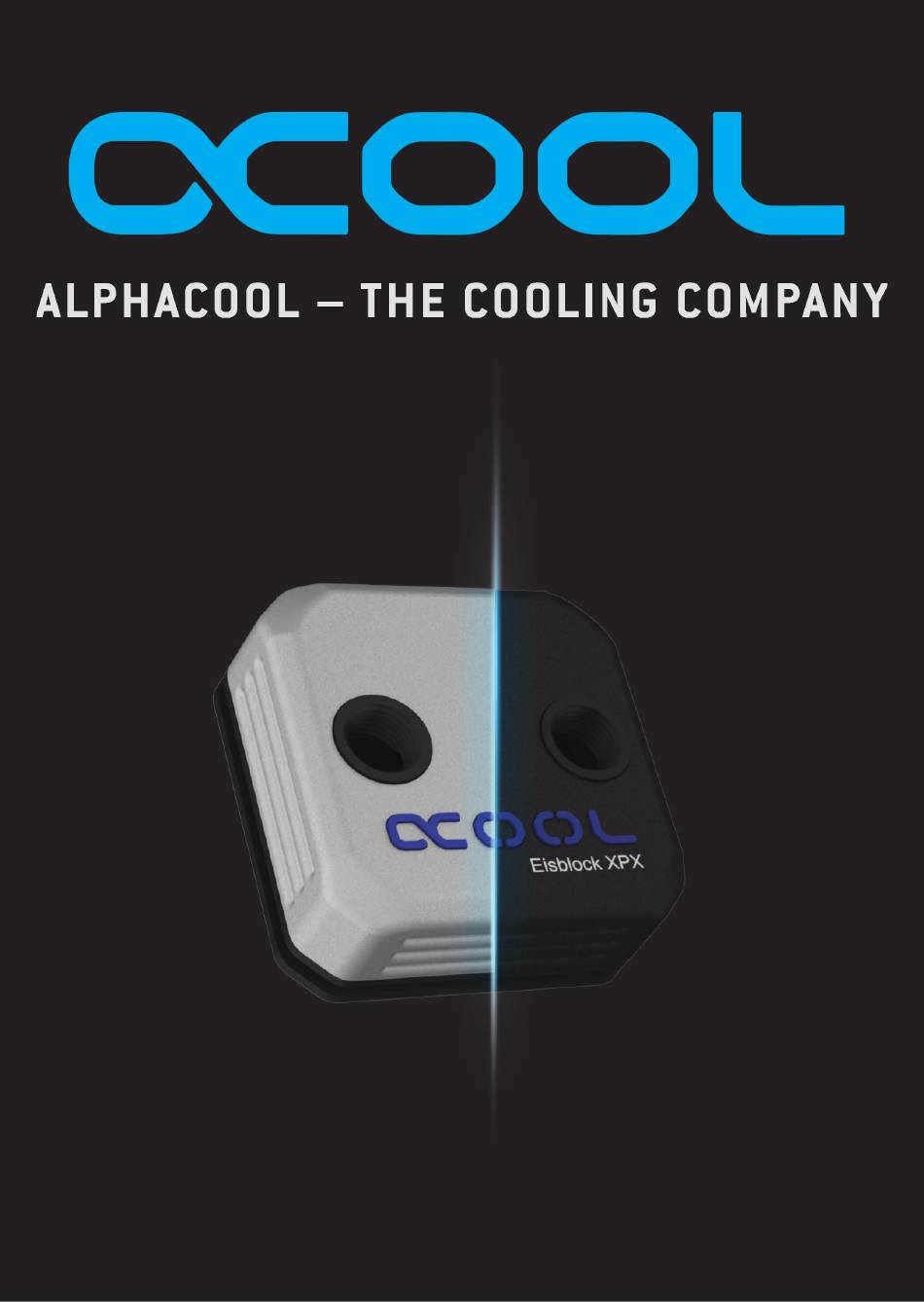

  • Page 1 Eisblock XPX...

  • Page 3: Table Of Contents

    Contents - Inhaltsverzeichnis - Sommaire Scope of delivery Lieferumfang Contenu de la livraison Functionality / Technology Funktionsweise/ Technologie Fonctionnalité / Technologie Preparing the hardware Vorbereitung der Hardware Préparation des composants Intel mounting Montage Intel Installation Intel 8-11 AMD mounting Montage AMD Installation AMD 12-17 Putting on screw caps...

  • Page 4: Scope Of Delivery

    Scope of delivery - Lieferumfang - Contenu de la livraison CPU cooler CPU Kühler refroidisseur CPU Intel + AMD bracket Intel + AMD Halterung crochet de Intel + AMD Intel backplate Intel Rückplatte contreplaque Intel thermal grease Wärmeleitpaste pâte thermique screw caps Schraubenkappen protège-vis...
  • Page 5 Scope of delivery - Lieferumfang - Contenu de la livraison AM4 washers AM4 Unterlegscheiben AM4 rondelles AMD screws AMD Schrauben vis AMD washers Unterlegscheiben UNC 6-32 rondelles Intel 115x screws springs Intel 115x Schrauben Federn vis Intel 115x ressorts nuts Muttern écrous Intel 2011(-V3) screws...

  • Page 6: Functionality / Technology

    Functionality / Technology - Funktionsweise/ Technologie - Fonctionnalité / Technologie cover logo inlay topplate with ports M4 thread inserts gaskets middleplate fl ow distributor gaskets jetplate copperplate M4 screws...

  • Page 7: Preparing The Hardware

    Preparing the hardware - Vorbereitung der Hardware - Préparation des composants • Clean the CPU Use a cloth or cotton swab and ethyl alcohol for dried thermal paste • Apply pea-sized drop of thermal grease to the CPU • Using a plastic strip or similar, spread a thin, even layer (<0.5mm thickness) •...

  • Page 8: Intel Mounting Montage Intel Installation Intel

    Intel mounting - Montage Intel - Installation Intel Intel 2011 2011-3 1. Mount the bracket as shown 2. Slip springs and washers onto screws 3. Set cooler onto CPU and fasten screws crosswise • Do not tighten screws too much, in order to avoid damage to your mainboard 1.
  • Page 9 Intel mounting - Montage Intel - Installation Intel Intel 2011 2011-3...
  • Page 10 Intel mounting - Montage Intel - Installation Intel Intel 1150/51 1155/56 1366 775, 771 1. Mount the bracket as shown 2. Slip springs and washers onto screws and attach from underneath with nuts 3. Set mainboard onto backplate, set cooler onto CPU and fasten screws crosswise •...
  • Page 11 Intel mounting - Montage Intel - Installation Intel Intel 1150/51 1155/56 1366 775, 771...

  • Page 12: Amd Mounting Montage Amd Installation Amd

    AMD mounting - Montage AMD - Installation AMD 1. Mount the bracket as shown 2. Slip springs and two types of washers onto 2. Slip springs and two types of washers onto screws and attach from underneath with nuts 3. Set mainboard onto backplate, set cooler onto CPU and fasten screws crosswise •...
  • Page 13 AMD mounting - Montage AMD - Installation AMD...
  • Page 14 AMD mounting - Montage AMD - Installation AMD AM3+ AM2+ 1. Mount the bracket as shown FM2+ 2. Slip springs and washers onto screws and attach from underneath with nuts 3. Set mainboard onto backplate, set cooler onto CPU and fasten screws crosswise •...
  • Page 15 AMD mounting - Montage AMD - Installation AMD AM3+ AM2+ FM2+...
  • Page 16 AMD mounting - Montage AMD - Installation AMD Mainboard mounting without backplate 3. Remove retention module 4. Reattach clips as screw threads • Set cooler onto CPU and fasten screws crosswise • Do not tighten screws too much, in order to avoid damage to your mainboard Mainboardmontage ohne Backplate 3.
  • Page 17 AMD mounting - Montage AMD - Installation AMD AM3+ AM2+ FM2+...

  • Page 18: Putting On Screw Caps Schraubenkappen Aufsetzen Mettre Protège-Vis

    Putting on screw caps - Schraubenkappen aufsetzen - Mettre protège-vis • Put rubber cover over screw head • Place cap • Gummiüberzug auf Schraubenkopf stülpen • Kappe aufsetzen • Installer protection élastique sur tête de vis • Poser protège-vis...

  • Page 19: Attaching Electronics Elekronik Anschließen Connexion Électrique

    Attaching electronics - Elekronik anschließen - Connexion électrique • Connect 3-Pin connector to mainboard Note: the connection is needed for the illuminated logo only • 3-Pin Stecker mit Ihrem Mainboard verbinden Beachten Sie: der Anschluss wird ausschließlich für das beleuchtete Logo gebraucht •...

  • Page 20: Attaching Hoses Verschlauchen Installation Tuyaux

    Attaching hoses - Verschlauchen - Installation tuyaux Note: IN and OUT are specifi ed on the socket base Do not fasten the hose connections too tightly, as o-rings could easily become damaged, causing leaks in the loop. Beachte: IN und OUT sind im Gewindeboden beschrieben Drehen Sie die Schlauchanschlüsse nicht zu fest an, es können leicht O-Ringe beschädigt werden und Ihr...
  • Page 21 Attaching hoses - Verschlauchen - Installation tuyaux When attaching hoses, it is helpful to follow this order: • Screw hose connectors into the components • Screw hose connectors into the components • Unscrew coupling nut • Attach hose • Seal with coupling nut •...
  • Page 22 Individualization - Individualisierung - Individualisation...
  • Page 23 Individualization - Individualisierung - Individualisation Individualize your cooler with our separately available Moddings Kits. These include color matching caps, brackets Moddings Kits. These include color matching caps, brackets and screw caps. Logo inlays will be obtainable in different colors as well. So you can design yourself an unique model. Individualisieren Sie Ihren Kühler mit den separat erhältlichen Moddings Kits.

  • Page 24: Instructions For Modding Kits

    Instructions for modding kits - Anleitung für Modding kits - Instructions des kits de modding cooler Cover Kühler Deckel bouchon de refroidisseur color matched Intel + AMD brackets farblich passende Intel + AMD Halterungen crochets de Intel + AMD des couleurs adaptées color matched screw caps farblich passende Schraubenkappen protège-vis des couleurs adaptées...
  • Page 25 Cap removing - Kappe abnehmen - Enlever le capuchon 1. Detach the CPU cooler from your mainboard 2. Carefully remove the original cap with the included tool Place the tool on one side, push the cap up, repeating on the other side, if necessary 1.
  • Page 26 Change logo - Logo wechseln - Changer logo 1. Carefully push the LED out of the logo fi tting 2. Place the lighting plate into the new logo 2. Place the lighting plate into the new logo 3. Put the logo back in correctly and arrange the cables outwards through the channel 1.
  • Page 27 Attaching cap - Kappe aufsetzen - Poser le capuchon Make sure that the logo and LED are set correctly and press the cover onto the cooling block. You will hear a distinct click when the cap is securely in place. Achten Sie darauf, dass der Logoeinsatz und die LED richtig sitzen und drücken Sie das Cover auf den Kühlblock.
  • Page 28 Imprint: Alphacool International GmbH Marienberger Str. 1 38122 Braunschweig Head Office: +49 (0) 531 28874 - 0 Fax: +49 (0) 531 28874 - 22 E-Mail: info@alphacool.com General Manager: Fabian Noelte WEEE-Reg.-Nr.: DE 54464644 Trade Register: Amtsgericht Braunschweig HRB 202390 VAT.ID.Nr.:...
