Page 1: Elektrische Installatie

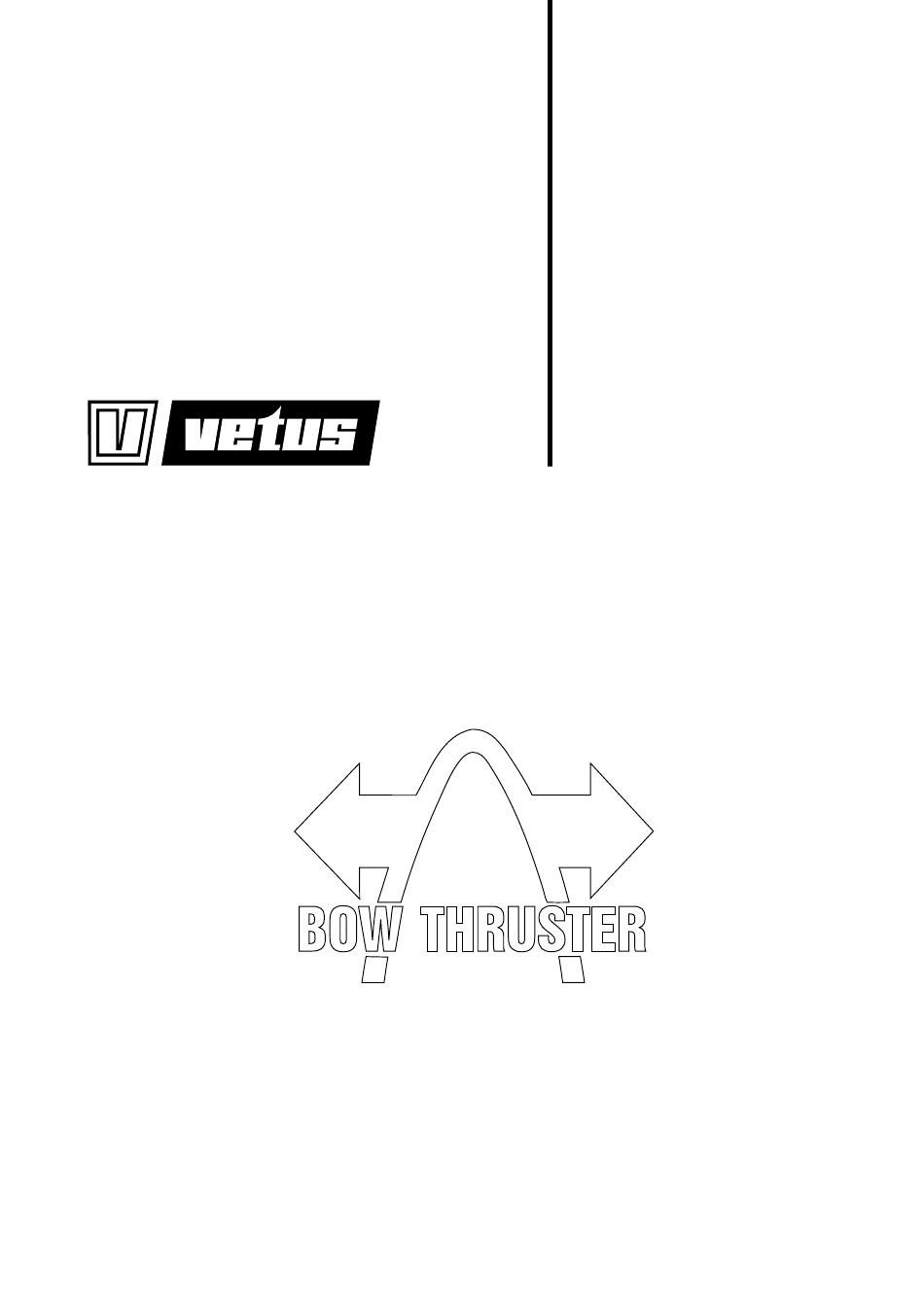

Manual de manejo y instrucciones de instalación Käyttö- ja asennusohje Manuale per l’uso e istruzioni per l’installazione Instrukcja obsługi oraz instalacji Operation manual and installation instructions BOW22024D 220 kgf - ø 300 mm Copyright © 2019 Vetus b.v. Schiedam Holland 020529.06... -
Page 2: Hoofdstroomkabels (Accukabels) 13 6.4 Aansluiten Hoofdstroomkabels . 13 6.5 Zekeringen
................... . BOW22024D - 220 kgf - ø 300 mm - 24 Volt vetus®... -
Page 3: Table Of Contents
11.2 Serien-/Parallelschalter ..Raadpleeg het 'Onderhouds- en garantie- Consult the ‘Maintenance and Warranty Zur Wartung vgl. das „Wartungs- und Ga- boek' voor Onderhoud. Book’ for Maintenance. rantiebuch“. vetus® Operation manual and installation instructions bow thruster BOW22024D 020529.06... -
Page 4: Introduction
Make sure that the user of the vessel is supplied with the owner’s manual. vetus® Operation manual and installation instructions bow thruster BOW22024D 020529.06... -
Page 5: Installation Recommendations
- The electric motor must be positioned in such a way that it is al- We do not advise fitting 2 bow thrusters into one tunnel; this does ways well clear from the maximum bilge water level. not result in doubling the thrust! vetus® Operation manual and installation instructions bow thruster BOW22024D 020529.06... -
Page 6: Connection Of Thrust Tunnel To Ship's Hull
- The bars must be installed so they are perpendicular to the ex- pected waveform. vetus® Operation manual and installation instructions bow thruster BOW22024D 020529.06... -
Page 7: Installation Of The Thrust Tunnel
• Then apply anti-fouling treatment if NOTE: The gaskets supplied are al- required. ready electrically insulated. However the bolts and the shaft need to be fit- ted with insulation material, for exam- ple nylon bushes. vetus® Operation manual and installation instructions bow thruster BOW22024D 020529.06... -
Page 8: Installation
30 - 35 Nm Grease (22 - 26 ft.lbf ) Check for possible leaks immediately the ship returns to wa- ter. *) A suitable grease is VETUS ‘Shipping Grease’ , Art. code: VSG. vetus® Operation manual and installation instructions bow thruster BOW22024D 020529.06... -
Page 9: Final Assembly
• For a first check, turn the propeller by hand, it should turn easily, whilst being connected to the output spindle of the electric mo- tor. Molykote® G-n plus *) A suitable grease is VETUS ‘Shipping Grease’ , Art. code: VSG. vetus® Operation manual and installation instructions bow thruster BOW22024D 020529.06... -
Page 10: Electrical Installation
This remotely controlled main switch is available for 12 or 24 Volt DC. this spanner. Vetus art. code: BPMAIN12 respectively BPMAIN24. The torque for nut 2 is 9 - 11 9 - 11 Nm Nm (6.5 - 8 ft.lbf ). vetus® Operation manual and installation instructions bow thruster BOW22024D 020529.06... -
Page 11: Fuses
This fuse protects the on-board power cabling from short circuits. For all fuses we can suppy a fuse holder, Vetus part no.: ZEHC100. See page for the size of the fuse to be used. -
Page 12: Trouble Shooting
114. Length of usage: See table on page 2.5 min. continuously or max. 2.5 min. per hour at 760 A (24 Volt). vetus® Operation manual and installation instructions bow thruster BOW22024D 020529.06... -
Page 13: Principle Dimensions
Hauptabmessungen Viktigste mål Päämitat Dimensions principales Dimensiones principales Główne wymiary Dimensioni principali 258 (10 “) ø 212 241 (9 “) “ DIA.) ø 300 “ DIA.) “) 1 : 10 vetus® Operation manual and installation instructions bow thruster BOW22024D 020529.06... -
Page 14: Battery Capacity, Battery Cables
2 x 220 Ah - 12 V 0 - 63 ft AWG 0000 4 x 220 Ah - 12 V 2 x BCI 8D - 1300 4 x BCI 8D - 1300 vetus® Operation manual and installation instructions bow thruster BOW22024D 020529.06... -
Page 15: Übergang Vom Tunnelrohr Zum Schiffsrumpf
Bleu Azul 2 Rood (+) Red (+) Rot (+) Rouge (+) Rojo (+) 3 Zwart (-) Black (-) Schwarz (-) Noir (-) Negro (-) 4 Wit White Weiß Blanc Blanco vetus® Operation manual and installation instructions bow thruster BOW22024D 020529.06... -
Page 16: Anbringen Vom Tunnelrohr
2 Rosso (+) Rød (+) Röd (+) Rød (+) Punainen (+) Czerwony (+) 3 Nero (-) Sort (-) Svart (-) Svart (-) Musta (-) Czarny (-) 4 Bianco Hvid Hvit Valkoinen Biały vetus® Operation manual and installation instructions bow thruster BOW22024D 020529.06... -
Page 17: Einbau
Manejo simultáneo de 2 tornillos de retención con 1 panel Jednoczesna obsługa dwóch pędników dziobowych przy użyciu jednego panelu Comando contemporaneo di 2 eliche di prua mediante 1 solo pannello (24 V) (24 V) vetus® Operation manual and installation instructions bow thruster BOW22024D 020529.06... -
Page 18: Endmontage
12 Volt-Abnehmer über die Lade- les fils de courant de charge et les parallèle ! stromkabel und die Ladestromkon- contacts de courant de charge du takte des Serien-/Parallelschalters. coupleur série-parallèle. vetus® Operation manual and installation instructions bow thruster BOW22024D 020529.06... -
Page 19: Elektrische Installation
Pakking 2 mm Gasket 2 mm BP1070 Pakking 1 mm Gasket 1 mm BP1055 V-ring V-ring TS110 Thermische beveiliging Thermal Protection BP256 Reserve zekering 5 A Spare fuse 5 A vetus® Operation manual and installation instructions bow thruster BOW22024D 020529.06... -
Page 20: Sicherungen
Operation manual and installation instructions bow thruster BOW22024D 020529.06... -
Page 21: Störungen
FOKKERSTRAAT 571 - 3125 BD SCHIEDAM - HOLLAND b.v. TEL.: +31 0(0)88 4884700 - sales@vetus.nl - www.vetus.com Printed in the Netherlands 020529.06 2019-08...
