Swissvoice D38 Quick User Manual

D38
Quick user guide
INTRODUCTION

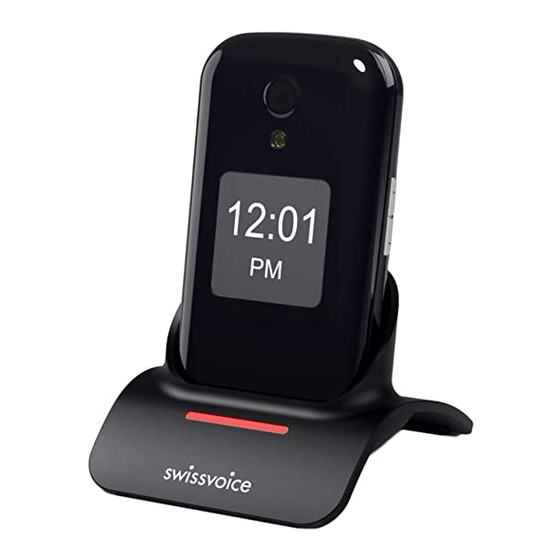

D38 is a 3G clamshell phone with dual display
(Thanks to the E-paper Always-On external display, the user will no
longer miss key information)
D38 is a CARE PHONE with dedicated features
• Amplified Sound and Ringer
• Easy charging base
• Loud speaker
• Talking caller ID name
• 2M pixel camera
• 20 Photo speed dial
• Built-in large memory
• SOS button (5 number list)
• Talking dialing digits
• SwissVoice Care features
• Auto-answer
• Compatible with Swissvoice Alarm Bracelet
KEYS DESCRIPTION
1
2
3
4
5
6
7
8
9
1 - Earpiece 7 - Camera Key
2 - Main display 8 - Dialing keypad
3 - Left selection key 9 - Microphone
4 - Navigation keys 10 - Right selection key
- Q-Menu (Quick menu) 11 - End / Power key + turn off FM radio
5 - Answer/Call key 12 - Torch key
6 - Photo Phonebook key ( Long press (3s) to
activate/desactivate )
** is the hot key for switching the keypad input between ABC,
Abc, abc & 123.
Long Press on # will activate / deactivate the Silent mode
** is the hot key for entering special symbols.
13
14
15
16
17
21
18
13 - Camera lens 18 - Charging contacts
14 - Torch LED Flashlight 19 - Headset jack
15 - Front display 20 - Micro-USB socket
16 - Loudspeaker 21 - Volume control
17 - SOS key (Hearing, Ringer and Audio Boost )
DISPLAY ICONS
External E-paper Display
Battery LOW
Charging
Alarm ON
Color Display
Earpiece amplification
ON
Vibrate then Ring
Vibrate only
Silence
Red – Ring; Green –
Ring & Vibrate
Note! All the diagrams are for illustrative
slightly different from the actual unit.
In keeping with our environmental preservation and compliance
commitment, we include Quick user guide in our packaging. For
digital copy of user manual and useful information, please visit our
website or contact our Helpline.
www.swissvoice.net
GET STARTED
Installing the SIM card, memory card and
battery
1
ATTENTION :
• Risk of swallowing small objects! The SIM card & memory card can
be removed. Small children can swallow them.
• Do not bend or scratch the SIM card. Prevent any contact with
water, dirt or electrical charges.
• Turn off the phone and disconnect the charger before removing
:
the battery cover.
-
Remove the battery cover:
Remove it with the help of your nail or a small flat tool, following the
drawing
- Insert the Nano SIM card (mandatory) and the
microSD memory card (optional, not supplied):
1) Slide the small metal part to the right side to unlock it.
10
2) With the finger nail, lift it up to the right side.
3) Place the SIM card in the SIM card holder with the golden contacts
11
facing down and the cut corner at the lower left (drawing A).
4) Close the SIM card metal part and lock it by sliding to the left
12
(drawing B).
*To expand the internal storage memory, you can insert a microSD
memory card (maximum capacity of 32 GB / not included).
- Insert the battery:
19
20
- Insert the battery into battery compartment with golden contacts
of the battery facing downwards to the right of the phone. Press
lightly on the top end of the battery until it snaps into place.
- Replace and secure the battery cover until it clicks into place.

Charge the phone

A
Battery FULL
Missed call
New message
- Connect the USB plug of the adaptor to the charging socket (A) or
place the device in the cradle (B)
with the provided power adaptor.
Battery power
ATTENTION:
• Only use battery, charger and accessories that have been approved
Bluetooth ON
for using with this particular model. Connecting other accessories may
be dangerous and may invalidate the warranty.
• When charging the battery for the first time, it should be charged
Roaming
for at least 4 hours.
Headset Plugged in
Signal strength
purposes and may be
OR B
and connect the latter to the mains

1st USE SETUP

- Long press to power up the phone
You may be requested to enter your Sim card PIN code (4 digits)
provided by your operator.
- to select the desired language > OK
- Input HH:MM > > DD/MM/YYYY >
( Press Menu > > Settings > Phone > .....
settings )

Make a Call

- Enter the number 0.....9 ( Press Clear to delete )
- Press to dial ( Press H-Free for Handsfree. Press H-Held for
Handset )
- Press to end the call
- To deactivate/activate the talking keypad: Menu / Settings / 1.
Profiles / General / 2. Customize / 7. Keypad
Phonebook
- D38 offers a PHOTO Phonebook for 20 VIP contacts, along with a
500 contacts regular phonebook.

Add photo phonebook contact

- Press > > Add.... ( Or, View > Edit..... for current
contacts )
1. Picture > > Save ( To take a new photo )
2. Contact > input the name and number> Save
3. Caller ringtone > Record > record the name/voice
message > Stop > Play ( to check )
- When one of these contacts calls in, the associated voice message
will be announced. If no voice message is recorded, the phone will
ring with normal ringtone.

Add Phonebook contact:

First contact:
Press Menu / / Phonebook / / 2. Normal / Options / Name, input
ABC.../ / Number, 012...... / / Caller ringtone, ... / Options / Save
Then for additional contacts:
Press Menu / / Phonebook / / 2. Normal /
/ Name, input ABC.../ / Number, 012... /
Options / Save

Call from phonebook

- Press > to select the 20 photo memories;
or
Press Names > to select the number
- Press to dial
- Press to end the call

Receive a Call

- Flip up the phone or press to answer
- Press to end the call
Settings ( Ring tone & Volume )
- Press Menu > > Settings >....
- Under the Settings menu, the following options can also be
accessed
1. Profiles : to set ringers, volume, keypad tone..(General/
Options/Customize...)
2. Phone : to set Time/Date, Language, Display (wall paper,
backlight)
3. Charger LED ( Activate / Deactivate )
4. Tone Control
5. Call settings
6. Security (password : 1122)
7. Restore (password : 1122)

Call Log

- Press Menu > > Call Log >.....
1. Missed
2. Dialled
3. Received
(Or press to get all calls list)
- Press to select the desired number
- Press to dial out

Write/Send Messages ( SMS/MMS )

- Press Menu > > Messages > Write >
or MMS (You can also press >Write >
- Input the text messages or attachment for MMS
** is the hot key for switching the keypad input between ABC,
Abc, abc & 123.
** is the hot key for entering special symbols.
- Press Options > Send to > > Enter number or Add from
phonebook > enter the recipient phone number > OK > Options >
Send
- Under the Messages menu, the following options can also be
accessed
1. Write
2. Inbox
3. Drafts
4. Outbox
5. Sent
6. Setting

Read new messages

- Press View > to select message
- Press View to read
> 12Hr/24Hr > > Save
to modify the detailed
/ Add / Options
/ Caller ringtone, ... /
to select SMS
)
