Pewatron Mean Well RCP-1600 Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

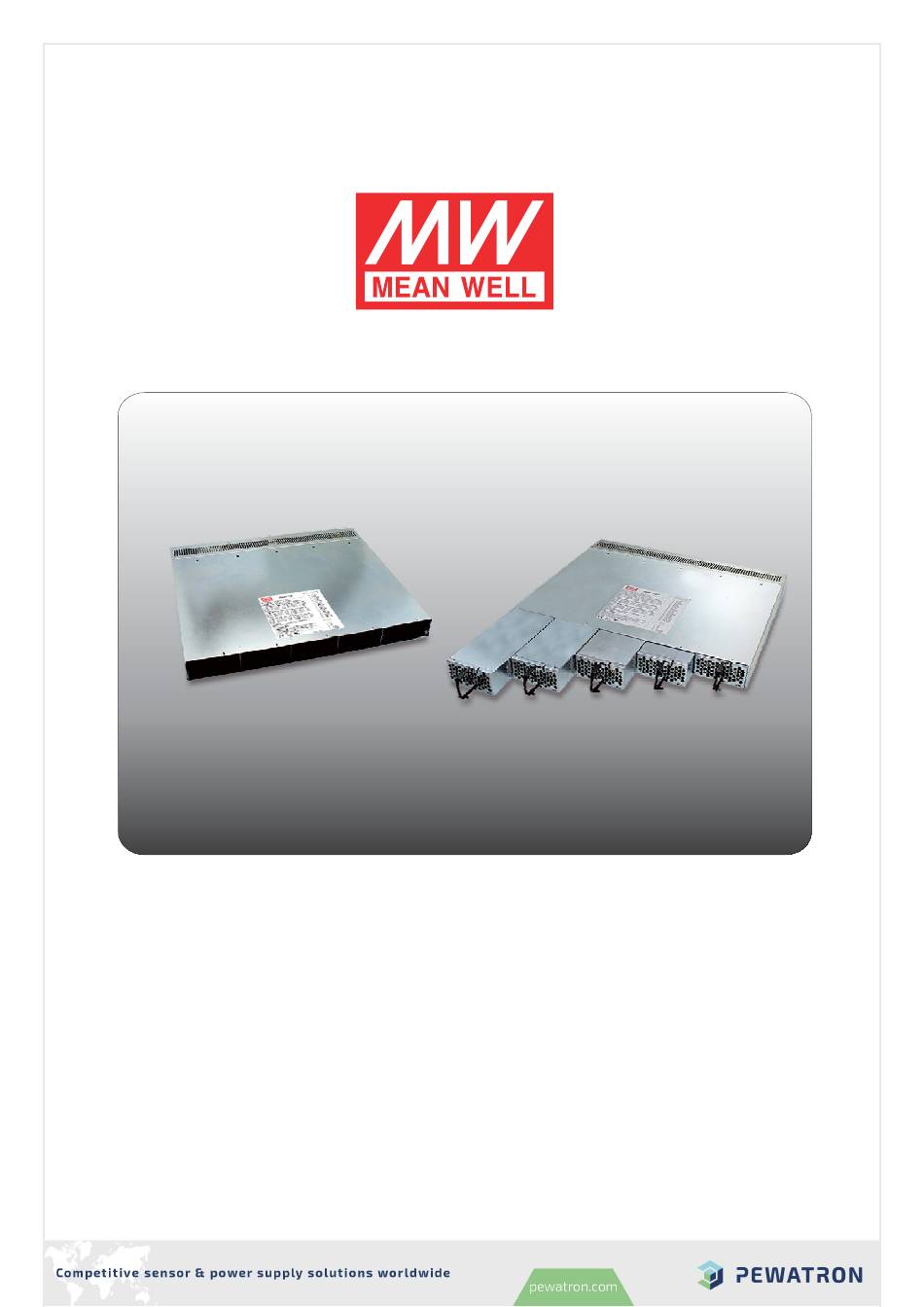

1
RCB-1600-RHP-1U_1610-21407-0001-E-0420
RCP-
16
00 /
RCB -1600 /
RHP-1U
U s e r ' s M a n u a l

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mean Well RCP-1600 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Pewatron Mean Well RCP-1600 Series

  • Page 1 RCB-1600-RHP-1U_1610-21407-0001-E-0420 RCP- 00 / RCB -1600 / RHP-1U U s e r ' s M a n u a l...

  • Page 2: Table Of Contents

    RCB-1600-RHP-1U_1610-21407-0001-E-0420 ......................Safety Guidelines ........................Introduction ......................Introduction ........................Features ......................Order Information ....................... Main Specification .............. Mechanical Specification and Inpit/Out Terminals ................Unit Mechanism of Su ly Charger ................Mechanism of Whole Rack System .......................... Functions ..................... Input Voltage Range ....................

  • Page 3: Safety Guidelines

    RCB-1600-RHP-1U_1610-21407-0001-E-0420 RCP-1600,RCB-1600,RHP-1U User's Manual Safety Guidelines ◎ Risk of electrical shock and energy hazard, all failure should be examined by a qualified technician. Please do not remove the case from the supply/charger or rack shelf unit by yourself. ◎ Please do not change any component on the unit or make any kind of modification on it. ◎...

  • Page 4: Main Specification

    RCB-1600-RHP-1U_1610-21407-0001-E-0420 ◎Rack Shelf : RHP-1UI-A RHP-1UT-A Use only RCP-1600 or RCB-1600 series of identical model. Use only RCP-1600 or RCB-1600 series of identical model. RCP-1600 series RCB-1600 series RCP-1600 series RCB-1600 series □ 48V MODEL, Max. 5 modules provide □ 48V MODEL, Max. 5 modules provide □...
  • Page 5 RCB-1600-RHP-1U_1610-21407-0001-E-0420 MODEL RCB-1600-12 RCB-1600-24 RCB-1600-48 BOOST CHARGE VOLTAGE(Vboost)(default) 14.4V 28.8V 57.6V FLOAT CHARGE VOLTAGE(Vfloat)(default) 13.8V 27.6V 55.2V CURRENT RANGE 0 ~ 100A 0 ~ 55A 0 ~ 27.5A CONSTANT CURRENT(CC)(default) 100A 27.5A RATED POWER 1440W 1584W 1584W By built-in potentiometer, SVR OUTPUT VOLTAGE ADJ.

  • Page 6: Mechanical Specification And Inpit/Out Terminals

    RCB-1600-RHP-1U_1610-21407-0001-E-0420 MODEL RHP-8K1U RHP-8K1U RHP-8K1U DIMENSION Rack 365*482.6*44(L*W*H, with mounting bracket) ; 365*440*44(L*W*H, without mounting bracket) OTHERS 5.5Kg ; 3pcs/17.5Kg/2.11CUFT PACKING 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 ℃ of ambient temperature. NOTE 2.

  • Page 7: Mechanism Of Whole Rack System

    RCB-1600-RHP-1U_1610-21407-0001-E-0420 2.2 Mechanism of whole Rack system ADDRESS ADDRESS ADDRESS ADDRESS ADDRESS SWITCH SWITCH SWITCH SWITCH SWITCH RHP-1UT 4-M8 L=16 ADDRESS ADDRESS ADDRESS ADDRESS ADDRESS SWITCH SWITCH SWITCH SWITCH SWITCH RHP-1UI IEC320-C14 4-M8 L=16 IEC320-C14 IEC320-C14 IEC320-C14 IEC320-C14 5-M4 L=4 5-M4 L=4 20.7 20.7...
  • Page 8 RCB-1600-RHP-1U_1610-21407-0001-E-0420 ※ LED Status Indicators & Corresponding Signal at Function Pins For power supply system Description Green The power supply functions normally The LED will present a constant red light when the abnormal status (OTP, OLP, fan fail and charging timeout) arises. The LED will flash with the red light when the internal temperature reaches ℃...

  • Page 9: Functions

    RCB-1600-RHP-1U_1610-21407-0001-E-0420 ◎ For charger system RTH+ Temperature sense associated with the temperature compensation funcion. RTH- Not use. ◎ The Black wiring cable goes with the RCB-1600, used for battery temperature compensation. ※ Connector Pin No. Assignment( ) : RJ45 8 positions Pin No.
  • Page 10 RCB-1600-RHP-1U_1610-21407-0001-E-0420 3.5.2 Voltage adjustment of whole rack system by an external 0 -5 Vdc source (output voltage trimming function) (1) Connect output of the external DC source to PV(PIN 26) and –V(PIN 24) on CN1, as shown in Figure3-1. (2) Relationship between the output voltage and the external DC source is shown in Figure3-2.

  • Page 11: Fan Speed Control

    RCB-1600-RHP-1U_1610-21407-0001-E-0420 Fan Speed Control ◎ Built-in fan speed control circuit, the fan speed changes automatically d epending on the internal temperature. Short Circuit Protection & Over Current Protection (only for RCP-1600) ◎ The protection activates when the output is short-circuited or the output current exceeds 110%±5% of the rated output current. Re-power on to recover when the short-circuit/overload condition is removed.

  • Page 12: Hot-Swap Operation

    RCB-1600-RHP-1U_1610-21407-0001-E-0420 RHP-1U LOAD Twisted wires Figure Connection of Remote Sense RHP-1U Figure Connection of Local Sense 3.15 Hot Swap Operation ◎ Built-in "Oring MOSFET", the units can be installed/removed without tuning power off. ◎ Insert units: Grasp the handle and push into the rack shelf through the rail. "Click"...

  • Page 13: Series Operation

    RCB-1600-RHP-1U_1610-21407-0001-E-0420 3.16.2 Operation of three rack shelves in parallel (RCP-1600 system) ◎ Parallel operation is only suitable for the identical units (with the same model and the same output voltage/current). Up to 3 rack shelves and the maximum supply units that can be connected in parallel is 15. ◎...

  • Page 14: Auxiliary Power

    RCB-1600-RHP-1U_1610-21407-0001-E-0420 3.18 Auxiliary Output ◎ Built-in 5V/0.3A and 12V/0.8A auxiliary output. 3.19 RCP-1600 PMBus Communication Interface ◎ RCP-1600 is compliant with PMBus Rev.1.1, the maximum communication speed is 100KHz and it has the capability of identifying up to16 addressed units. ◎...
  • Page 15 RCB-1600-RHP-1U_1610-21407-0001-E-0420 3.19.2 PMBus Command List ◎ The command list of the RCP-1600 is shown in Table 3- . It is compliant with the standard protocol of PMBus Rev. 1.1. For more detailed information, please refer to PMBus official website http://pmbus.org/specs.html). Command Command Transaction...

  • Page 16: Rcb-1600 Pmbus Communication Interface

    RCB-1600-RHP-1U_1610-21407-0001-E-0420 3.19.3 PMBusData Range and Tolerance ◎ Display parameters PMBus command Model Range Tolerance ±10V READ_VIN 80 ~ 264V ±0.18V 0 ~ 15V ±0.36V READ_VOUT 0 ~ 30V ±0.48V 0 ~ 60V ±2.5A 0 ~ 150A READ_IOUT ±1.34A 0 ~ 80A (Note.
  • Page 17 RCB-1600-RHP-1U_1610-21407-0001-E-0420 3.20.1 PMBus Device Addresing and Charge Mode Selection Each RCB 1600 unit should have their unique and own device address to communicate over the PMbus 7 bit address setting pins are used to assign a device address for a RCB 1600 unit as shown in the below description A0-A2 allow users to designate the address for each RCB-1600 unit;...
  • Page 18 RCB-1600-RHP-1U_1610-21407-0001-E-0420 3.20.3 PMBUS, PV/PC or SVR Functions Users are able to fully control and design the entire charging behavior, without the charging curve, by one of the following means- PMBus command, PV/PC function or SVR adjustment, please refer to the previous chapter. The operating priority is, PMBus > PV/PC > SVR. NOTE: When operating in this mode, PMBus commands B0h/B1h…B8h can be set but there will be no response whereas other PMBus commands and functions work normally.
  • Page 19 RCB-1600-RHP-1U_1610-21407-0001-E-0420 Command Command Transaction # of data Description Code Name Type Bytes Constant current setting value of charging curve CURVE_ICHG R/W Word (format: Linear, N= -2) Constant voltage setting value of charging curve CURVE_VBST R/W Word (format: Linear, N= -9) Constant voltage setting value of charging curve CURVE_VFLOAT R/W Word...
  • Page 20 RCB-1600-RHP-1U_1610-21407-0001-E-0420 ◎ Definition of Command B8h CHG_STATUS： Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 High byte FVTOF CVTOF CCTOF BTNC NTCER EEPER Low byte FULLM Low byte Bit 0 FULLM：Fully Charged ode Status 0＝NOT fully charged 1＝fully charged Bit 1 CCM：Constant Current Mode Status 0＝the charger NOT in constant current mode 1＝the charger in constant current mode...
  • Page 21 RCB-1600-RHP-1U_1610-21407-0001-E-0420 3.20.5 PMBus Data Range and Tolerance ◎ Display parameters PMBus command Mode Range Tolerance ±10V READ_VIN 80 ~ 264V ±0.18V 0 ~ 15V ±0.36V READ_VOUT 0 ~ 30V ±0.48V 0 ~ 60V ±2.5A 0 ~ 150A READ_IOUT ±1.34A 0 ~ 80A (Note.1) ±0.67A 0 ~ 40A...

  • Page 22: Notes On Operation

    RCB-1600-RHP-1U_1610-21407-0001-E-0420 When using PMBus to adjust output voltage, VOUT_COMMAND only can be used to display the rated voltage of the unit and cannot be written. It is VOUT_TRIM that provide voltage trimming function. Taking RCB-1600-12 as an example, to get a 9V output, please value of VOUT_TRIM to -3V.

  • Page 23: Derating

    RCB-1600-RHP-1U_1610-21407-0001-E-0420 De-rating ◎ When RCP-1600/RCB-1600 units are operating at a lower AC input voltage, these units will de-rate their output current automatically to protect themselves, shown as Figure 4-2. 230VAC Input only (HORIZONTAL) ℃ AMBIENT TEMPERATURE ( ) INPUT VOLTAGE (VAC) 60Hz Figure 4-2 Output de-rating curves Warranty...
  • Page 24 Headquarter Switzerland: Offi ce Germany: Pewatron AG Pewatron Deutschland GmbH Thurgauerstrasse 66 Edisonstraße 16 CH-8050 Zurich D-85716 Unterschleißheim Phone +41 44 877 35 00 Phone +49 89 374 288 87 00 info@pewatron.com info.de@pewatron.com We are here for you. Addresses and Contacts.
