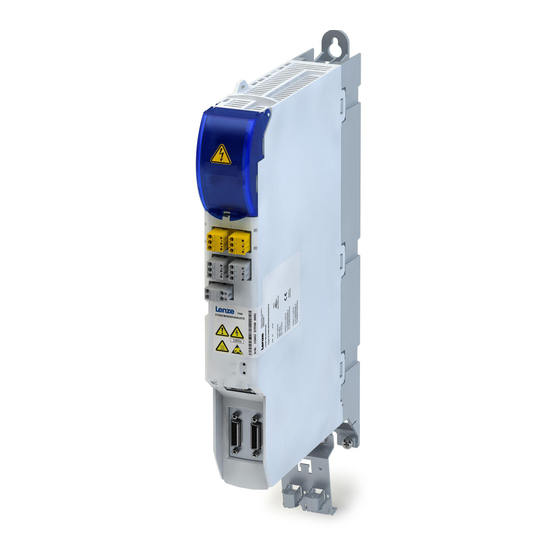

Lenze i700 Series Mounting Instructions
Hide thumbs
Also See for i700 Series:
- Reference manual (359 pages) ,
- Mounting instructions (20 pages) ,
- Hardware manual (162 pages)
Subscribe to Our Youtube Channel
Related Manuals for Lenze i700 Series
Summary of Contents for Lenze i700 Series

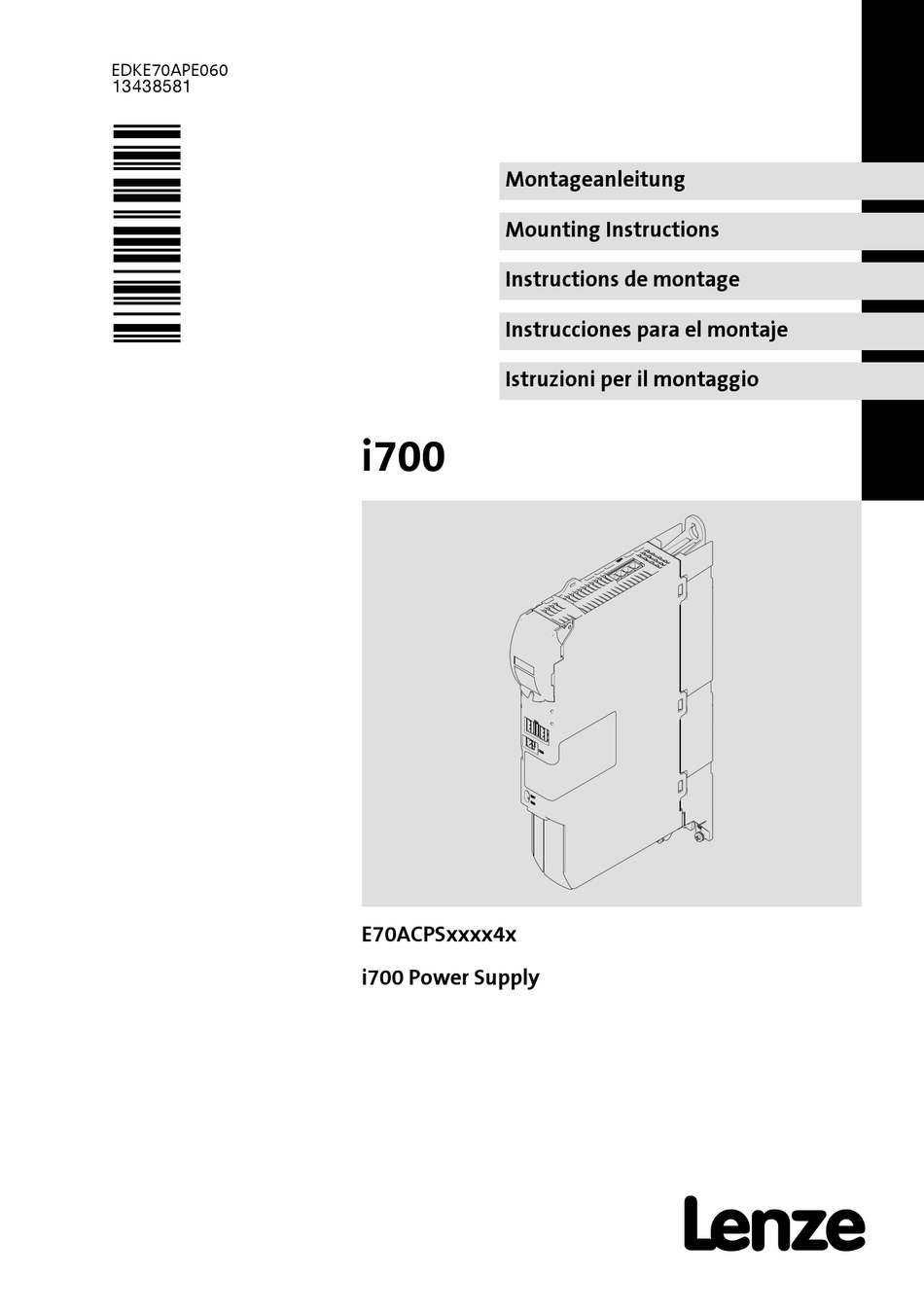

- Page 1 EDKE70APE060 .Lvr Montageanleitung Mounting Instructions Instructions de montage Instrucciones para el montaje Istruzioni per il montaggio i700 E70ACPSxxxx4x i700 Power Supply ...
- Page 2 Warnings! Operation of this equipment requires detailed installation and operation instructions provided in the Hardware manual intended for use with this product. This information is provided on the CD-ROM included in the container this device was packaged in. It should be retained with this device at all times.
- Page 3 Danger! Dangerous voltage The power terminals X100, X101, X102 and X103 carry dangerous voltages for the ƒ time given on the device after mains disconnection. Possible consequences: Death or severe injury if the power terminals are touched. ƒ...
- Page 4 ¡Peligro! Voltaje eléctrico peligroso Las conexiones de potencia X100, X101, X102 y X103 siguen vivas después de la ƒ desconexión de red durante el tiempo indicado en el equipo. Posibles consecuencias: Muerte o serias lesiones al tocar las conexiones de potencia. ƒ...
- Page 5 30 / 60 A 30 / 60 A E70ACPSE0304S E70ACPSE0604S [mm] X100 X101 X102 X20.1 X20.2 i700P001 i700P006 X103 EDKE70APE060 DE/EN/FR/ES/IT 2.1...
- Page 6 STANDARD [mm] [mm] STANDARD i700P011 a [mm] [kg] E70ACPSE0304x E70ACPSE0604x EDKE70APE060 DE/EN/FR/ES/IT 2.1...
- Page 7 STANDARD [mm] i700S00x [mm] E70ACPSE0304x E70ACPSE0604x EDKE70APE060 DE/EN/FR/ES/IT 2.1...
- Page 8 COLD PLATE [mm] COLD PLATE i700P011 b [mm] [kg] E70ACPSC0304x E70ACPSC0604x EDKE70APE060 DE/EN/FR/ES/IT 2.1...
- Page 9 COLD PLATE [mm] i700S00x [mm] E70ACPSC0304x E70ACPSC0604x EDKE70APE060 DE/EN/FR/ES/IT 2.1...
- Page 10 PUSH THROUGH [mm] PUSH THROUGH i700P011 c [mm] [kg] E70ACPSD0304x E70ACPSD0604x EDKE70APE060 DE/EN/FR/ES/IT 2.1...
- Page 11 PUSH THROUGH [mm] i700P011 d [mm] E70ACPSD0304x E70ACPSD0604x EDKE70APE060 DE/EN/FR/ES/IT 2.1...
- Page 12 X100 (400 V) X100 (400 V) X100 3 PE / AC X100 +UG -UG i700PX103 i700S010 7 [AWG] [Nm] [lb-in] E70ACPSx0304x 0.5 ... 16 22 ... 6 1.2 ... 1.5 10.6 ... 13.3 5.5 x 1 E70ACPSx0604x EDKE70APE060 DE/EN/FR/ES/IT 2.1...
- Page 13 X101, X102 X101, X102 i700A00x [Nm] [lb-in] 44.3 PH 3 EDKE70APE060 DE/EN/FR/ES/IT 2.1...
- Page 14 X20.1, X20.2 X20.1, X20.2 X20.1 X20.2 DC 24 V (+19.2...+28.8 V) i700PX020 i700S010 [mm] [AWG] 0.2 ... 2.5 24 ... 12 EDKE70APE060 DE/EN/FR/ES/IT 2.1...
- Page 15 GND-I GE 24E X21, X3 DC 24 V (+19.2...+28.8 V) i700PX021 i700M00x [mm] [AWG] 0.2 ... 2.5 24 ... 12 EDKE70APE060 DE/EN/FR/ES/IT 2.1...
- Page 16 X103 X103 X103 X103 " " i700PX103 i700S010 8 [AWG] [Nm] [lb-in] E70ACPSx0304x 4.5 x 0.8 0.5 ... 6 22 ... 10 0.5 ... 0.6 4.4 ... 5.3 E70ACPSx0604x EDKE70APE060 DE/EN/FR/ES/IT 2.1...
- Page 17 i700A00x [Nm] [lb-in] 22.1 PH 2 i700M00x EDKE70APE060 DE/EN/FR/ES/IT 2.1...
- Page 18 © 06/2014 Lenze Automation GmbH Service Lenze Service GmbH Postfach 10 13 52, D-31763 Hameln Breslauer Straße 3, D-32699 Extertal Hans-Lenze-Str. 1, D-31855 Aerzen Germany Germany +49 5154 82-0 008000 2446877 (24 h helpline) ...
