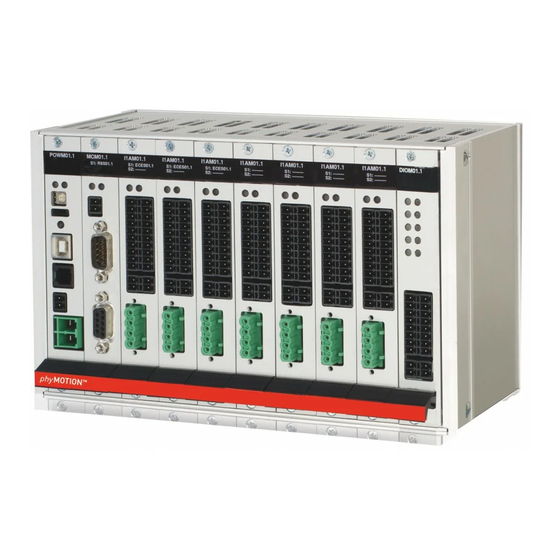

- Page 1 Power Supply Modules POWM01.2, POWM02.2, POWM03.1 and POWM04.1 TRANSLATION OF THE ORIGINAL GERMAN MANUAL 10/2015 Manual MA 1273-A007 EN...
- Page 2 We appreciate suggestions and criticisms for further improvement. Email address: doku@phytron.de Questions about the use of the product described in the manual that you cannot find answered here, please contact your representative of phytron (http://www.phytron.eu/) in your local agencies. MA 1273-A007 EN...
-
Page 3: Legal Instructions
1 Legal Instructions This manual: Read this manual very carefully before mounting, installing and operating the device and if necessary further manuals related to this manual. Please pay special attention to instructions that are marked as follows: DANGER –... - Page 4 Manual POWM01 / POWM02 / POWM03 / POWM04 Observe the following safety instructions! Qualified personnel WARNING – Serious injury possible! Serious personal injury or serious damage to the machine and drives could be caused by insufficiently trained personnel! Without proper training and qualifications damage to devices and injury might result! - Design, installation and operation of systems may only be performed by qualified and trained personnel.
- Page 5 Safety Instructions Further Manual This manual is an addition to the following main manual: “phyMOTION Modular Multi-axis Controller for Stepper Motors” - First, read the main manual and then continue with this manual. Intended use: The phyMOTION is designed for operating in a drive system.
-
Page 6: Table Of Contents
Manual POWM01 / POWM02 / POWM03 / POWM04 2 Contents 1 Legal Instructions ....................3 2 Contents ........................6 3 POWM – Power Supply of the phyMOTION ............7 4 Module Overview ...................... 8 4.1 Main supply POWM01 and POWM03 ..............8 4.2 Intermediate supply POWM02 and POWM04 ............ -
Page 7: Powm - Power Supply Of The Phymotion
3 POWM – Power Supply of the phyMOTION POWM stands for “Power Module“. POWM01 and POWM02 are used for the phyMOTION with external supply EXT, POWM03 and POWM04 for the phyMOTION with internal supply POWM01 and POWM02 include the external power supply for the power stages (24... -
Page 8: Module Overview
Manual POWM01 / POWM02 / POWM03 / POWM04 4 Module Overview 4.1 Main supply POWM01 and POWM03 Fig. 3: POWM01 POWM03 EXT: POWM01 Feed-in to the power supply: • 24 to 70 V supply voltage (for motors and generates internally the logic voltages) – 20 A max. - Page 9 Configuration: • USB interface for programming and diagnostics • Device address switch • Remote/Local switch • Reset button • Connection of an external phytron touch panel MA 1273-A007 EN...
-
Page 10: Intermediate Supply Powm02 And Powm04
Manual POWM01 / POWM02 / POWM03 / POWM04 4.2 Intermediate supply POWM02 and POWM04 Fig. 4: POWM02 POWM04 EXT: Feed-in to the power supply: • 24 to 70 V supply voltage (for motors and generates internally the logic voltages) – 20 A max. •... -
Page 11: Technical Data
5 Technical Data 5.1 Declaration of Incorporation: Modules gen. and ext. Supply MA 1273-A007 EN... - Page 12 Manual POWM01 / POWM02 / POWM03 / POWM04 MA 1273-A007 EN...
-
Page 13: Declaration Of Incorporation: Modules With Internal Supply Int
5.2 Declaration of Incorporation: Modules with internal Supply MA 1273-A007 EN... - Page 14 Manual POWM01 / POWM02 / POWM03 / POWM04 MA 1273-A007 EN...
-
Page 15: Mechanical Data
5.3 Mechanical Data Dimension 100 x 100 mm without front panel Weight POWM01: 68 g / 90 g (without/with front panel) POWM02: 53 g / 86 g (without/with front panel) POWM03: 63 g / 85 g (without/with front panel) -
Page 16: Features Powm01 And Powm03
Manual POWM01 / POWM02 / POWM03 / POWM04 5.4 Features POWM01 and POWM03 Features Power supply 24…70 V / 20 A max. (motor supply U (±20 %) electrically isolated / 5 A max. (I/O supply) +24 V POWM01 24…70 V / max.20 A (motor supply U +24 V (±20%) electrically isolated / max. - Page 17 Interfaces 24-70 V Motor-Supply 24 V to 70 V input range for the supply of the power (POWM01) stages and for generating the internal logic supply. 24 V I/O-Supply Separate 24 V for the supply of I/Os (e.g. digital...
-
Page 18: Features Powm02 And Powm04
Manual POWM01 / POWM02 / POWM03 / POWM04 5.5 Features POWM02 and POWM04 If the total current of all modules in a voltage group (20 A) is exceeded, or if a voltage group has various voltages to begin with, the POWM02 and POWM04 module must be applied for the supply of the power stages and I/Os. - Page 19 Interfaces 24–70V Motor-Supply 24 V to 70 V input range for the supply of the power (POWM02) stages and for generating the internal logic supply. 24 V I/O-Supply Separate 24 V for the supply of I/Os (e.g. digital (POWM02) inputs/outputs of the DIOM01), limit and reference switches (e.g.
-
Page 20: Functions
HOST interface) to Local (the controller is running in pure stand-alone mode with a sequential program). • Reset button for the resetting of the controller • Connection of an external phytron touch panel (e.g. Android-based tablet) MA 1273-A007 EN... -
Page 21: Installation
6 Installation 6.1 Mechanical Installation phytron always delivers the phyMOTION completely assembled in order to make sure you can start with the installation and the wiring right way. Further Manual Detailed information on this subject is in a supporting manual: “phyMOTION... - Page 22 Manual POWM01 / POWM02 / POWM03 / POWM04 WARNING – Serious injury from electric shock! During electrical installation cables, connectors, etc. can be live. Before starting wiring, make sure that none of the power supplies are connected to the primary side of the mains supply. Isolate the power supplies from the mains or remove the appropriate fuses.
-
Page 23: Assembly Rules
6.1.1 Assembly Rules Observe the following when installing a POWM01/POWM02 module: POWM01 and POWM03 Each configuration starts with a POWM01 or POWM03 main supply and configuration module. Then mount a CPU module MCM01 or MCM02 which also contain a selectable host interface module. - Page 24 Manual POWM01 / POWM02 / POWM03 / POWM04 Push the module card carefully into the guide rail until the rear contacts the housing’s frame of the phyMOTION Connect the POWM01 or POWM03 module with the connector (2x10 pins, ribbon cable) to the MCM01 on the rear side.
-
Page 25: Electrical Installation
6.2 Electrical Installation Ensure sufficient bending radius of the cables during installation. Do not lay the cables in tension or bend them. We recommend labelling the mating connectors to prevent interchanging the connectors. If all the connections are made, the last step is to plug in the power supply to the mains. -
Page 26: Pin Assignment Powm02 And Powm04
Manual POWM01 / POWM02 / POWM03 / POWM04 6.2.2 Pin Assignment POWM02 and POWM04 Here is the pin assignment for the POWM02 and POWM04 module: Fig. 5: Pin assignment POWM02 and POWM04 For wiring please use the above defined mating connectors. MA 1273-A007 EN... -
Page 27: Pin Assignment Powm01
6.2.3 Pin Assignment POWM01 Here is the pin assignment for the POWM01 module: Fig. 6: Pin Assignment POWM01 and POWM03 MA 1273-A007 EN... - Page 28 To use the USB interface please install the appropriate USB driver in advance before connecting the phyMOTION Install the USB drivers from the delivered phytron CD. Administrator authorizations are required for the driver installation. Use a USB cable with a maximum length of 2 m! If you want to test several USB devices, which are identical in construction, you should use the same USB port on the PC.
- Page 29 Touch Panel Connection A terminal with touch functionality (e.g, Android-based tablet) can be connected to this interface. Fig. 9: 4 pin Western modular connector L flat oval 4p/4 K It is used e.g. for configuring and diagnosing the phyMOTION controller e.g.
-
Page 30: Commissioning
Manual POWM01 / POWM02 / POWM03 / POWM04 7 Commissioning Please read the manual for basic commissioning information of the DIOM01 module: Further manual Detailed information on this subject is in a supporting manual: “phyMOTION Modular Multi-axis Controller for Stepper Motors” The programming environment phyLOGIC ToolBox is explained in the following manual: Further manual... -
Page 31: Usb Driver Installation (Windows)
7.1 USB Driver Installation (Windows) • Insert the Phytron-CD and open the folder USB Driver by the Windows Explorer. Select the .exe program which goes with your system software and start it by double clicking. The following window is shown on the desktop after a successful installation: •... -
Page 32: Dip Coded Rotary Switch
Manual POWM01 / POWM02 / POWM03 / POWM04 7.2 DIP Coded Rotary Switch The DIP switch is used to set the bus address for systems such as RS 485 or CAN. Fig. 10: 16 stage DIP coded rotary switch: calibration 0...F 7.3 REMOTE/LOCAL Switch R/L The mode can be selected with the REMOTE/LOCAL switch: REMOTE:... -
Page 33: Diagnostic By Led Display
7.4 Diagnostic by LED Display The LEDs indicate the status of the power modules by colours and flashing: Fig. 11: Status LEDs LEDs left right off No power supply connected – green Ready, power supply available > 20 V red –... -
Page 34: Parameterising The Module
Manual POWM01 / POWM02 / POWM03 / POWM04 8 Parameterising the Module There is no parameterising for the POWM modules! For more information about parameters and programming of the phyMOTION see the following manual: Further manual Detailed information on this subject is in a supporting manual: “phyLOGIC Command Reference for the phyMOTION Controller”... -
Page 35: Service
- If you want to use the phyMOTION™ after removing a module, the gap has to be sealed with a blanking plate before power supply is reconnected and switched on. - To send a module to phytron use ESD packaging only. 10 Version / Compatibility POWM01.2/POWM02.2 can NOT be used to replace POWM01.1/POWM02.1. -
Page 36: Warranty, Disclaimer And Registered Trademarks
11 Warranty, Disclaimer and Registered Trademarks 11.1 Disclaimer Phytron GmbH has verified the contents of the manual to match with the hardware and software. However, errors and omissions are exempt and phytron GmbH assumes no responsibility for complete compliance. The information contained in this publication is reviewed regularly and any necessary corrections are included in subsequent editions. -
Page 37: Index
12 Index Assembly 24 Mating connector 26 Module supply 18, 20 Baud rate 29 Bedienterminal 30 Parameter 29 Pin assignment 27, 28 Potential separation 17 Commissioning 31 Power supply 24 Copyright 2 Programming 31 Current capacity 17, 20 Remote 17, 33...
