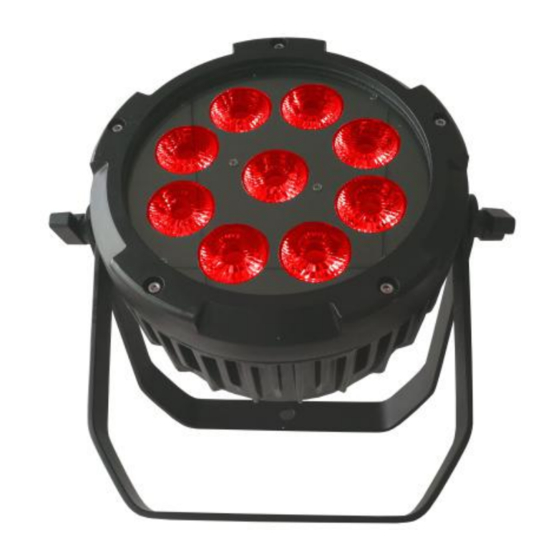

- Page 1 EXALITE EXL-IP65 Batt/W Par25° RGBWAUV User manual...
- Page 2 Catalog 1. Precautions ......................2 2. Features ........................2 3. Menu structure ..................... 2 3.1Menu ........................3 3.2 Operation ......................4 4. DMX .......................... 7 4.1 built-in program control ................7 5. DMX512 channel list ................... 7...
- Page 3 1. Caution Please read over this manual before operating. PCBA Please take care for it, not stackable, do not litter, prevent PCBA deformation, component damage, such as the loss of the pad. The power input DC 12V voltage, positive and negative can not be reversed. ...
- Page 4 "rXXX" "GXXX" "bXXX" X=0-255 "StAt" "UXXX" "yXXX" "PXXX" X=0-20 "StXX" "CoLo" "xx=1-32" CLxx "Auto" "xx=1-99" SAVE "FAdE" "xx=1-99" SAVE "SnAP" "xx=1-99" SAVE "Sou1" "Soud" "SE00~SE99" "Sou2" "Sou3" "tESt" "on/oFF" "rF24" "Fr 1~Fr 7" "FrEq" "WIFI" "on/oFF" "LEd" "SySt" "rEd" "GrEE" "bLuE"...
- Page 5 Operation About the off & on operation: In the off state, after pressing the MENU button for 3 seconds, the digital tube is turned on, and the required function operation can be performed. If the lamp is not connected to the commercial power, the battery power can be checked by pressing the MENU button.
- Page 6 (6 channels mode), “10Ch” (10CH channel mode). After selecting channel, the parameters will be saved automatically. If you press ENTER MENU button, the display will exit to the previous menu mode. "SLAu" accessory mode Select “SLAu” (Slave mode) and press the ENTER button to display “SLAU”, indicating that the Slave has entered the receive mode of the slave.
- Page 7 the faster the speed. After the selection, the parameter will be saved automatically. If you press the ENTER button, the display will exit to the previous menu mode. If you press the MENU button, the display will advance to the next main menu mode. "SnAP"...
- Page 8 menu mode. The parameters will be automatically saved after exiting. When select the "UIFI" on display, the system turns on the power of the WiFi mode and enters the mobile phone dimming control mode. If you press the ENTER button, press the MENU button to exit to the previous menu mode, and the parameters will be automatically saved after exiting.
- Page 9 0~255 Green dimmer 0~255 Blue dimmer 0~255 While dimmer 0~255 Amber dimmer 0~255 UV dimmer 10CH mode: Value function 0~255 General Dimmer,the 9 CH(0~9) 0~255 Red dimmer 0~255 Green dimmer 0~255 Blue dimmer 0~255 White dimmer 0~255 Amber dimmer 0~255 UV dimmer Strobe off 10~255...
