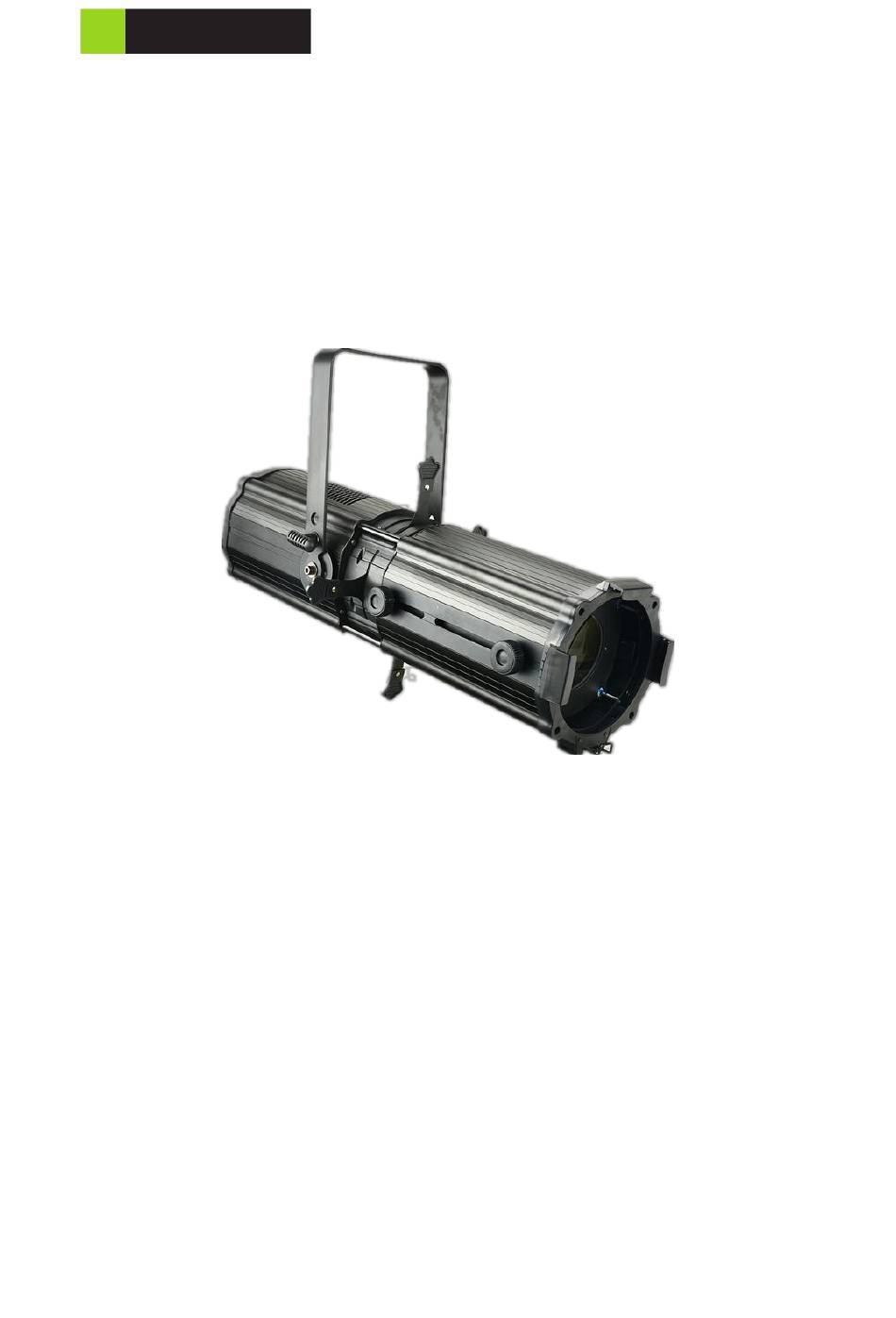

- Page 1 EXALITE EXL-XL Profile Zoom RGBW 200W USER MANUAL CE RoHS...
-
Page 2: Technical Parameter
Technical Parameter: • LED POWER: 200W • LED Color: RGBW 4in1 COB LED • IC Chip :Epistar • LED Life Time: over 10,000 hours • Color Rendering Index(CRI): Ra≥90 • Voltage: AC90-260V 50-60Hz • Max.power consumption: 260W • Beam angle: Zoom from 20°to 45° •... - Page 3 1. Description 1.1. Character 4 control mode External control mode DMX512 controller controller mode （2 kind of DMX Channel） Master/slave Auto mode Built-in Program Different kind of Gradual change& Random change Different kind of strobe：speed (slow to fast)、fix color( Strobe +color、...
- Page 4 1.2.Multi-light working in the same time When using controller to control several lights , and using strobe , auto mode, the controller just send the channel data . Those effect( strobe ,auto running ,fix color)would be showed by itself. And should be attention for the follow situation: 1.
-
Page 5: Key Operation
2.Operation 2.1 Key operation Menu： The first list is the main menu (press MENU to exchange), the second list is submenu (press ENTER to get in or exchange) If the menu include the decimal point, that’s the data, and it can be set by the Key of Up/Down. Key operation：... - Page 6 2.2 Menu Data Menu State Operation Remark Main Menu Vice Menu No vice menu A: advance UP/DOWN adjust ID disconnect the adress controller and connect the External control ENTER save the ID mode address master light, then it will follow the (standard channel model) master light.
- Page 7 temperature control current temperature ENTER change to vice menu t: top UP/DOWN change the data of temperature protect set the protect ENTER save and temperature change With menus Wt: white UP/DOWN Color temperature ENTER Enter the vice setting menu r、G、b、W…… UP/DOWN Change the value of led...
-
Page 8: Channel Data
2.3 Channel data 2.3.1 Channel Channel Data Function 0~255 Dimmer 0~255 0~255 Green 0~255 Blue 0~255 White 0~30 No effect 31~200 Color change 201~205 Color temperature 1 (3200K) Can be set via menu of ..Color temperature 2~10 (each 5 data “WT.xx”... -
Page 9: Safety Warning
SAFETY WARNING 1. Warning ﹡ Every person involved with the installation , operation and maintenance of this device has to be qualified . ﹡ User must follow the instructions of this manual Unqualified person can not open the housing cover and operate the device , or the dealer will not ﹡... -
Page 10: Problem And Solution
APPENDIX Problem and solution Caution : ﹡ Unqualified person involved with installation , operation and maintenance of this device is prohibited . ﹡ If any above mentioned problem happened , or unknown problem happened , please contact manufactory or distributor or distributor for assistance... - Page 11 DISCLAIMER 1. The device is with one year warranty . The warranty period appear non-artificial quality problem, this company is responsible for free maintenance 2. User violate operation caused the machine failure, this is user responsibility. 3. If due to the wrong operation or intense impact caused product destroy even safety accidents, the manufacturer does not undertake any responsibility 4.
