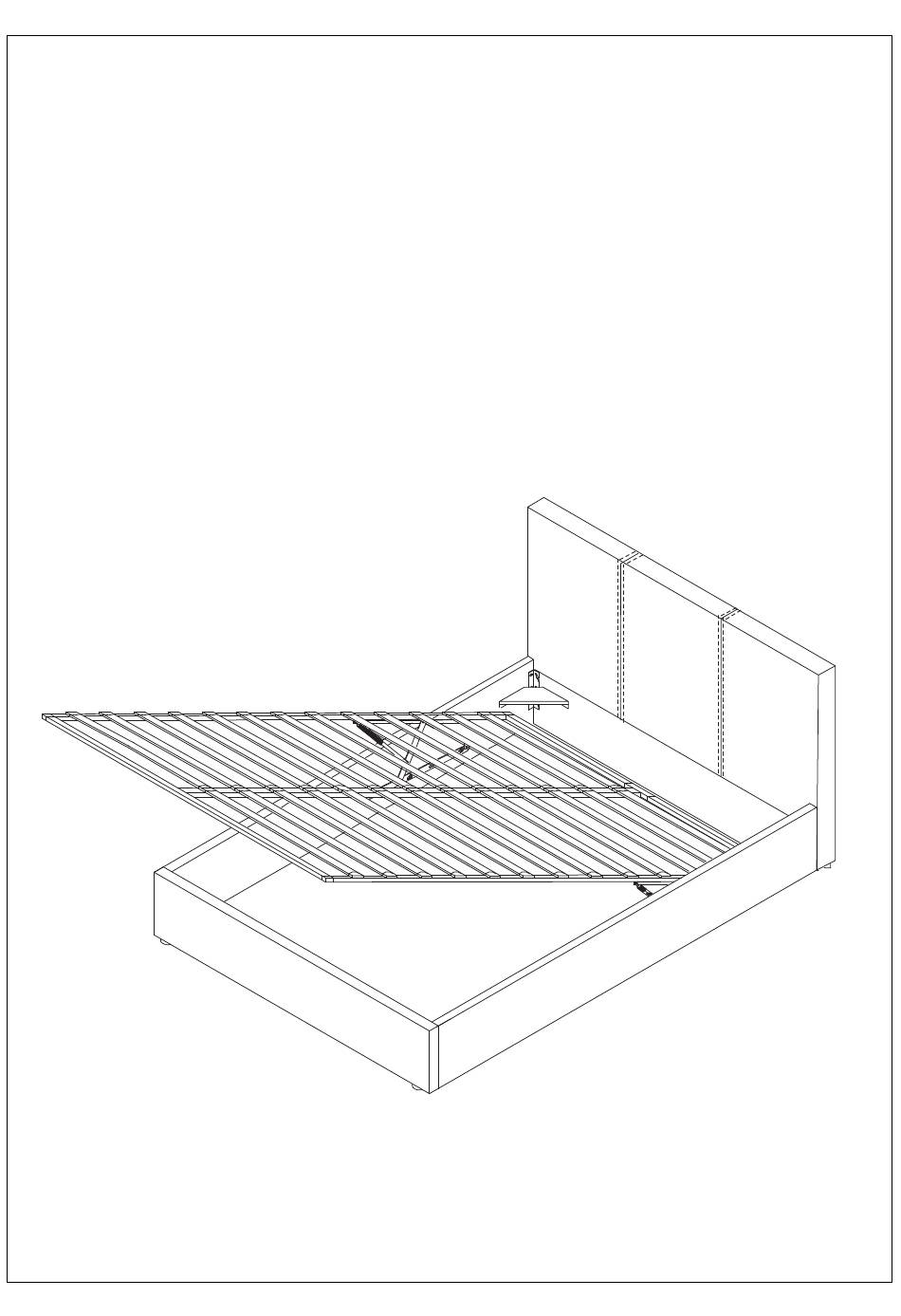

- Page 1 FABRIC STORAGE BED 150CM Assembly Instructions RIA302 VERSION: 210518...
- Page 2 No Extra Tools Required Customer Services...
- Page 3 HARDWARE M8 x 25mm (12 PCS) NUT (2 PCS) M6 x 30mm (6 PCS) M6 x 15mm (12 PCS) M6 x 68mm (2 PCS) FLAT WASHER (12 PCS) 5mm ALLEN KEY (1 PC) SPRING WASHER (12 PCS) 4mm ALLEN KEY (1 PC) SPANNER (1 PC) PARTS...
-
Page 4: Safety Advise
Safety Advise Please take the time to carefully read through the whole of these instructions before you commence. Keep these instructions for future reference. Unpack, inspect and check off all of the contents. Please dispose of all packaging safety. Small component part could choke a child if swallowed. We strongly recommend that you keep children well away from the work area. - Page 5 Attaching side rails to headboard. & Repeat step 1 for footboard. Before tightening the bolts, please ensure the bed frame is square.
- Page 6 Fix corner brackets, then repeat for other 3 corner brackets in each corner of the bed frame. & Fix holding block on back of footboard...
- Page 7 Secure hydraulic arms Before connecting the hydraulic arm, ensure the lifting mechanism is functioning correctly - it should lift up and down freely with adequate clearance on all sides. DO NOT OVERTIGHTEN THE NUTS ! Assemble the base 3&4...
- Page 8 Attach non-woven fabric dust cover rst, then adjustable legs. Assemble slats...
- Page 9 Attach belt to the metal frame by loop-on method as shown, pull tight after loop-on. Place the mattress onto the frame. (MATTRESS NOT INCLUDED) Notes: It is imperative that the bed is aligned squarely to prevent the frame from catching on and damaging the upholstered side rails. Please use extra caution when opening and closing the bed, ensure a similar spacing on each side of the frame.
- Page 10 General Care Wipe clean with a slightly damp soft cloth. Avoid the use of all household cleaners and abrasives. When moving your furniture, carefully lift into place. Never drag or push the pieces across the oor as this will cause damage to the joints and could result in failure to the product that will invalidate the warranty.
