MIDIBox Juno Control (JuCtrl)

Project Description

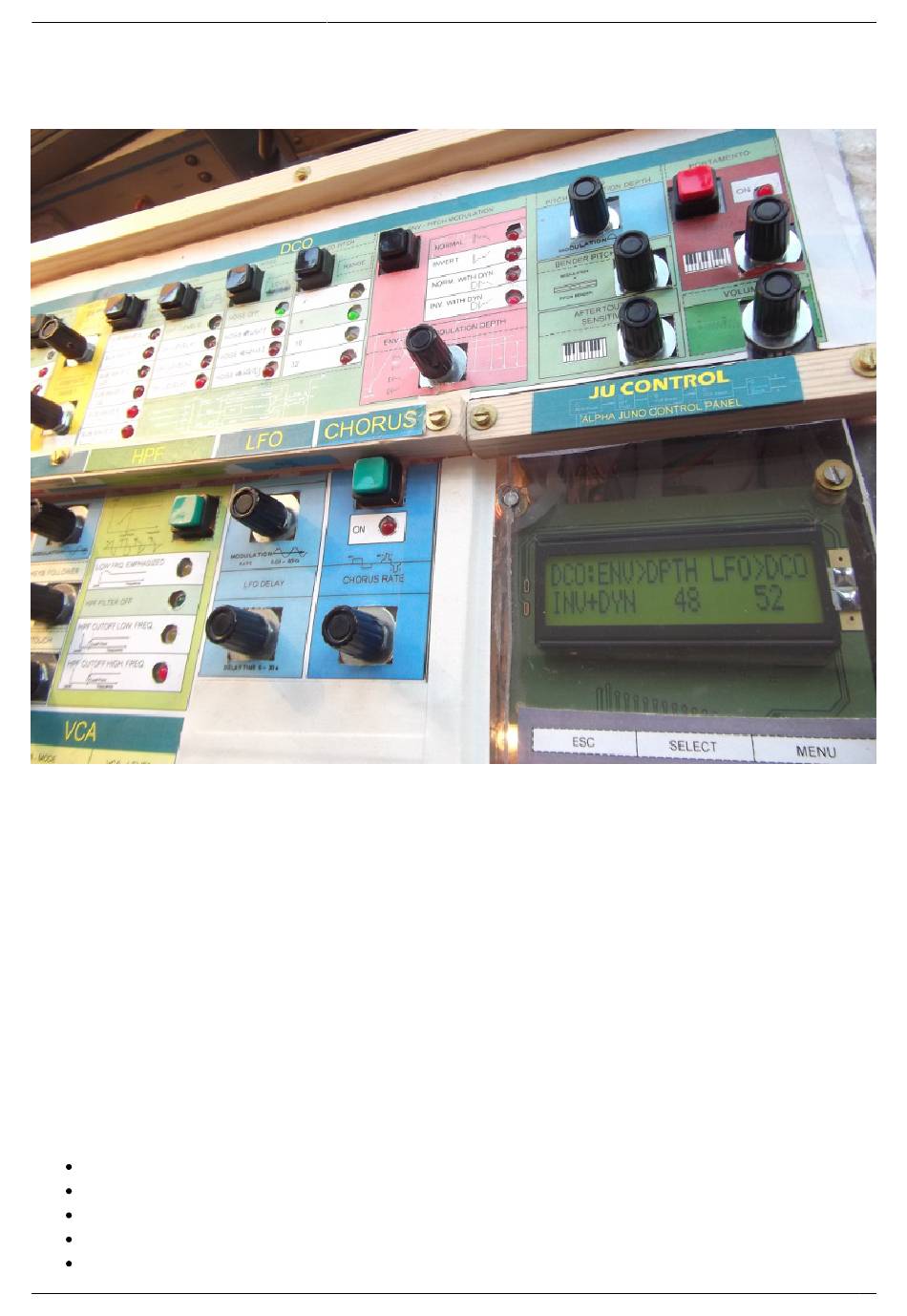

The MIDIBox JuCtrl is a Alpha Juno MIDI Controller https://en.wikipedia.org/wiki/Roland_Alpha_Juno.

It's an additional control surface and MIDI Controller for the Roland Alpha Juno Synthesizer. I started

this Project because the original Juno User CS is very minimalistic (80s Style). With the MIDIbox

JuCtrl is every Tone parameter directly at hand. Furthermore you can store all 128 Juno Tone Colours

on one Banksticks (1024 Juno Tones with 8 Banksticks).

Functions

Control every Juno Tone Parameter with an encoder or button

Control one parameter (Juno IPR Sysex) or send all parameter at once (Juno APR Sysex)

Store Juno patches (Tones) on Bankstick (Juno BLD Sysex)

Have a clearly arranged parameter overview (via CS LCD & LED)

MIDI processing: MIDI CC to Juno Sysex conversation (and Juno Sysex to MIDI CC conversation)

MIDIbox - http://www.midibox.org/dokuwiki/

1/14

MIDIBox Juno Control (JuCtrl)

Need help?

Do you have a question about the Juno Control and is the answer not in the manual?

Questions and answers

Summary of Contents for MIDIbox Juno Control

Page 1 It's an additional control surface and MIDI Controller for the Roland Alpha Juno Synthesizer. I started this Project because the original Juno User CS is very minimalistic (80s Style). With the MIDIbox JuCtrl is every Tone parameter directly at hand. Furthermore you can store all 128 Juno Tone Colours on one Banksticks (1024 Juno Tones with 8 Banksticks).
Page 2 Last update: ju_control_roland_alpha_juno_control_panel_cs http://www.midibox.org/dokuwiki/doku.php?id=ju_control_roland_alpha_juno_control_panel_cs 2017/09/19 13:14 Use some extra Envelope functions (set all Envelope leve/time parameter to min or max & manipulate all time or level parameter at once with an encoder) Hardware JuCtrl Hardware: 1x MBHP Core8 (PIC 18F4620) | ⇒ (http://www.ucapps.de/mbhp_core.html) 1x LCD Module: 2×20 LCD (8bit) | ⇒...
Page 3 2020/11/16 14:25 3/14 MIDIBox Juno Control (JuCtrl) MIDI CC 016 - DCO LFO Modulation (0..7F) MIDI CC 017 - DCO Envelope Pitch Modulation Depth (0..7F) MIDI CC 018 - DCO Aftertouch Modulation Sensitivity (0..7F) MIDI CC 019 - DCO WAVE 3 PULSE WITH (0..7F) MIDI CC 020 - DCO WAV3 PWM Rate (0..7F)
Page 4 Last update: ju_control_roland_alpha_juno_control_panel_cs http://www.midibox.org/dokuwiki/doku.php?id=ju_control_roland_alpha_juno_control_panel_cs 2017/09/19 13:14 MIDI CC 062 MIDI CC 063 MIDI CC 064 - Hold ON/OFF (REAL CC) MIDI CC 065 - Portamento ON/OFF (REAL CC) MIDI CC 066 MIDI CC 067 MIDI CC 068 MIDI CC 069...
Page 5 2020/11/16 14:25 5/14 MIDIBox Juno Control (JuCtrl) MIDI CC 107 MIDI CC 108 MIDI CC 109 MIDI CC 110 MIDI CC 111 MIDI CC 112 MIDI CC 113 MIDI CC 114 MIDI CC 115 MIDI CC 116 MIDI CC 117...
Page 6 Last update: ju_control_roland_alpha_juno_control_panel_cs http://www.midibox.org/dokuwiki/doku.php?id=ju_control_roland_alpha_juno_control_panel_cs 2017/09/19 13:14 PRESS: [DATA TRANFERE] + [WRITE] + [DUMP] @Alpha Juno Now JuCtrl will RECEIVE 64 TONE COLOURS via SYSEX-DATA and write 64x TONE PATCHES to your selected BANKSTICK. All Done. BROWNS THE STORED TONE COLOURS with the “SELECT BANKSTICK TONE” ENCODER (0-127) THE TONE NAME WILL APPEAR ON THE JuCtrl LCD.
Page 7 2020/11/16 14:25 7/14 MIDIBox Juno Control (JuCtrl) MIDIbox - http://www.midibox.org/dokuwiki/...
Page 8 Last update: ju_control_roland_alpha_juno_control_panel_cs http://www.midibox.org/dokuwiki/doku.php?id=ju_control_roland_alpha_juno_control_panel_cs 2017/09/19 13:14 ProgChange Juno ProgChange & JuCtrl Bankstick TONE (overview) JuCtrl JuCtrl MIDI Juno Alpha Juno BANKSTICK (1-8) BANK LCD ProgCh GROUP TONE BS content BS content BS content NUMBER or USER SAVED MEMORY MEMORY 1 1 or PRESET 1 1 “JuCtrl CS”...
Page 9 2020/11/16 14:25 9/14 MIDIBox Juno Control (JuCtrl) or USER SAVED MEMORY MEMORY 3 4 or PRESET 3 4 “JuCtrl CS” or USER SAVED MEMORY MEMORY 3 5 or PRESET 3 5 “JuCtrl CS” or USER SAVED MEMORY MEMORY 3 6 or PRESET 3 6 “JuCtrl CS”...
Page 10 Last update: ju_control_roland_alpha_juno_control_panel_cs http://www.midibox.org/dokuwiki/doku.php?id=ju_control_roland_alpha_juno_control_panel_cs 2017/09/19 13:14 or USER SAVED MEMORY MEMORY 6 5 or PRESET 6 5 “JuCtrl CS” or USER SAVED MEMORY MEMORY 6 6 or PRESET 6 6 “JuCtrl CS” or USER SAVED MEMORY MEMORY 6 7 or PRESET 6 7 “JuCtrl CS”...
Page 11 2020/11/16 14:25 11/14 MIDIBox Juno Control (JuCtrl) or USER SAVED PRESET PRESET 1 5 or MEMORY 1 5 “JuCtrl CS” or USER SAVED PRESET PRESET 1 6 or MEMORY 1 6 “JuCtrl CS” or USER SAVED PRESET PRESET 1 7 or MEMORY 1 7 “JuCtrl CS”...
Page 12 Last update: ju_control_roland_alpha_juno_control_panel_cs http://www.midibox.org/dokuwiki/doku.php?id=ju_control_roland_alpha_juno_control_panel_cs 2017/09/19 13:14 or USER SAVED PRESET PRESET 4 6 or MEMORY 4 6 “JuCtrl CS” or USER SAVED PRESET PRESET 4 7 or MEMORY 4 7 “JuCtrl CS” or USER SAVED PRESET PRESET 4 8 or MEMORY 4 8 “JuCtrl CS”...
Page 13 2020/11/16 14:25 13/14 MIDIBox Juno Control (JuCtrl) or USER SAVED 118 117 PRESET 117 PRESET 7 6 or MEMORY 7 6 “JuCtrl CS” or USER SAVED 119 118 PRESET 118 PRESET 7 7 or MEMORY 7 7 “JuCtrl CS” or USER SAVED...
Page 14 Last update: ju_control_roland_alpha_juno_control_panel_cs http://www.midibox.org/dokuwiki/doku.php?id=ju_control_roland_alpha_juno_control_panel_cs 2017/09/19 13:14 the Alpha Juno now - so better update to V1.001 Note: The Juno Keyboard does NOT have the Aftertouch function itself. But with another Keyboard or Sequencer connected (to JuCtrl MIDI IN) You can use all the nice Aftertouch Effects of the Roland Alpha Juno.
