Janitza electronics GmbH
Vor dem Polstück 6
D-35633 Lahnau
Telefonischer Support: +49 6441 9642-22
E-Mail: info@janitza.com
www.janitza.com

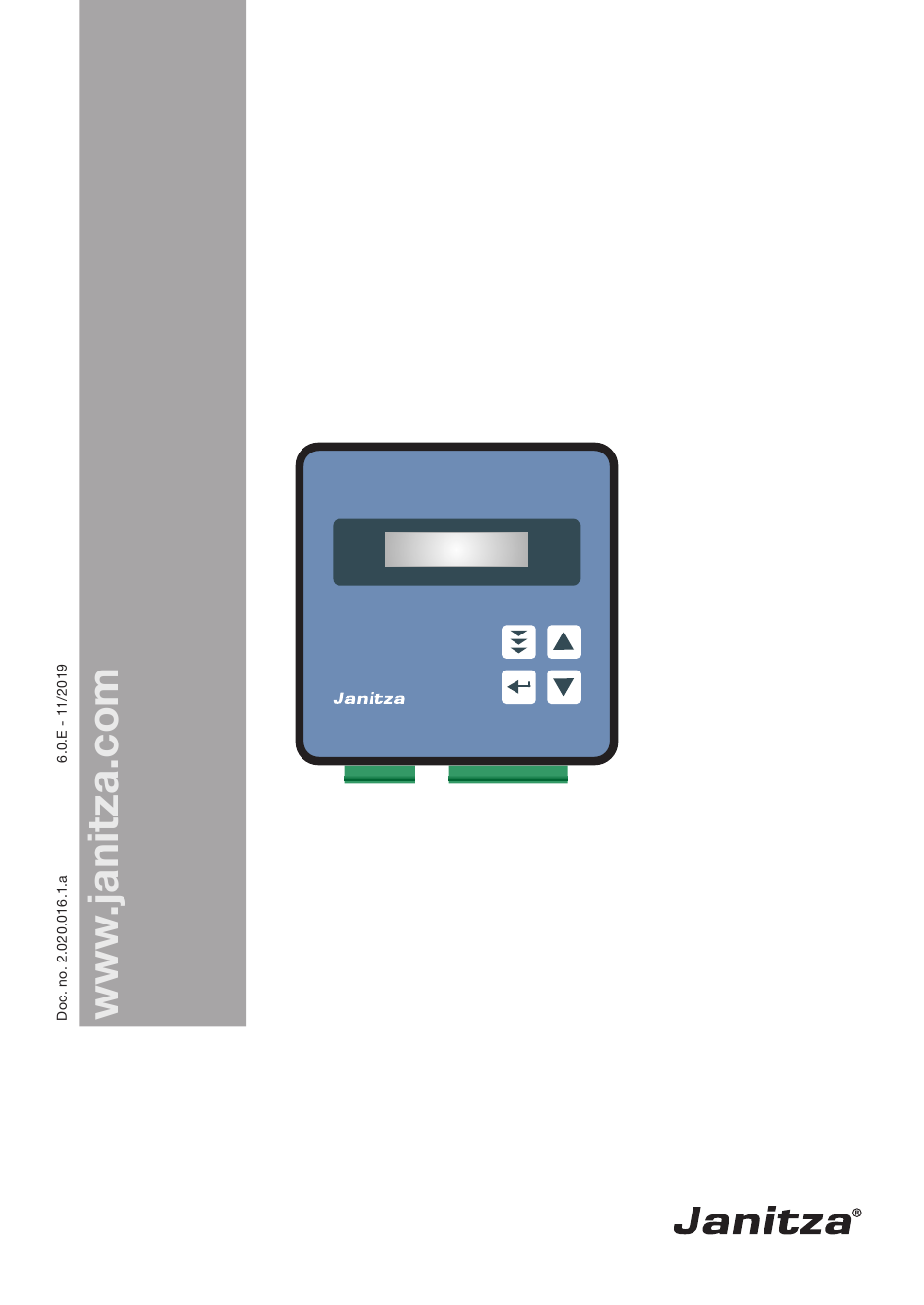

Power Factor Controller
Prophi
6R
®
Manual

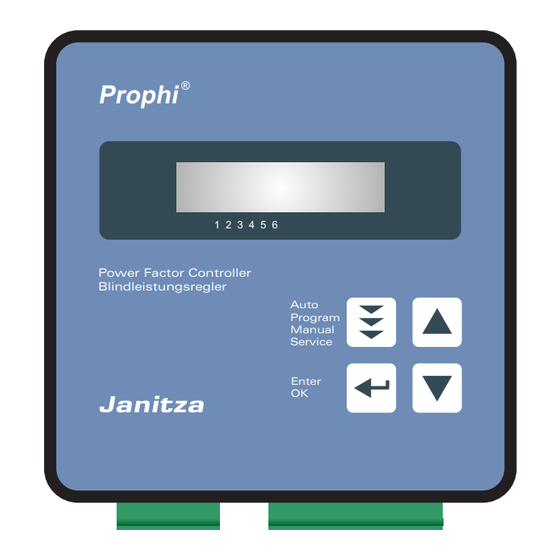

Power Factor Controller
Prophi 6R
Prophi
®
1 2 3 4 5 6
Power Factor Controller
Blindleistungsregler
Manual
®
Auto
Program
Manual
Service
Enter
OK
Version 6.0 E - 11/2019
Advertisement
Table of Contents
Related Manuals for janitza Prophi 6R
Summary of Contents for janitza Prophi 6R
- Page 1 Power Factor Controller Prophi ® Manual Power Factor Controller Prophi 6R ® Prophi ® 1 2 3 4 5 6 Power Factor Controller Blindleistungsregler Auto Program Manual Service Enter Manual Version 6.0 E - 11/2019 Janitza electronics GmbH Vor dem Polstück 6...
- Page 2 Prophi ® CONTENTS Section 1 General / type series and accessories Section 2 Installation of the controller / connection diagram Current measurement Programming of phase-correction Alarm output / error messages Section 3 Operating modes Section 4 Automatic operation / display functions Section 5 Programming Automatic initialization...
- Page 3 Prophi ® Section1 General The power factor controller Prophi-6R is a modern control device of innovative design with a variety of functions. It is designed for a measuring voltage of 30...525V (L-N) or (L-L) and a supply voltage of 110...230VAC (+/- 15%) It features a user interface with a menu-driven display in plain text for maximum ease of operation.
- Page 4 Manual Service parameter Enter Reduce selected parameter Fig. 2 Rear view Blindleistungsregler Power factor regulator Type: Prophi 6R Meas.voltage: 30-525VAC (L-N) /(L-L) Power supply: 110 - 230VAC 50/60Hz Ser.No.: 0815 / 2019 supply- meas. meas.current 1. capacitor- voltage voltage Im (5A/1A)
- Page 5 Prophi ® Section 2 Installation and connection of the controller The controller is designed to be incorporated into the front panel of a PFC-cabinet. It requires a switchboard section of 138 x 138 mm to DIN 43700/ IEC 61554. The controller is inserted from the front and is attached by means of the appended clamps.
- Page 6 Prophi ® 2.1 Current measurement When installing the current converter, care should be taken to ensure that the load current flows through it. The outputs of the compensation network must be installed behind the current converter (in the direction of current flow). If the device is connected up via sum-current converters, the overall conversion ratio is entered.
- Page 7 Prophi ® 2.3 Alarm output / error messages The alarm contact is closed in normal operation and opens in the event of a fault. The relevant fault is simultaneously shown on the display in plain text (alternating with the standard display in automatic operation) UNDER-COMPENSATED Display and relay output missing reactive power...
- Page 8 Prophi ® Repeated pressing of the "Operating Mode” key takes the user to the various menus in sequence: Automatic operation - Programming - Manual (manual operation)- Service - Expert mode and back. Automatic oper. Programming Manual operation Service Expert mode to display operation to programming to manual operation...
- Page 9 Prophi ® Section 5 Programming Pressing the "Operating mode” key once takes the user from automatic operation to Programming mode. Parameter 1 ( I-CONVERTER) is reached by pressing "ENTER”. The upper display always shows the parameter and the lower one the set value. The values are changed by pressing the é...
- Page 10 Prophi ® 5.2. Manual programming (program menu) LANGUAGE SELECTION: This selects the language of the operating menu (German, English, Spanish, Portuguese, French, RU, Cz, NL, PL, TR) 1 I-CONVERTER PRIM: [ 5...13000]A This selects the primary current of the current converter. Adjustment is via the é...
- Page 11 Prophi ® 8 MEASURING VOLTAGE [ 30 ... 525]V Programming the measuring voltage of the system. The values programmed here always refer to the voltage at the clamps ! The voltage is selected via the é /ê keys. Save and continue with ENTER. 9 V - CONVERTER RATIO [ NO / 230V ...
- Page 12 Prophi ® 13 ALARM TEMP [ 50...85]°C The alarm temperature programmed here is the temperature at which the capacitor stages are disconnected in steps. The controller’s alarm relay responds after ten minutes. At the same time the display shows the cause of the alarm (over-temperature).
- Page 13 Prophi ® Section 6 Manual operation (initial operation, maintenance, service) Programming of fixed stages In manual operation, capacitor branches can be connected/disconnected in the set control series and switching time - irrespective of prevailing power-line conditions. The starting condition is STOPP (no stages connected). Connections are made by pressing the é...
- Page 14 Prophi ® Section 7 Service menu The service menu is reached by the operating-mode key. The stored maximum values of the network parameters can be displayed here as well as the number of switching operations of the individual capacitors and their operating time. The desired stages [in square brackets] can be selected via the arrow keys.
- Page 15 Prophi ® Section 8 Expert mode 1 and 2 The expert mode is meant for the adjustment of values which normally should not be changed. As a protection against mal-operation this level has an access code branching out in Expert mode 1 or 2. Password: Expert mode 1: “...
- Page 16 Prophi ® 12 PHASE I [ 0°] [L1] - L1 - N ] Adjustment of current phase position 13 PHASE V [ 0°] L1 - [L1 - N ] Adjustment of voltage phase position Phase correction between voltage and current in the measuring system. (refer p.6) 14 C-TEST [YES] ( YES / NO)
- Page 17 Prophi ® 8.2. Expert mode 2 ( Password: 2244) The additional 2nd expert mode includes all messages for operation, warning and error which are displayed by the controller. Here they may be deactivated separately. When deactivated, the indication of the message in the display as well as possible activation of the relay or effects on the control behavior are suppressed (detailed list of all messages s.
- Page 18 Prophi ® Section 9 Control principle The control response of the Prophi-6R can be selected in programming mode. In principle, the controller has four different control modes: 1. Sequential connection In sequential connection, the required capacitor stages are successively connected and disconnected in stages (last in - first out).
- Page 19 Prophi ® Section 10 Interface (not applicable) Section 11 Initial operation The controller must have been installed before being set up and operated. All network-specific parameters are fully programmed as described in section 5 (Programming) by being entered in sequence and stored. The controller is then set to automatic operation with the operating mode key.
- Page 20 Prophi ® Section 13 Troubleshooting Fault Check / Solution At target cos phi=1 and inductive load, Check terminals of the measuring voltage and switch-off or connection of capacitor in current (l and k)! the corrected line Check phase position Supply / Drawing mismatched Wrong line cos phi is displayed See above Display:"UNDER CURRENT”...
- Page 21 Prophi ® Section 14 Technical data Type series Prophi-6R 6 (7) Outputs Languages D / E / ES / RU / NL / CZ / PL / F / PT / TR Switching power of relay outputs 250 VAC, 1000 W Number of active outputs Programmable Operation and display...
- Page 22 Prophi ® Annex 1: Table of control series Control series Loop connection 1 : 1 : 1 : 1 : 1 : 1 : 1 Possible 1 : 2 : 2 : 2 : 2 : 2 : 2 Possible 1 : 2 : 3 : 3 : 3 : 3 : 3 Possible 1 : 2 : 3 : 4 : 4 : 4 : 4...
- Page 23 Prophi ® Annex 2: Default settings Note: The following values for the default settings apply only if the controller is supplied directly from the manufacturer. Otherwise, these values may have been replaced by settings made by the manufacturer of the compensation network (optimal values for the relevant network).
- Page 24 Prophi ® - 24 -...
- Page 25 Prophi ® By pressing the cursor buttons (up / down) only available if control the stage display mode can be changed serie “E” is selected AUTO MODE CONTROL SERIES PROGRAMMING 0.76 IND EDITOR AUTO-INIT [ NO ] LINE VOLTAGE LANGUAGE KVAR-RATIO [ 1 ] 1 CURRENT TRANSF.
- Page 26 Prophi ® SERVICE EXPERT MODE MANUAL MODE 1 PASSWORD ???? 1 PASSWORD ???? [ 6343 ] [ 2244 ] STOPP C 1.00 IND min./max VOLTAGE 2 BASIC SETTINGS EXPERT-MODE 2 NEW ? [ NO ] 250.0 V 3 SWITCH.OPERATION ALARM RELAY RESET [ NO ] FAILURE C1 : AUTO (FIXED / OFF )
- Page 27 Prophi ®...
- Page 28 Janitza electronics GmbH Vor dem Polstück 6 D-35633 Lahnau Tel.: +49 6441 - 9642-0 E-Mail: info@janitza.de info@janitza.de | www.janitza.de...
