b. Type the camera's IP address into the address bar on your internet browser.
c. Press Enter. If the browser does not display an introductory or logon window, the camera is not establishing a connection with the
server. Refer to the exacqVision User Manual, and
What to do next:
Repeat steps one to four for all other camera connections.
Connections
For information on the exacqVision LC-Series server's Hybrid and IP back panels, see Figure 2, Figure 3 and Table 1.

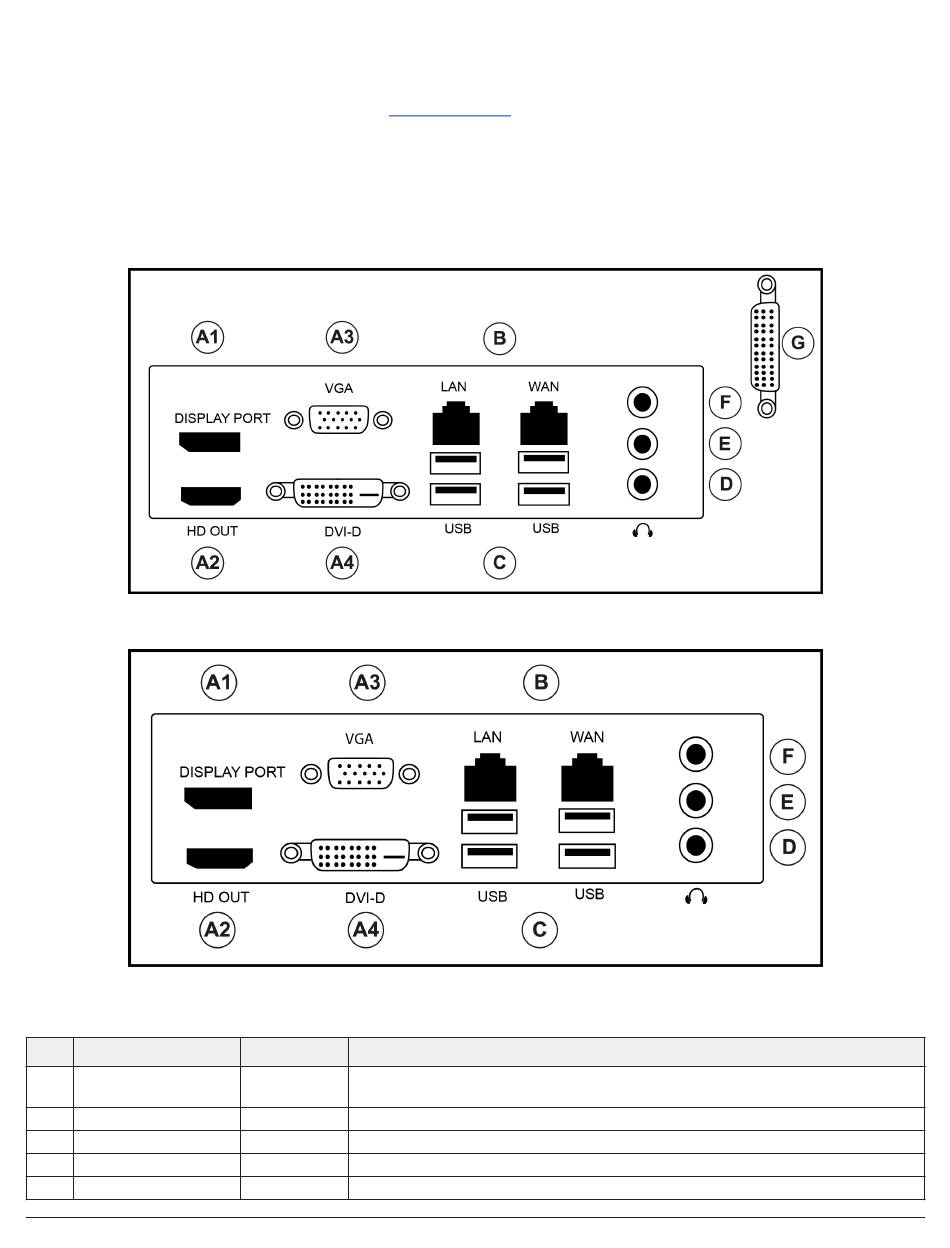

Figure 2: LC-Series Hybrid Only System back panel
Figure 3: LC-Series IP Only System back panel
The following table describes the ports for both the LC-Series Hybrid and the LC Series IP server.
Table1: LC-Series server back panel
Name
A Video out
B 10/100/1000 Ethernet
C USB 3.0
D Microphone input
E Audio out
LC-Series Quick Start Guide
www.exacq.com/kb
No. of Ports Description
4 Display Port (A1), HDMI (A2), VGA (A3), DVI-D (A4). You may use a maximum of two video
outputs simultaneously.
2 Dual on-board NICs.
4 USB keyboard, mouse, memory device, or DVD burner.
1 Microphone (pink)
1 Line out (green)
for a solution if the problem persists.
