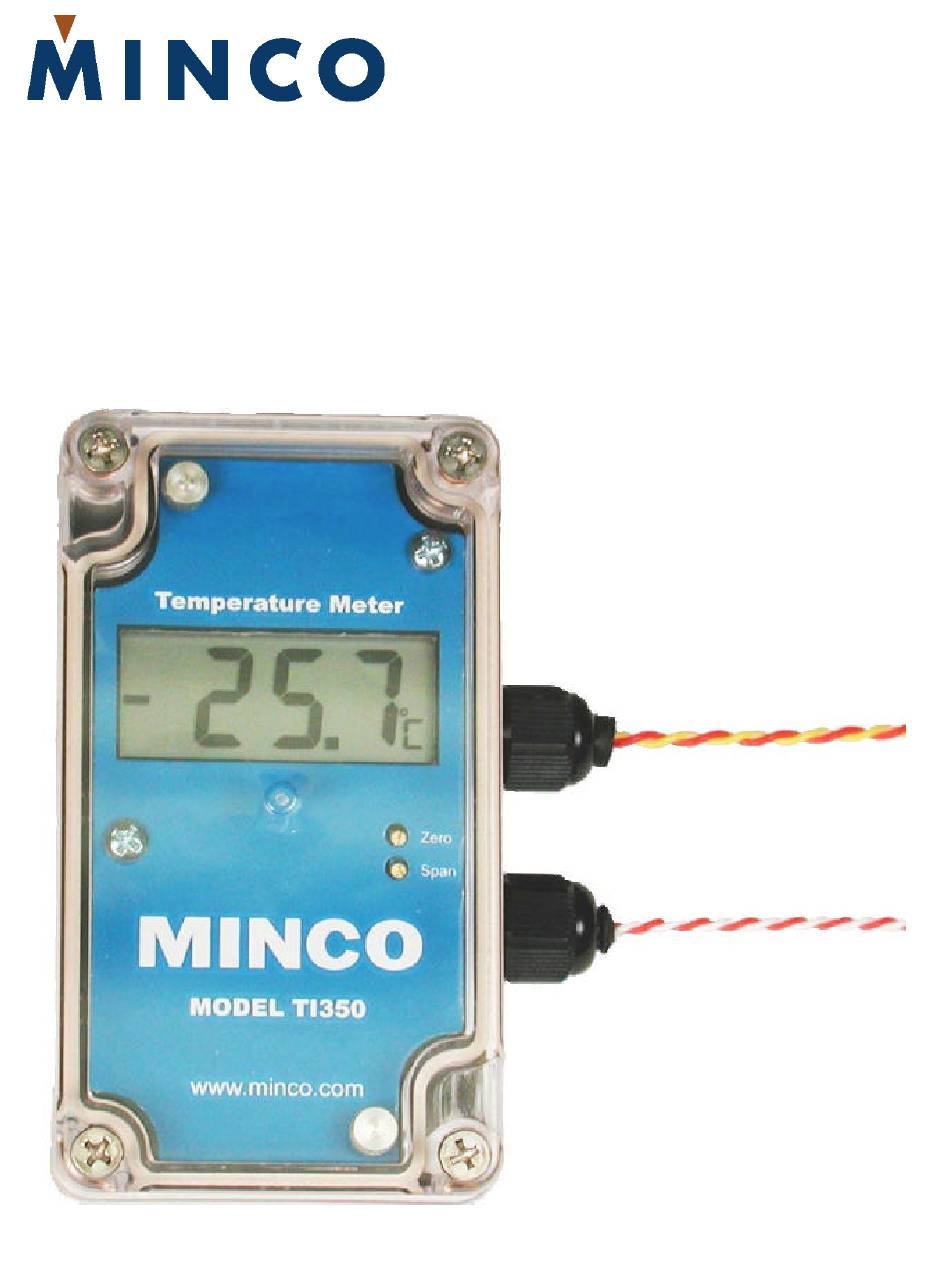

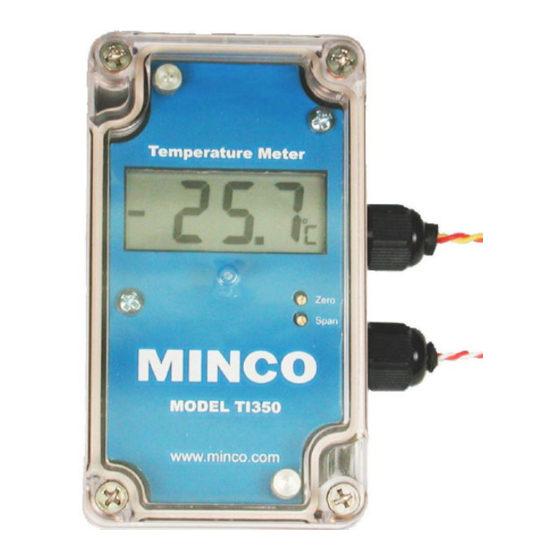

- Page 1 MODEL TI350 Temperature Indicator Installation and Operating Instructions...
- Page 2 DC signal displaying the corresponding temperature in °C or °F. If separate 4-20 mA transmitter is needed to drive the TI350, order a TT321 and RTD for a single source assembly. For convenience, the TT321 transmitter can mount inside the meter’s housing.
- Page 3 Set the unit’s designator using Table 3 . For example, if °C is chosen as the temperature units, then set switches 7=ON and 8=OFF. NOTE: Indicator requires calibration anytime temperature units are changed using dip switches. Table3 Temperature Units Switch °F °C Tel: (763) 571-3121 u Fax: (763) 571-0927 u Minco www.minco.com...
- Page 4 Figure 3 2. Set the calibrator to output 4.000 mA. 3. Adjust the meter adjustment “Zero” potentiometer until the TI350 display reads the temperature corresponding to 4 mA printed on the label. 4. Set the calibrator to output 20.000 mA.
- Page 5 500 °F display, it may give a reading like "-25" for a 3 mA current, not a “-1 .” Note: For further information on Minco temperature transmitters go to the following web link http://www.minco.com/site/transmitter.php Tel: (763) 571-3121 u Fax: (763) 571-0927 u Minco www.minco.com...
- Page 6 How to Order Model Number: TI350 Polycarbonate NEMA 4X case TI350 Temperature Range: Specify temperature range in either °C or °F. (-25/200) For example, -25° to +200°C = 4 to 20 mA. Display Mode: C = Celsius F = Fahrenheit TI350(-25/200)C …...
- Page 7 TI350 dimensions Warranty Items returned within one year from the date of sale, transportation prepaid, which Minco Products, Inc. (the “seller”) reasonably determines to be faulty by reason of defective materials or faulty workmanship will be replaced or repaired at the seller’s discretion, free of charge.
