Lorex SG7561B Quick Start Manual

Cable Extension Options
Extend the cable run for your camera up to 300ft depending on
the cable type used. See table below:
Max. # of
Max. Extension
Option Cable Type
Distance Extensions
1 60ft DIN 300ft / 92m
2 100ft DIN/ 300ft / 92m
Universal
3 250ft DIN 250ft / 76m
Notes:
1. Cable run recommendation based on typical camera power consumption (up
to 500mA). For specialty cameras with higher current consumption,
maximum cable run may be reduced. Consider providing power to the camera
at the camera side rather then at the end of the extension cable.
2. Indicators that your cable run may be too long:
• Video is permanently Black & White (even during day time)
• Video is distorted
Troubleshooting
Problem Solution
No Picture/Signal • Ensure connections are properly connected.
• Ensure the connector pins are not bent.
Picture is too bright • Ensure your camera isn't pointed directly at a
source of light (e.g sun or spot light).
• Slide the sunshade (bullet cameras only)
forward to block excess light.
• Move your camera to a different location.
Picture is too dark • Check the brightness and contrast settings of
the device your camera connects to (TV/
Monitor/DVR).
Night Vision is not • The night vision activates when light levels
working drop. The area may have too much light.
Picture is not clear • Check the camera lens for dirt, dust or spider
webs. Clean the lens with a soft, clean cloth.
• Make sure that the cable run is within the
limitations specified in the section ' Cable
Extension Options'
Bright spot in video • Night vision reflects when pointing a camera
when viewing camera to a window. Move the camera to a different
at night location.
Camera Specifications
Image Sensor
Video Format / Pixels
5
Horizontal Resolution
3
IR / Night Vision Range
Minimum Illumination
1
Field of View (diagonal)
Lens / Lens Mount
Environmental Rating
Video Output
Termination
Operating Temperature
Power Requirement
Power Consumption
Weight (with stand)
Weight (w/o stand)
IT'S ALL ON THE WEB!
Product Information
User Manuals
Quick Start Guides
Lorex Technologies Inc.
Copyright © 2010 Lorex Technologies Inc.
As our products are subject to continuous improvement, Lorex reserves the right to modify product
design, specifications and prices, without notice and without incurring any obligation. E&OE
1/4" Color
NTSC: 656(H) x 492 (V)
480 TVL
18 IR LED/55 ft. (17 m)
0 LUX (IR LEDs on)
3 LUX @ F 1.2 (IR LEDs off)
73 Degrees
3.6 mm F1.8/ Fixed
IP 66
1.0 Vpp @ 75ohm
6-Pin DIN
14°F ~ 122°F
(-10°C ~ 50°C)
12V DC ±10%
With IR: Max 280mA
W/O IR: Max 90mA
0.75 lbs. / 0.34 kg
0.45 lbs. / 0.22 kg
www.lorextechnology.com
Specification Sheets
Software Upgrades
Firmware Upgrades

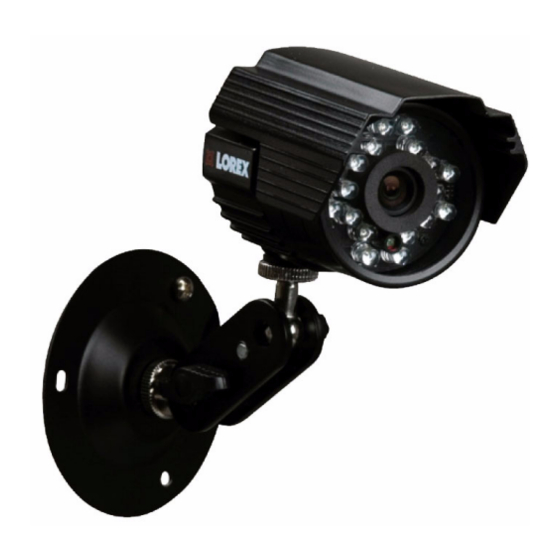

INDOOR / OUTDOOR
COLOR CAMERA
WITH NIGHT VISION AND AUDIO
MODEL: SG7561B
QUICK START GUIDE
English Version 1.0
