3 - Mechanical Integration

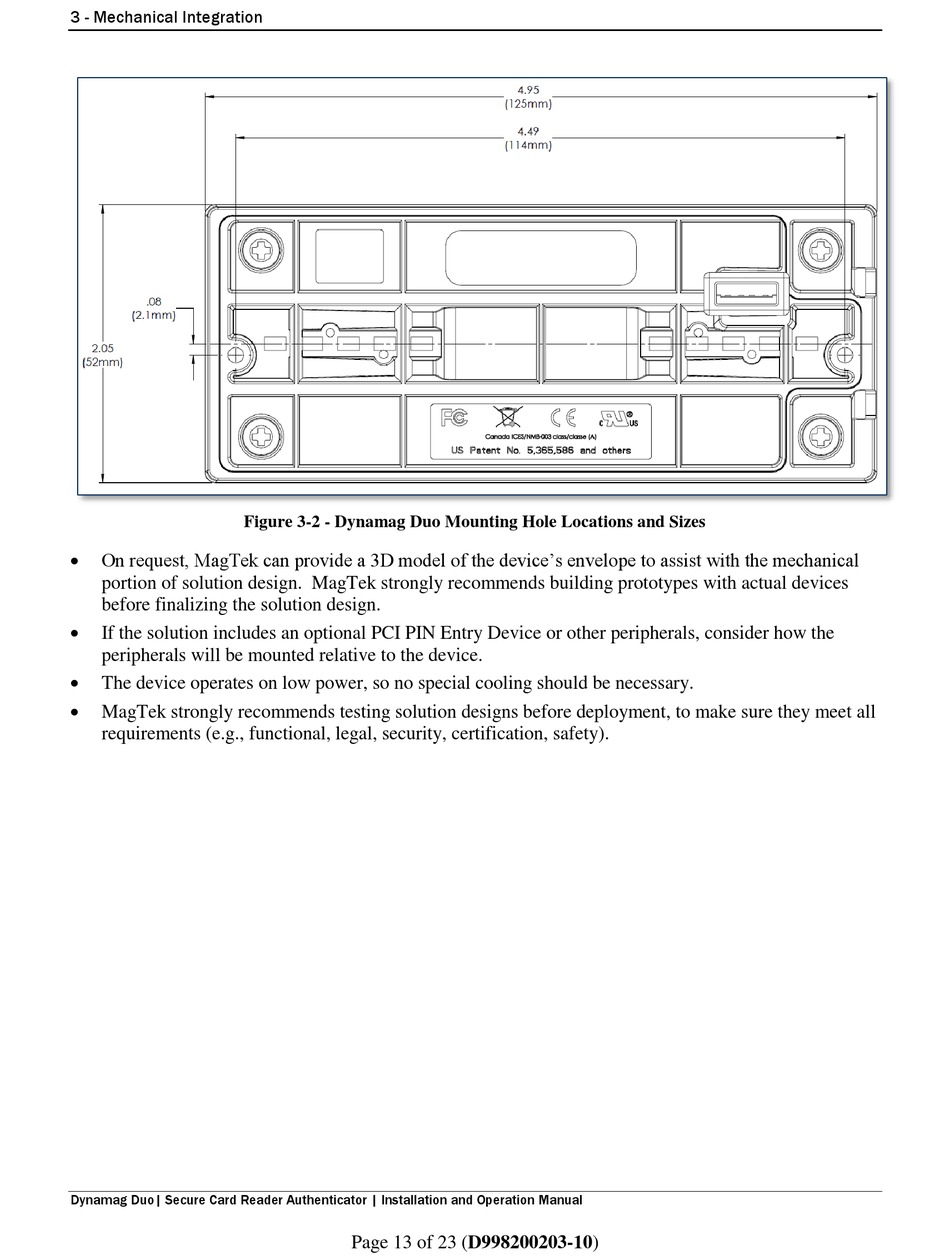

Figure 3-2 - Dynamag Duo Mounting Hole Locations and Sizes

On request, MagTek can provide a 3D model of the device's envelope to assist with the mechanical
portion of solution design. MagTek strongly recommends building prototypes with actual devices
before finalizing the solution design.

If the solution includes an optional PCI PIN Entry Device or other peripherals, consider how the
peripherals will be mounted relative to the device.

The device operates on low power, so no special cooling should be necessary.

MagTek strongly recommends testing solution designs before deployment, to make sure they meet all
requirements (e.g., functional, legal, security, certification, safety).
