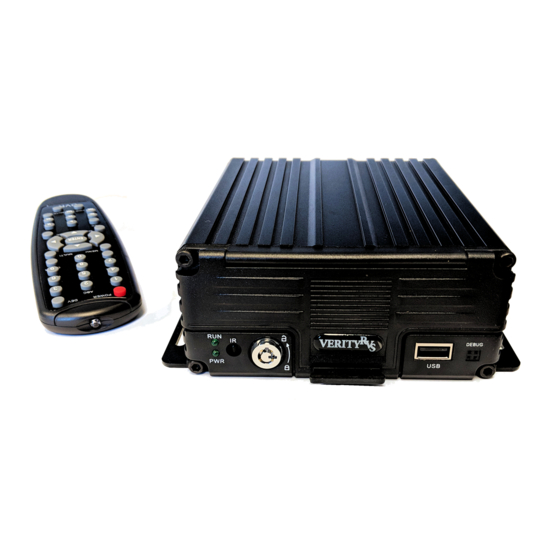

REC02U Mobile DVR
USER MANUAL
Distributed by Verity Rear Vision
Please read this manual completely before operating the SYSTEM
A division of
Component Solution Services, LLC.
56600 Twin Branch Dr.,
Mishawaka, IN 46545
www.verityrvs.com
2018 Verity Rear Vision Systems / All rights reserved / Subject to Change
Advertisement
Related Manuals for Component Solution Services Verity REC02U
Summary of Contents for Component Solution Services Verity REC02U
- Page 1 USER MANUAL Distributed by Verity Rear Vision Please read this manual completely before operating the SYSTEM A division of Component Solution Services, LLC. 56600 Twin Branch Dr., Mishawaka, IN 46545 www.verityrvs.com 2018 Verity Rear Vision Systems / All rights reserved / Subject to Change...
- Page 2 Component Solution Services LLC., offers the Verity Rear Vision Systems® to meet any requirements and price point within the trucking, specialty vehicles, and ® RV industry. Verity Rear Vision Systems is also ® home to the Supreme View line of specialty format systems.
- Page 3 Think safety Read our manual before operating First or installing. Most likely, your system came preinstalled, so the installation section would be for reference. Thank you for your purchase of our Verity Rear Vision Systems®. When installed and used properly, your REC02U is designed to deliver you years of trouble-free operation.
- Page 4 WARNING Do not place heavy objects on cables or cover them with carpet or mats. Do not place cables where they can be crushed in any manner. Our systems are designed as a driving aid. Watching videos, broadcasts, DVDs and/or any images other than intended driving assistance cameras is prohibited.
-
Page 5: System Features
SYSTEM FEATURES The REC02U is a DVR designed for Analog HD vehicle monitoring. It has a built-in high-performance image processor with advanced H.264 video compression technology. This unit it provides AHD video recording, storage and playback solution. Options could include: built-in 3G/4G/Wi-Fi module for remote monitoring, analysis and management. - Page 6 Operating interface GUI, support mouse Password security User password/Admin password Audio & Video Video standard NTSC default PAL Video compression H.264 Image resolution 720P /960H/D1/CIF Playback quality 720P /960H/D1/CIF Compound mode 4ch 720P/4ch 960H/2ch 720P+2ch 960H Decoding ability 1ch 720P real time Recording quality 6 optional levels Image display Single/QUAD display optional...
-
Page 7: System Overview
SYSTEM OVERVIEW Important: Make sure remote is facing the front of the DVR during remote operations ENTER / SELECT ESCAPE UP / DOWN RIGHT / LEFT... -
Page 8: User Login
USER LOGIN Click the menu button on the remote; the login interface will appear. Please input your UserName, Password, and select your language, click “OK” to login the menu. (The default UserName is admin, without a password.) If you have not set these values you can use the right arrow button to pass through these. - Page 9 MENUS MAIN MENU Basic: Date, Time, Vehicle information, Preview setting, Ignition time (activation) on/off, System information Network: Optional settings for DVRs with WI-FI and 3G/4G modes and Netstate Record: Model, Mainstream, Sub stream, Record ODS, Image, Storage, IPC (i.e., Internet Protocol camera) Advanced: Some features optional.
- Page 10 BASICS Time and Date Settings. Be sure to hit “OK” when done...
- Page 11 Vehicle Information helps to match vehicle to recordings that have been saved. Preview is used to set some of the Preview and Record settings. Note: the second option in preview tab is the mode. This relates to camera being shown on the screen and the configuration.
- Page 12 Video Output The first tab that appears sets the placement of the video on the screen. The second tab, “Hue”, sets the brightness, contrast, hue, and saturation. On this tab there is a restore button on the lower left that only restores these settings and not the entire DVR settings.
- Page 13 System Setup has 2 very important settings. The first being the language. The second being the Output format which needs to be on NTSC not PAL. This is adjusted before shipment to the customer. System Information has Factory set items and has no setting in it. The next main menu setting is “Network”...
- Page 14 Record is a sub-menu in the main menu. Recording setup includes Mode, Main Stream, Sub Stream, Recording OSD, Image, and Mirror recording setting. Record contains: Mode, RecDeploy, Mainstream, Substream, In this Storage, RecordODS, Image, MirrorSet, and IPC. manual only MODE and RecDeploy will apply to operations.
- Page 15 MODE Signal type will be set to NTSC and should stay that way. Video channel is to be set to number of cameras being used. System type set to 960. RecDeploy Sets which cameras are to be recorded...
- Page 16 Advanced setting This menu is used for User/Management, monitoring Driving Habits, UART port setting, Temperature Sensor, Reverse Lines setting, and displaying the text received from the server. Only the bolded items apply. User Management You can add, modify, delete users, and modify the login username and privileges.
- Page 17 LOG displays the system’s running log according to the required Log Type and Time Range. Disk Management: used to check the status of the disk. need to format all disks used in this menu option. There is a supplement explaining this process in a step by step instruction sheets.
- Page 18 The last two menu options Alarm and Wizard address Wi-Fi and 3D/4D settings...
- Page 19 Verity Rear Vision Systems A division of COMPONENT SOLUTION SERVICES (CSS) LIMITED ONE (1) YEAR WARRANTY 1. CSS products’ warranties are not transferable. The warranties apply to the retail consumer for one (1) year and covers against defects in material and workmanship.
- Page 20 Note: if you are a fire/rescue customer in need of tech support after hours or on weekends, leave a message and a technician will return your call as soon as one becomes available. a division of Component Solution Services 56600 Twin Branch Drive Mishawaka, IN 46545 574-807-6002...
