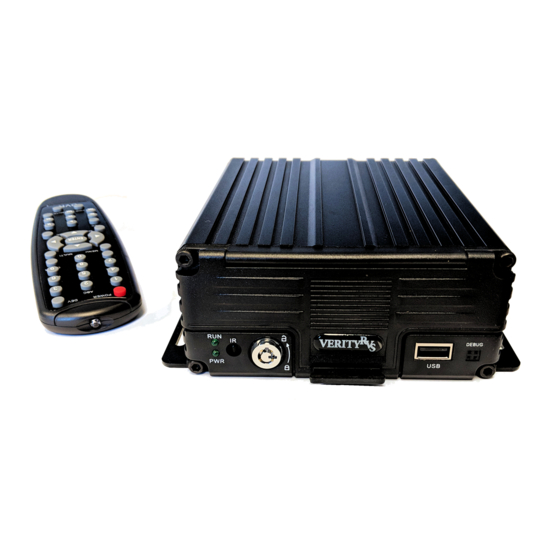

REC02U Mobile DVR
INSTALL MANUAL
Distributed by Verity Rear Vision
Please read this manual completely before operating the SYSTEM
A division of
Component Solution Services, LLC.
56600 Twin Branch Dr.,
Mishawaka, IN 46545
www.verityrvs.com
2018 Verity Rear Vision Systems / All rights reserved / Subject to Change
Advertisement
Related Manuals for Component Solution Services Verity REC02U
Summary of Contents for Component Solution Services Verity REC02U
- Page 1 INSTALL MANUAL Distributed by Verity Rear Vision Please read this manual completely before operating the SYSTEM A division of Component Solution Services, LLC. 56600 Twin Branch Dr., Mishawaka, IN 46545 www.verityrvs.com 2018 Verity Rear Vision Systems / All rights reserved / Subject to Change...
- Page 3 Component Solution Services LLC., offers the Verity Rear Vision Systems® to meet any requirements and price point within the trucking, specialty vehicles, and ® RV industry. Verity Rear Vision Systems is also ® home to the Supreme View line of specialty format systems.
- Page 4 Think safety Read our manual before operating First or installing. Most likely, your system came preinstalled, so the installation section would be for reference. Thank you for your purchase of our Verity Rear Vision Systems®. When installed and used properly, your REC02U is designed to deliver you years of trouble-free operation.
- Page 5 WARNING Do not place heavy objects on cables or cover them with carpet or mats. Do not place cables where they can be crushed in any manner. Our systems are designed as a driving aid. Watching videos, broadcasts, DVDs and/or any images other than intended driving assistance cameras is prohibited.
-
Page 6: System Features
SYSTEM FEATURES Description Picture Quantity MDVR Power cable I/O cable AV cable Remote control DVR Key IR Extension cable (Optional) - Page 7 IMPORTANT Important: Make sure remote is facing the front of the DVR during remote operations. There should be no obstructions.
- Page 8 REMOTE The batteries for the remote are not included or installed. 2 “AAA” batteries are needed. ENTER / SELECT ESCAPE UP / DOWN RIGHT / LEFT PLEASE NOTE: DVRs have been setup for 1- camera systems to be used with Verity SM07J & SM05J systems.
-
Page 9: User Login
USER LOGIN Click the menu button on the remote; the login interface will appear. Please input your UserName, Password, and select your language, click “OK” to login the menu. (The default UserName is admin, without Password). If you have not set these values you can use the right arrow button to pass through these. - Page 10 Pin Out Definition Pin out for Power, I/O, AV Input & Output. Power interface I/O Interface definition Color Definition Color Definition Blue Alarm output Black Ground Alarm input 2 Purple Purple Alarm input 1 (Positive) Alarm input 4 Purple Purple Alarm input 3 (Positive) 5V Output...
- Page 11 HDD installation Insert the key into the hole of the lock on the front panel and switch it to OPEN status you will see the HDD 2.5” drive slot. HDD Installation Remove retaining screws for the hard disk.
- Page 12 Insert the hard drive into the bracket as shown below and secure the 4 fixed screws. (These screws were shipped with the DVR and are in the accessory box.) Insert the mounting bracket of the hard disk into the case and lock the fixed screws on both sides.
- Page 13 Power Connection Please connect the power as indicated. Positive pole (RED) connects with power input 10-36V DC, ACC ignition (YELLOW) connects with 5-36V DC. Negative to proper grounding post 12 v Accessory Hot 12 v Hot Chassis Ground The yellow ignition wire is used to detect the ignition signal. We strongly suggest you connect it with the “RUN”...
- Page 14 Verity Rear Vision Systems A division of COMPONENT SOLUTION SERVICES (CSS) LIMITED ONE (1) YEAR WARRANTY 1. CSS products’ warranties are not transferable. The warranties apply to the retail consumer for one (1) year and covers against defects in material and workmanship.
- Page 16 Note: if you are a fire/rescue customer in need of tech support after hours or on weekends, leave a message and a technician will return your call as soon as one becomes available. a division of Component Solution Services 56600 Twin Branch Drive Mishawaka, IN 46545 574-807-6002...
