Vimar Eikon 20594.0 Manual

Eikon Arké
20594.0 19594.0
19594

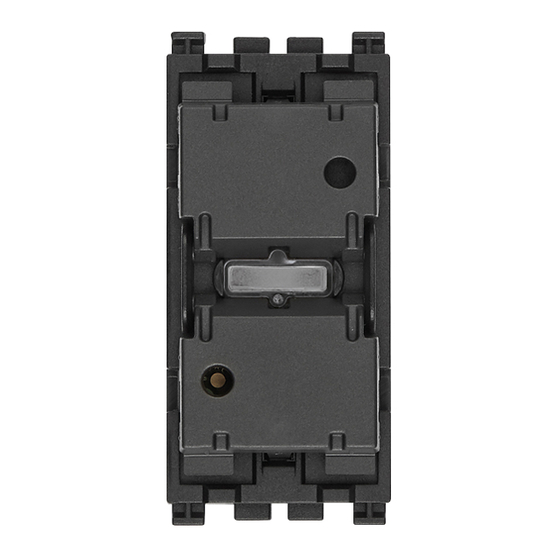

20594.0-19594.0-14594.0: VIEW Wireless electronic control device for 1 roller
shutter with slat orientation and change-over relay output for cosφ 0.6 motor
2 A 100-240 V~ 50/60 Hz, local or remote control, double IoT technology on
Bluetooth ® technology 5.0 standard for the creation of VIEW Wireless mesh
system and on Zigbee 3.0 standard, 1 input for external push button to recall
a scenario, favourite position recall function, RGB LED visible in darkness with
brightness control, 100-240 V 50/60 Hz power supply, to be completed with two
interchangeable half-button caps: 1 module.
19594-16494-14594: As above, complete with buttons.
The device makes it possible to control the roller shutter/slat using the on-board keys
and via a wireless connection. The device has the possibility of being controlled with two
different radio standards (exclusive to one another): Bluetooth mesh (default) or Zigbee
(which can be set via the VIEW Wireless App). The Bluetooth mesh network implies the
presence of gateway 20597-19597-16497-14597 while for the dialogue via Zigbee a
Zigbee gateway is required (such as Amazon Echo Plus, Echo Show or Echo Studio).
It is equipped with an output with 2 one-position stable relays with interlocked operation,
in other words with mutually exclusive activation of the relays with a minimum interlocking
time. In the event of a mains power supply failure, the relays both remain open.
The front keys of the device only control the on-board roller shutter actuator:
- Short press: if the roller shutter is not moving, the slat rotates; if the roller shutter is
moving, it stops.
- Long press: the upper key raises the roller shutter while the lower key lowers it.
- Double pressing of either of the two keys: recalling of favourite position (this is saved
via the VIEW Wireless App).

FEATURES.

• Rated supply voltage: 100-240 V~, 50/60 Hz.
• Dissipated power: 0.55 W
• RF transmission power: < 100mW (20 dBm)
• Frequency range: 2400-2483.5 MHz
• Terminals:
- 2 terminals (L and N) for line and neutral
- 1 terminal (P) for connection to the remote wired control (for instance art. 20008-
19008-16080-14008).
- 2 terminals ( and ) for the roller shutter output
• 2 front keys that are used both to control the load and as configuration push buttons.
• RGB LED indicating the movement of the roller shutter (which can be set from the
VIEW Wireless App) and the configuration status (flashing blue)
• Operating temperature: -10 ÷ +40 °C (indoor)
• Protection degree: IP20
• Configuration from VIEW Wireless App for Bluetooth technology system and Amazon
App for Zigbee technology.
• Controllable from VIEW App.

CONTROLLABLE LOADS.

Maximum loads
100 V~
240 V~

OPERATION IN Bluetooth technology MODE.

The device operates by default in Bluetooth technology mode and this standard makes
it possible to:
- recall a scenario using the traditional push button connected to the device;
- associate the radio control 03925 which can be configured to control the actuator
on-board or to recall a scenario;
- control the QUID system devices.
Through the use of gateway 20597-19597-16497-14597 the functions can be managed
locally or remotely via the VIEW App, and the control is also available via the voice assis-
tants Alexa, Google Assistant and Siri.
The device is also compatible with Homekit.

Settings.

The VIEW Wireless App can be used to set the following parameters:
- RGB LED for backlighting: colour can be selected from a default list (default: amber for
Eikon, blue for Arké and green for Plana).
- LED brightness: off, low, medium, high for roller shutter in motion (default: high) and for
roller shutter not in motion (default: off).
- Actuator: with or without slat (default: with slat).
- Roller shutter activation time (default: 180 s).
- Slat rotation time (default: 5 s).
- Favourite position saving (default: 50% roller shutter, 0% slats i.e. open).
20594.0 EN 01 2007
Idea Plana
16494 14594.0
14594
Roller shutter motor
2 A cos ø 0.6
2 A cos ø 0.6
- Scenario activation delay time (default: 0 s).
- Compatibility with QUID system (default: not active).

Reset procedure

To perform the reset and return the device to its factory settings, during the first 5 min-
utes that the device is powered, press both front keys for 30 s until the white LED flashes.

CONFIGURATION.

For configuration operations on the system in Bluetooth technology mode please
see the instruction manual for the VIEW Wireless App.

OPERATION IN Zigbee technology MODE.

For operation in Zigbee technology mode, the device should be associated with the
Amazon voice assistant which supports this standard, for instance Amazon Echo Plus,
Echo Show or Echo Studio, and the following parameters can then be set on the front keys:
- Selection between roller shutter or roller shutter+slat (default roller shutter+slat).
- Roller shutter activation time (default: 180 s)
- Total slat rotation time (default 2 s)
For the device to be associated with Amazon Echo Plus, Echo Show or Echo Studio, it
needs to be converted from Bluetooth to Zigbee using the VIEW Wireless App, then set
it to pairing mode and subsequently follow the procedure provided by the voice assistant.
The Amazon Alexa App will signal this procedure is complete accompanied by three
green flashes of the device LED.

Pairing mode activation.

• Immediately after conversion to Zigbee technology (or the software update), the device
will automatically go into pairing mode so that it can be recognised by the Amazon
device within 5 minutes.
• If the device is not in pairing mode, you can start this setting by cutting off the power
supply to the device and restoring it after a few seconds.
• Pairing mode lasts 5 minutes, after which it is automatically disabled.

Manual sequence for parameter setting.

1) During the first 5 minutes after the device has been powered (already associated with
Alexa), press both front keys for 15 s; this way, you will enter activation time of settings
phase (the LED flashes green while the roller shutter closes, lasting for 180 s or until
the  button is pressed). At this stage the LED is lit in green permanently and for 2
minutes pending the pressing of the  key; then press the  for a prolonged time
to raise the roller shutter. During the raising process the LED flashes green and to
stop it briefly press the  key. The time that passes between the long press and the
short press is the roller shutter raising time, which will be saved by the device as the
handling time (the LED lights up amber).
2) At this stage the total slat rotation time configuration begins. Press the  key and
the roller shutter begins to close; during this phase the LED flashes amber; when the
roller shutter is closed the LED remains lit in amber permanently and each short press
of the  key increases by 200 ms the slat rotation time and each press of the  key
decreases it by 200 ms. Each press will turn the amber LED off and back on again
and will move the slats.
3) Press the  and  keys at the same time to store the desired rotation time and the
LED will flash amber quickly three times.
N.B. If at the beginning of the slat handling time configuration the key is not pressed
shortly and the confirmation is given immediately by pressing both keys at the same
time, the slats will be excluded from operation. So in practice, when the roller shutter is
in motion, pressing a key briefly will stop it whereas if the roller shutter is not in motion
pressing the key briefly will not give rise to any movement.

INSTALLATION RULES.

• Installation must be carried out by qualified persons in compliance with the current
regulations regarding the installation of electrical equipment in the country where the
products are installed.
• The device must be completed with interchangeable keys and installed in flush mounting
boxes or surface mounting boxes with Eikon, Arkè, Idea and Plana supports and cover
plates.
• The relay output power circuit must be protected against overloads by installing a
device, fuse or automatic 1-way switch, with a rated current not exceeding 10 A.
• Installation must be carried out with the system switched off. Install the keys onto the
switch mechanism before powering up the system.

REGULATORY COMPLIANCE.

RED Directive. RoHS directive.
Standards EN 60669-2-1, EN 301 489-17, EN 300 328, EN 62479, EN 50581.
Vimar SpA declares that the radio equipment complies with Directive 2014/53/EU. The
full text of the EU declaration of conformity is on the product sheet available on the
following website: www.vimar.com.
