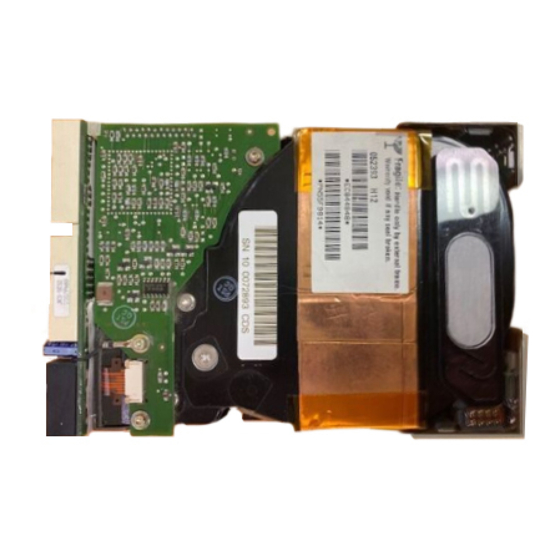

FEATURES
Industry-standard interface: ANSI/SCSI-2
Integrated controller
1,004 MB formatted capacity (512 & 520 bytes/sector) (models H12 and L12)
Logical block addressing
Implied seeks
SCSI disconnect and reconnect capability
SCSI bus parity
1:1 interleave
High performance (H12 & H11) and low power (L12 & L11) models available
(0,4/4) 8/9 rate encoding
Media data transfer rate: 3 MB/S
SCSI data transfer rate: up to 10 MB/S (synchronous)
256K byte dual-ported data buffer
Read-ahead caching
Multi-segmented data buffer
Scatter/Gather function support
Tagged and Untagged command queuing (selectable)
Automatic sector reallocation (selectable)
Error logging
Variable logical block lengths (256-6000 bytes with exceptions)
Down-loadable SCSI firmware
Automatic retry and data correction in read errors
In-line alternative sector assignment for high performance
Sector reassignment without reformat
Predictive Failure Analysis
PERFORMANCE
Data transfer rate
Buffer to/
from media
Host to buffer
Host from buffer
Rotational Speed
Average latency
Seek time
Single cylinder
(all models)
0663 Model L&H
IBM OEM StorageProducts
3 MB/S (instantaneous)
up to 5 MB/S (synchronous)
up to 5 MB/S (synchronous)
4316 RPM
6.95 mS
Read
Write
0.6 mS
2.5 mS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 0663 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IBM 0663 Series

Summary of Contents for IBM 0663 Series

  • Page 1 0663 Model L&H IBM OEM StorageProducts FEATURES Industry-standard interface: ANSI/SCSI-2 Integrated controller 1,004 MB formatted capacity (512 & 520 bytes/sector) (models H12 and L12) Logical block addressing Implied seeks SCSI disconnect and reconnect capability SCSI bus parity 1:1 interleave High performance (H12 & H11) and low power (L12 & L11) models available...

  • Page 2: Jumper Settings

    Average (L11, L12) 10.6 mS 12.6 mS (weighted) (H11, H12) 9.4 mS 11.4 mS Full stroke (L11, L12) 20.0 mS 22.0 mS (H11, H12) 18.5 mS 20.5 mS ELECTRICAL CONNECTOR LOCATIONS SCSI Pin 1 Power Pin 1 Options Jumper Block Electrical Connectors (view from back of Disk Drive) JUMPER SETTINGS The jumper block shown above is used to select the SCSI device ID, to control the spindle motor...
  • Page 3 Figure 1 Option Block With the auto start jumper in place the motor spins up when power is applied. With the auto start jumper removed the motor spins up when the drive is issued a Start Unit command. Note: During the power up sequence the option pin is interrogated. If it is grounded the pin remains an input.

  • Page 4: Data Organization

    Page 8 MF (Multiplication Factor) RCD (Read Cache Disable) Demand Read Retention Priority Write Retention Priority Disable Pre-fetch Transfer Length Maximum Pre-fetch Maximum Pre-fetch Ceiling Number of Cache Segments Page A QErr (Queue Error Management) DQue (Disable Queuing) DATA ORGANIZATION Capacity Model H12 &...

  • Page 5: Operating Environment

    H12 & L12 H11 & L11 User bytes/sector 256 - 750 User bytes/logical block 256 - 6000 with exceptions (increments in bytes) = 1 256 - 750 752 - 1500 1504 - 3000 3008 - 6000 Band 1 user cylinders 1366 1641 spares/cylinder H12 &...
  • Page 6 (-304 to 12,192 meters) Temperature: Operating ambient 41 to 131 degrees F (5 to 55 degrees C) Operating casting 41 to 131 degrees F (5 to 60 degrees C) temperature Operating casting Not to exceed 3.6 degrees F (2 degrees C) temperature delta (see note below) Shipping -40 to 149 degrees F (-40 to 65 degrees C)

  • Page 7: Scsi Adapters

    The drive should be verified in the mode it will be attached to the system. It cannot be assumed that a drive which attaches as an additional SCSI device on a system providing only additional data storage will have no problems when attached as the only/boot drive.
  • Page 8 No modifications to the drive are required. However it is necessary to modify the list of device types on the table of known drives contained in the 'usr/sys/data/scsi-data,c' system file as follows: Change first line from '/*UNKNOWN DISK*/' TO '/*IBM OEM*/'. Following this change, the operating system kernel must be rebuilt (recompiled).

  • Page 9: Troubleshooting

    Configuration Required: Alter MODE SELECT Page 0, Byte 2 to '40' Alter MODE SELECT Page 0, Byte 3 to '80' Platform HEWLETT PACKARD HP9000-710 Operating System(s) Proprietary (Supplied with platform) Configuration Required: Connect 'OPTION PIN' on drive jumper block to ground. Platform APPLESYSTEMS Operating System(s) Proprietary (supplied with platform)
  • Page 10 phased out in favor of the functionally equivalent 7 disk version PN 55F9813. Current users of the 8 disk drive should evaluate the 7 disk version to ensure compatibility with their application(s) before receiving quantity shipments. New integrators should evaluate the 7 disk version. NB: This drive is not suitable for attachment to 'Apple' systems as it does not support the 'Blind Write' and 'Unit Attention Disable' features used by...

  • Page 11: Electrical Interface Specifications

    Note 2: The current at start is the total 12 volt current required (ie the motor start current, module current and voice coil retract current. ELECTRICAL INTERFACE SPECIFICATIONS The IBM OEM 0663 Disk Drive uses single-ended drivers and receivers that permit cable lengths of up to 6 meters (19.68 feet). Connectors...

  • Page 12: Electromagnetic Compatibility

    For a single-ended cable, a 50-conductor flat cable or a 25 twisted pair cable can be used, with a maximum length of 6.0 meters and a stub length not to exceed 0.1 meters. This file has a maximum internal stub length of 0.072 meters on all SCSI signals except -RST; the -RST signal has an internal stub length of 0.096 meters.
  • Page 13 This section detailed the mechanical specifications of the IBM OEM 0663 disk drive. Weight Approximately 2.2 pounds (1.0 kilograms) Dimensions U.S. S.I. Metric Height 1.63 in 41.3 mm Width 4.00 in 101.6 mm Depth* 5.75 in 146.0 mm * The connectors exceed the depth dimension by 6.37 mm...

  • Page 14: Temperature Measurements

    Note: Screws must not penetrate more than 3.8 mm TEMPERATURE MEASUREMENTS Temperature measurements should be made at the points shown Figure 3 to ensure that the maximum values are not exceeded under any circumstances. Forced air cooling may be required in order to achieve this.

  • Page 15: Vibration And Shock

    The file's mounting frame is electrically isolated from the file's disk enclosure. The disk enclosure is not at ground potential. Therefore any user mounting scheme must not result in the disk enclosure being shorted to ground. To prevent external electrical noise form interfering with the file's performance, the file's mounting frame may be electrically isolated from the system mounting frame.
  • Page 16 This product data does not constitute a warranty. Questions regarding IBM's warranty terms or methodology used to derive this data should be referred to your IBM OEM representative. Data subject to change without notice.
